Inner Rail

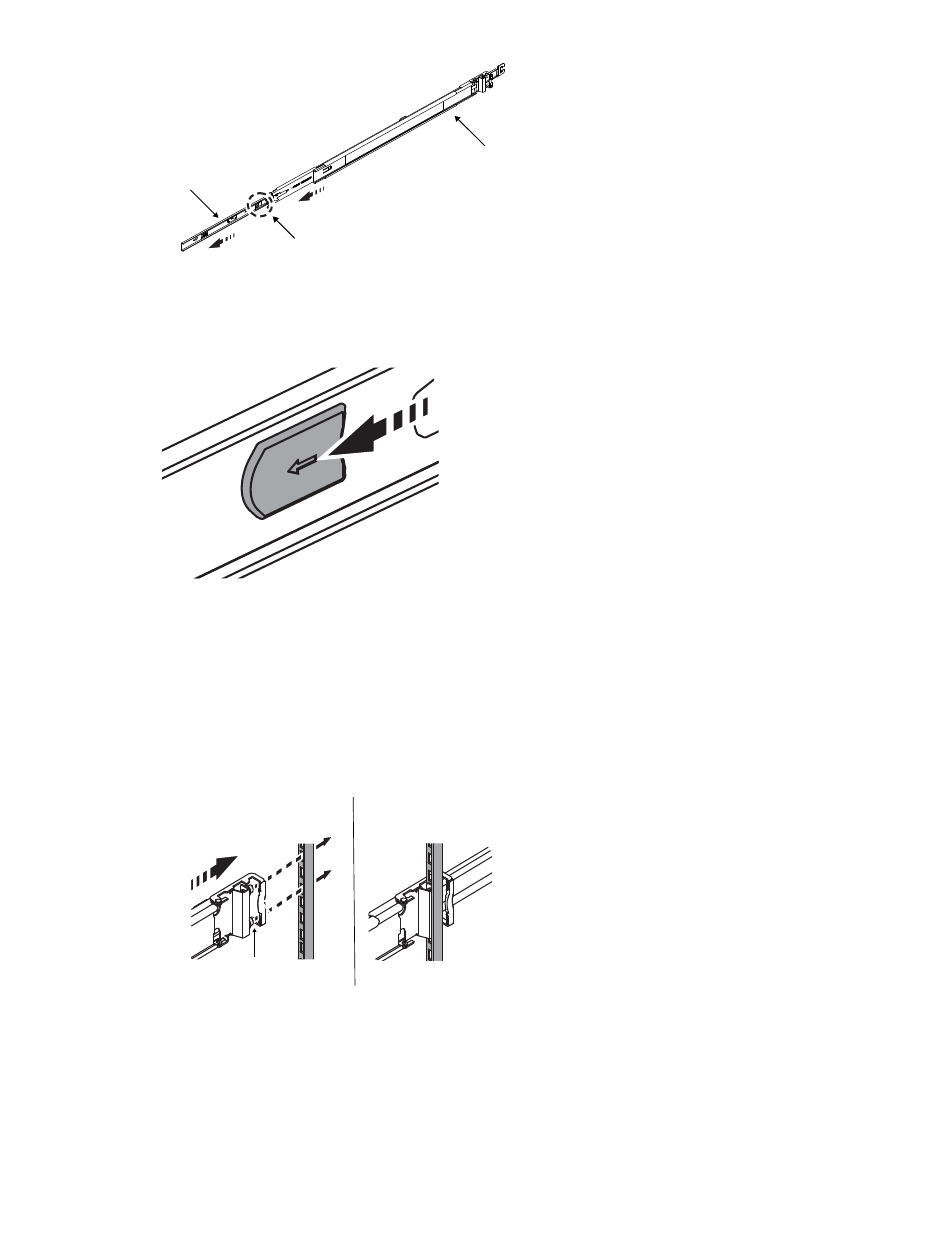

Figure 21. Removal of the inner rail
b) Pull the release tab on the inner rail forward as shown in the following figure.
Figure 22. Release tab
c) Remove the inner rail from the left outer rail and set aside.
5. Repeat the removal steps of inner rail from left outer rail to remove the other inner rail from the right
outer rail.
6. Install the left outer rail on the rack post as follows:
a) Align the left rear bracket mounting screws with the appropriate rear rack post holes as shown in
the following figure.
Before
Figure 23. Installation of left rear bracket
b) Press and hold the release catch and push the bracket into place so that the mounting screws can
be installed securely into the rack post holes.
c) Release the catch to secure the rail to the post once the screws are fully inserted.
d) Align the left front bracket mounting screws with the appropriate rack post holes in the front left
rack post. Ensure that the rail is level before you continue.
50 IBM Elastic Storage System 3200: Hardware Planning and Installation Guide
Click
After
Release
Catch
Outer Rail
Release Tab
