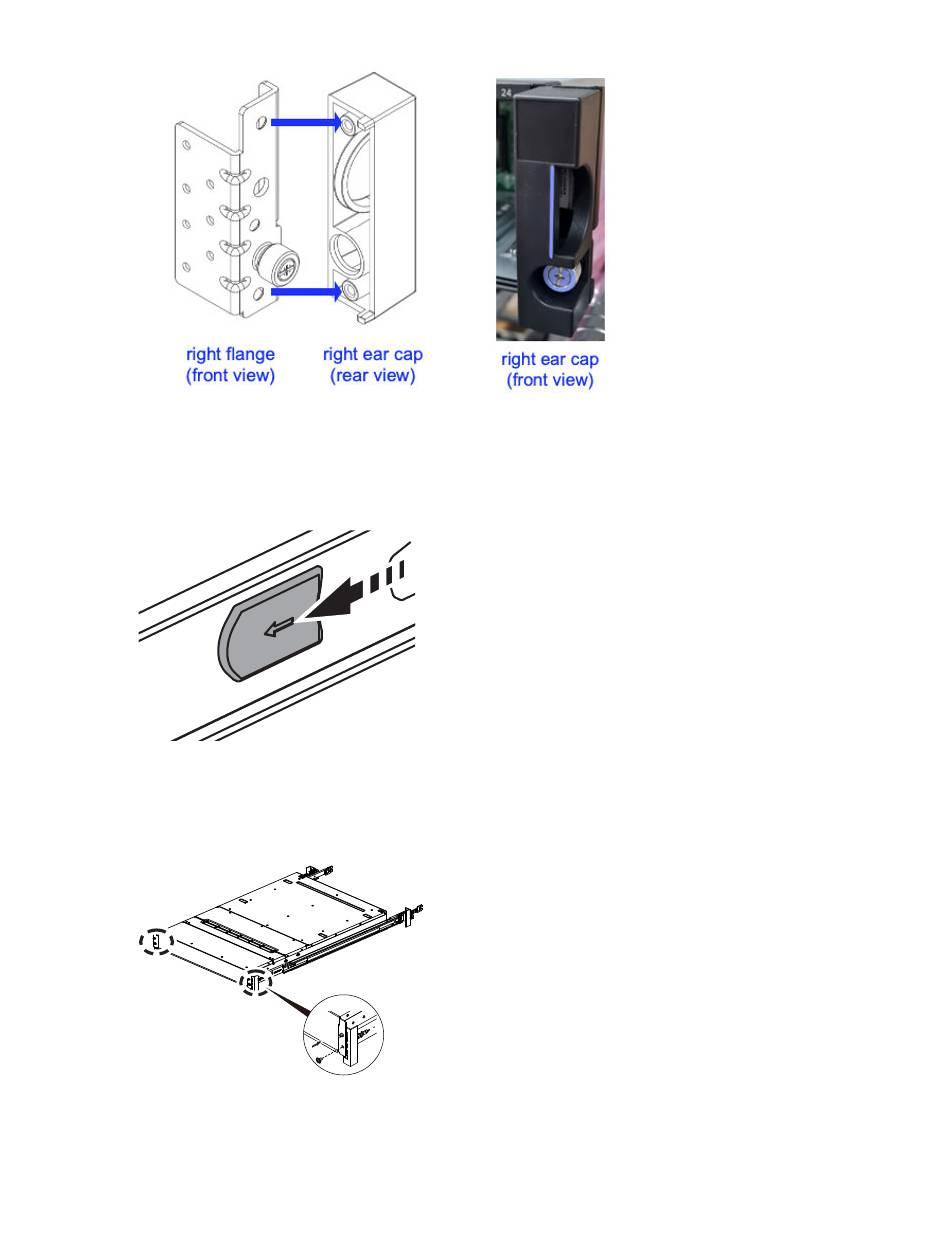

Figure 35. Replacing right ear cap
5. Push the enclosure into the rack while pulling the outer rail until the outer and the inner rails lock into
the serviceable position. This is accompanied by an audible click.
6. Press the release tab and push the enclosure fully into the rack.
Figure 36. Release tab
7. Secure the enclosure on the left and right front of the enclosure to the left and right front rack posts by
using the two M5 X 9 shipping screws as shown in the following figure.
Figure 37. Securing the enclosure
At this point, the rails and IBM Elastic Storage System 3200 enclosure are installed. The enclosure is
mounted on the rail with all the components that were removed, reinserted into the slots.
Release Tab
Chapter 4. Installing 55
