Installing cable management assembly (IBM SSR task)

The cable management assembly (CMA) aids in better routing and securing of the system's cabling. The
CMA enables the storage enclosure easily slid in and out of the rack for drive installation or replacement
without disconnecting the cables from the power modules or server canisters. A properly installed
CMA prevents cable tangling and interference with other components in the rack, allowing for smooth
operation of the rails.
Note: If the CMA is preinstalled, the CMA would be secured by a strap to the cross bar during
transportation to avoid damage. This strap must be removed before installation.
Remove zip
tie before use

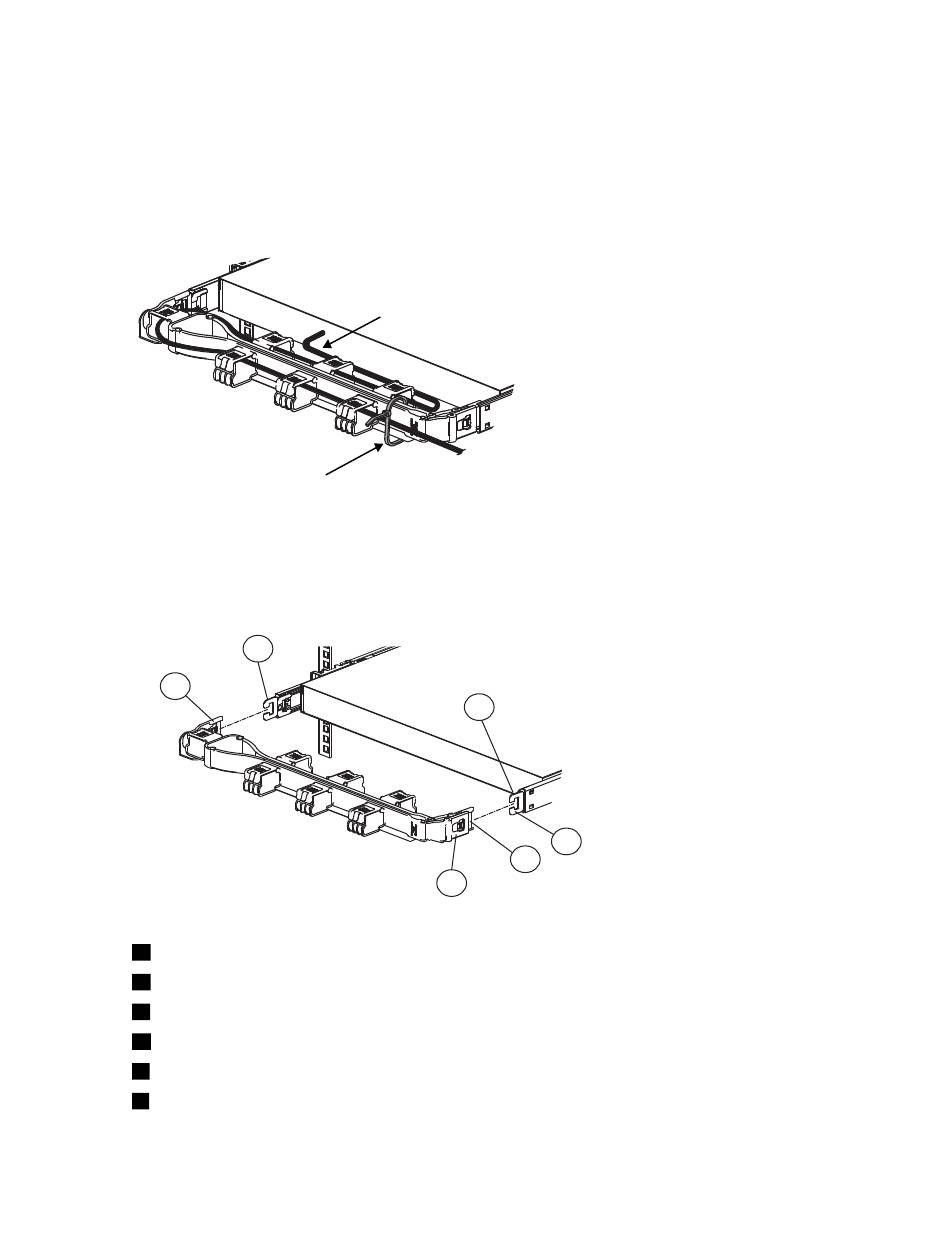

Figure 38. Cable management assembly
1. Verify the direction of the CMA arm as shown in the following figure.
E
A - Inner CMA arm connector
B - Inner rail connector
C - Outer CMA arm connector
D - Outer rail connector
E - CMA body connector
F - CMA body rail connector
Figure 39. Cable management assembly installation
2. To change the direction of the arm for use on the opposite side of the enclosure, press the release
buttons on the outside of the CMA elbow and rotate the arm 180 degrees.
56 IBM Elastic Storage System 3200: Hardware Planning and Installation Guide
Cable
F
B
D
A
C
