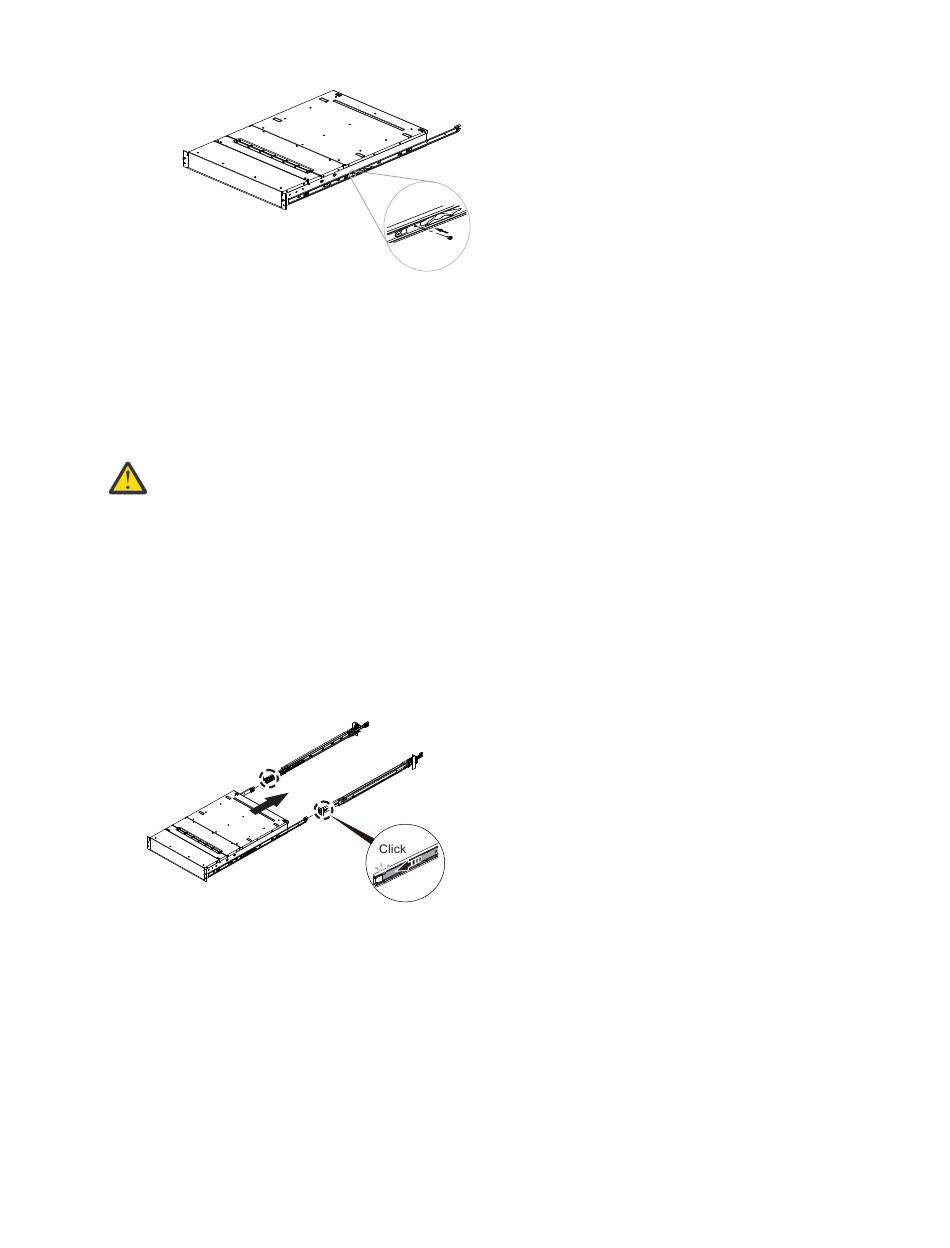

Figure 30. Securing the rail
d) Repeat the installation steps of inner rail on right side of the enclosure to secure the other inner rail
on left side of the enclosure.
Installing enclosures (IBM SSR task)
Following your enclosure location plan, install the IBM Elastic Storage System 3200 system.
CAUTION:
• To lift an IBM Elastic Storage System 3200 system requires at least two people. To reduce the
enclosure weight to permit one person to safely lift the enclosure, you must temporarily remove
the server canisters, power modules, and all drives from the enclosure.
• Install an IBM Elastic Storage System 3200 system only onto the IBM Elastic Storage System
3200 system rails supplied with the enclosure.
• Load the rack from the bottom up to ensure rack stability. Empty the rack from the top down.
To install an enclosure, complete the following steps:
1. Align the enclosure both horizontally and square to the rails, while facing the front of the IBM Elastic
Storage System 3200 as shown in the following figure.
Figure 31. Alignment of the enclosure
2. Ensure that the ball bearing retainers are at the front of the left and right cabinet member rails. This is
followed by an audible click.
3. Insert each inner rail into the rack cabinet as shown in the following figure.
Chapter 4. Installing 53
