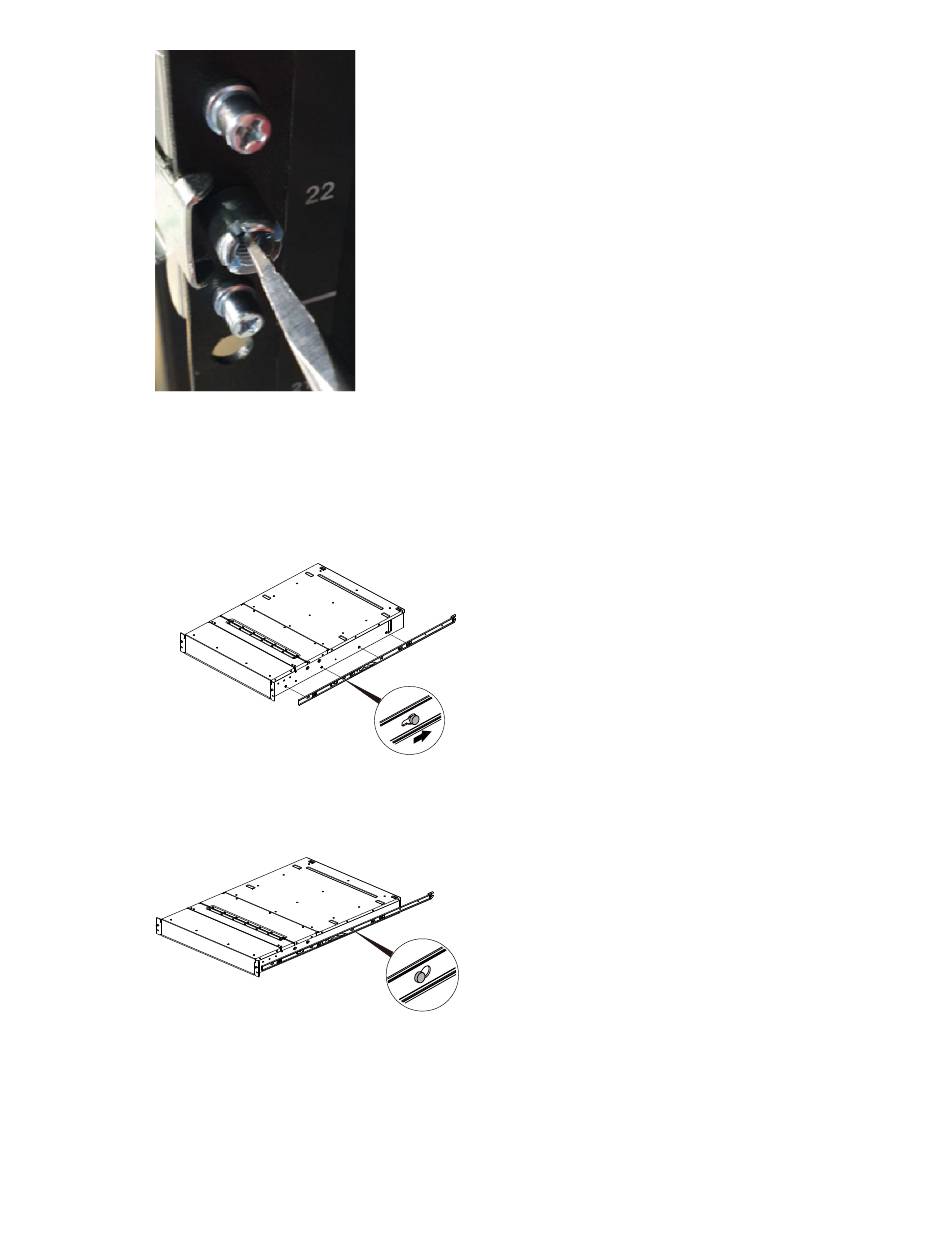

Figure 27. Securing the front of the rails
7. Repeat the installation steps of left outer rail to install the right outer rail on the rack post.
8. Install the inner rail on the right side of the enclosure as follows:
a) Align the large section of the keyholes on the right inner rail with the standoffs on the right side of
the chassis. See the following figure.
Front
Figure 28. Standoffs aligned with the keyholes
b) Slide the rail toward the back of the enclosure to secure the standoff on the smaller section of the
keyhole to lock the rail in place, which is accompanied by an audible click. See the following figure.
Figure 29. Standoffs secured over the keyholes
c) Secure the rail in place by using one of the M4 screws in the hole just behind the release tab. See
the following figure.
52 IBM Elastic Storage System 3200: Hardware Planning and Installation Guide
Rear
