Networking details

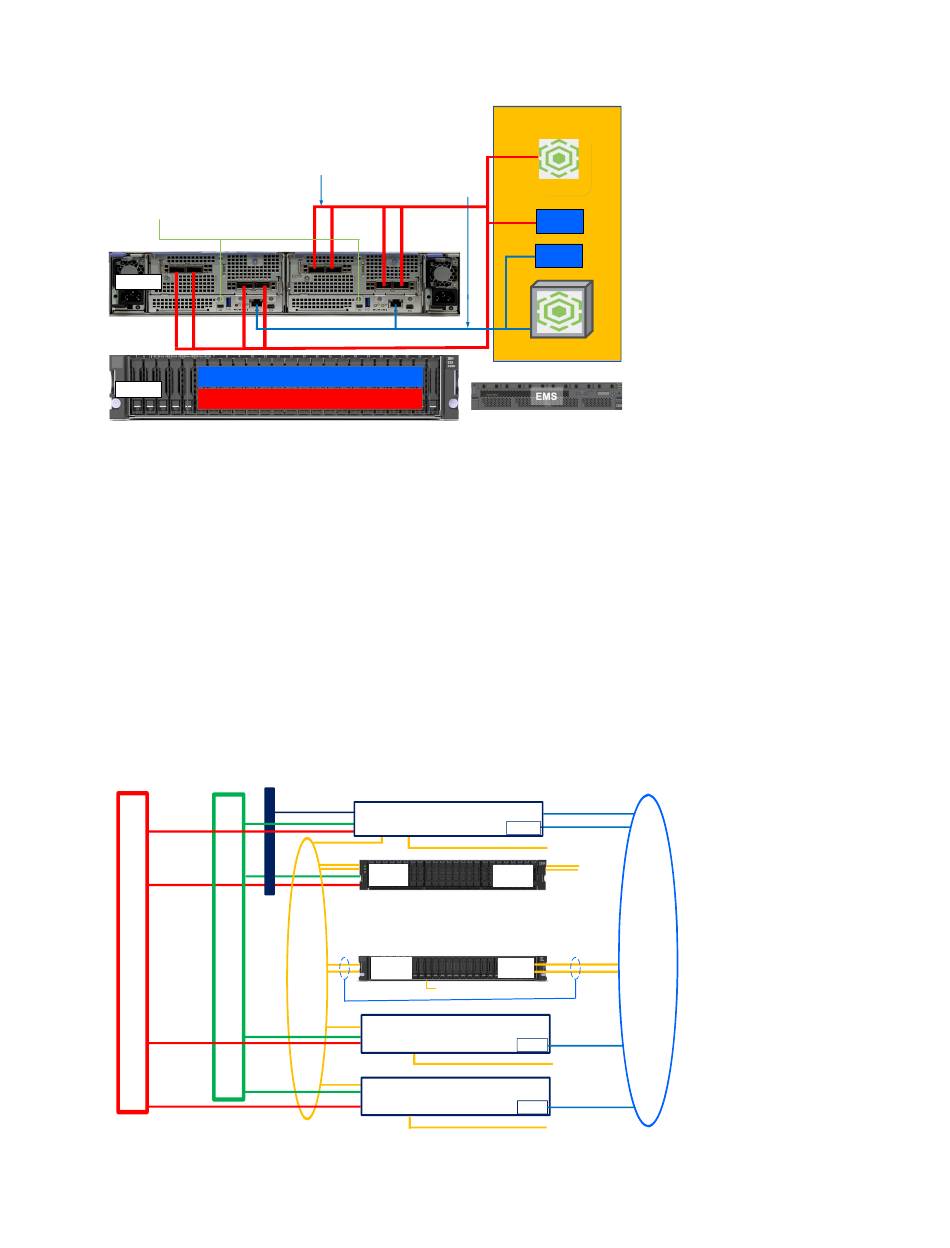

The networking details of IBM Elastic Storage System 3200 are shown in the following figure:
High Speed Network
(100GbE/200Gb HDR)
SSR Access
Serial Console
RearV iew
Rear View
Scale 5.1.1.0
Front View
RHEL 8.2
Figure 3. IBM Elastic Storage System 3200 Networking
The IBM Elastic Storage System 3200 has two adapters per server canister that consists of the following
features:
• AJZL: CX-6 InfiniBand/VPI in PCIe form factor
– InfiniBand - HDR200 200 Gb / HDR100 100 Gb / EDR 100 Gb
– Ethernet - 100 GbE
• AJZN: CX-6 DX in PCIe form factor (Ethernet - 100 GbE)
You can configure ESS 3200 in a mixed cluster where other ESS products are used. The following figure
shows the ESS network topology of a mixed ESS cluster that contains ESS 5000, ESS 3200, and ESS 3000
systems.
ESS Network (ESS 5000, ESS 3000, and ESS 3200)
HDR/EDR
100 GbE
External/Campus
Network
Clustering/
Data
Network
Figure 4. Network topology
Management (1GbE) Management (1GbE)
Configuration ESS Mgmt Node (EMS) ESS Mgmt Node (EMS)
Upgrade
Deployment
IPMI/BMC Access
Service/SSR
Remote Console (SOL)
Location Function
C11 T1 (f0) - Mgmt network
C11 T2 (f1) - FSP network
C11 T3 (f2) - Campus network
C11 T4 (f3) - SSR
P9 EMS - ems1
C11-T3
FS
C11-T1 C11-T4(10.111.222.101/30)
Ethernet 1 ESS 3000
Tech Port
192.168.X.X/24 Top 10.0.0.102
192.168.X.X/24 Bot 10.0.0.101
Management/Provisioning
Network (192.168.x.x)
Management/Provisioning
(192.168.x.x)
Network
Ethernet 1 ESS 3200
BMC
192.168.X.X/24
10.x.x.x/24
192.168.X.X/24 10.x.x.x/24
SSR Serial Port
Share same
physical port
C11-T1(192.168.X.X/24)
ESS 5K I/O Server - essio1
C11-T4(10.111.222.101/30)
C11-T1(192.168.X.X/24)
ESS 5K I/O Server - essio2
C11-T4(10.111.222.101/30)
GUI
Scale
ESA
Deployment
Container
EMS
C11-T2
(10.X.X.X/24)
HMC 1
P
SSR
Port
SSR
Port
FSPService
Network
(10.X.X.X/24)
P
P9
HMC 1
FSP
SSR
Port
P9
HMC 1
FSP
SSR
Port
