10. Quickstart: Initial Operation, Software
Mount the sensor according to the installation instructions.
Install the software.
Connect the sensor to the PC using the optionally available SCR3000A-x Ethernet-
cable.
Connect the shield of the power supply cable to the PE grounding conductor of
the main power supply. Close connection plugs you do not require with the includ-
ed protective caps. Turn on the power supply (24 VDC).
Please wait until the scanCONTROL measuring system is recognized by the PC.
This may take a few seconds.
Now you can operate the scanCONTROL measuring system with the scanCONTROL
software packages.
i
Operating the sensors via Ethernet may require the IP settings of the PC/sensor
or the firewall settings to be adjusted, see Chap. 5.2.5 of the operating instruc-
tions.
The connectors for Ethernet and the multifunction port include a screw connector.
Loosen the screws connection before you remove the connector from the socket.
i
Only connect the sensor to the peripheral equipment, if it is disconnected from
the power supply, i.e. only when the supply voltage is switched off. The sensor
needs a warm-up time of typically 20 minutes for high precision measurements.
scanCONTROL 2900/2950BL
You will find the software online on
the product website of the sensor
or in the download area:
https://www.micro-epsilon.
de/2D_3D/laser-scanner/Software/
downloads/.

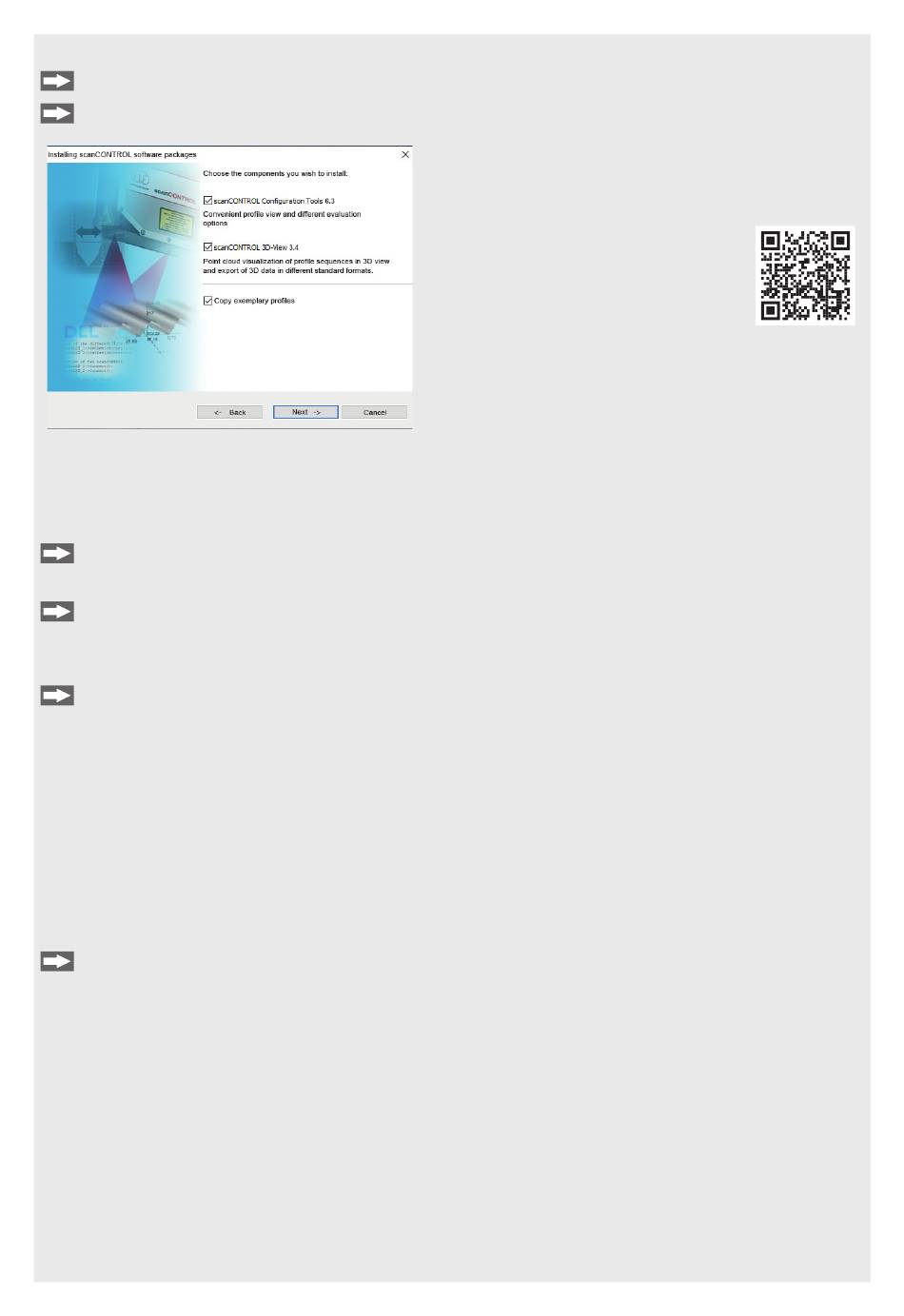

Follow the dialog instructions through the
installation process:
A. Read the installation help
B. Install the software
C. Additional information in the online docu-
mentation
