Summary of Contents for Okolab H301-PI-736-ZR1S

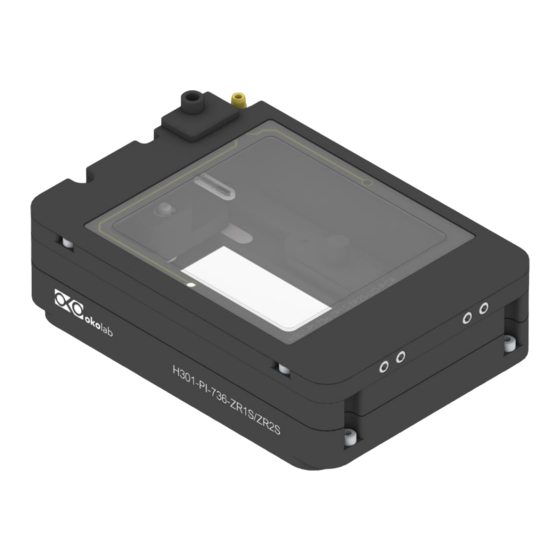

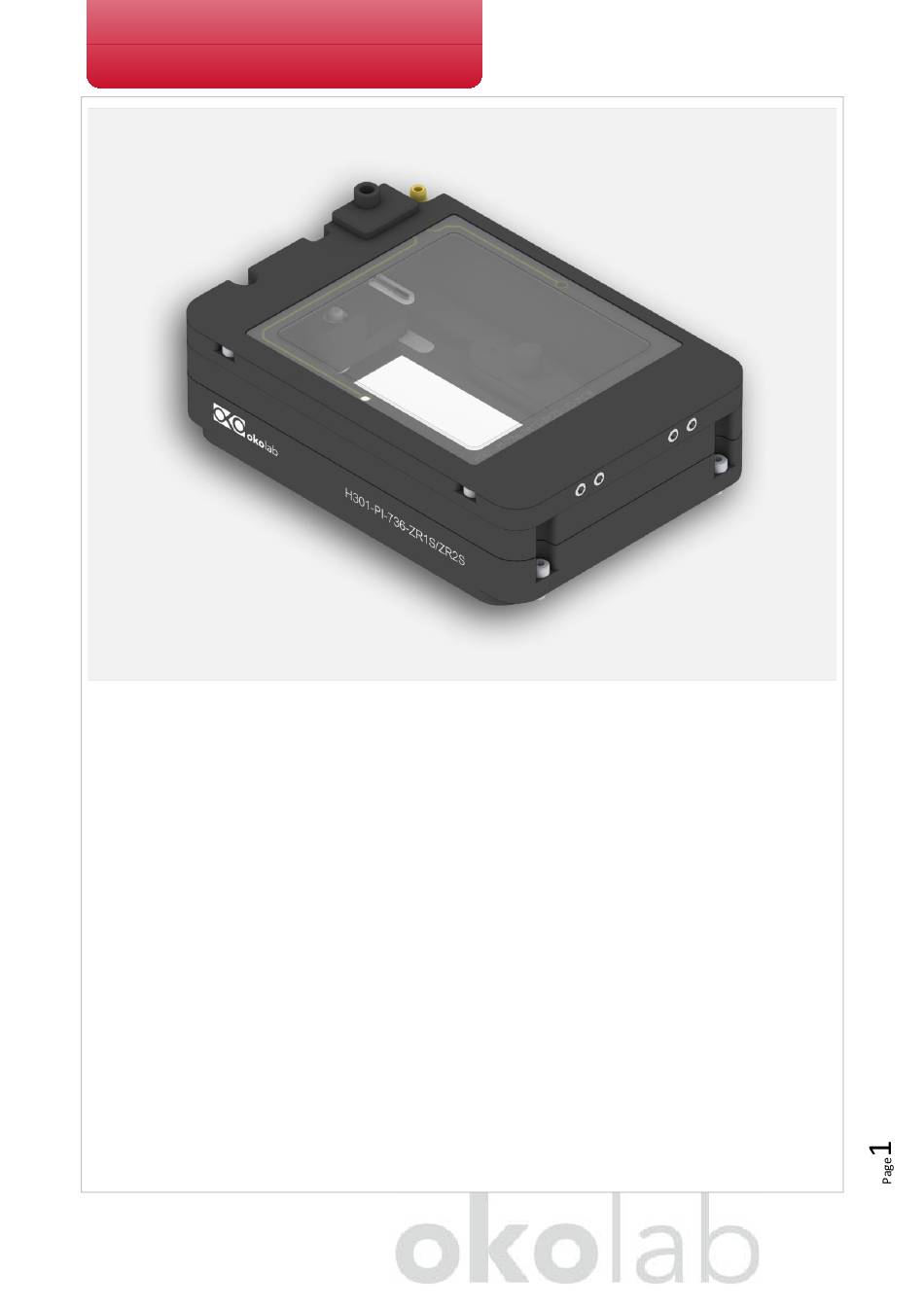

- Page 1 User Manual H301-PI-736-ZR1S/ZR2S REV 03 H301-PI-736-ZR1S/ZR2S H301-PI-736-ZR1S/ZR2S is compatible with the following Z-piezo stages: Physik Instrumente P-736-ZR1S/ZR2S and Pri- or PZ100. IST 2150 _REV01 www.oko-lab.com...
-
Page 2: Table Of Contents
User Manual H301-PI-736-ZR1S/ZR2S REV 03 Index Components and dimensions....................3 Available Sample Holders ....................... 3 Installation ........................4 3.1 Working with Chamber Riser ....................4 3.2 Insertion of the Sample Holder into Chamber Main Body ..............4 3.3 Installation of the Chamber on the stage ..................5 3.4 Working with 35 Petri Dish- Spacing Rings and Magneti Locks ............ -
Page 3: Components And Dimensions
Chamber Lid Chamber Riser Sample Holder- Ordered Separately Chamber Main Body Figure 1. H301-PI-736-ZR1S/ZR2S. Components and Dimensions. 2. Available Sample Holders The following sample holders are available. NOTE: Please contact info@oko-lab.com if you cannot find the sample holder you are looking for. We are constantly adding new inserts to the list. -
Page 4: Installation
Working with Chamber Riser H301-PI-736-ZR1S/ZR2S includes the Chamber Riser, a removable frame increasing the height of the chamber from 22 to 27 mm. Figure 3 shows how to mount and screw the chamber riser. Fasten the four captive screws clockwise by using a 1.5 mm hexagonal key. -
Page 5: Installation Of The Chamber On The Stage
Installation of the Chamber on the stage To mount H301-PI-736-ZR1S/ZR2S chamber on the z piezo stage, follow the steps shown in Figure 5. 1. Slot the chamber main body into the stage, taking care to match the screws position (see 1 in Figure 5). -
Page 6: Working With 35 Petri Dish- Spacing Rings And Magneti Locks
User Manual H301-PI-736-ZR1S/ZR2S REV 03 Figure 5. How to assemble the chamber on the stage. Working with 35 Petri Dish- Spacing Rings and Magneti Locks Magnetic lock, included with the sample holder, prevents movement of 35 mm dishes inside the sample holder (see Figure 6). -
Page 7: Working With 1"X3'' And 1"X2''Chamber Slides
User Manual H301-PI-736-ZR1S/ZR2S REV 03 Figure 7. 1) Insertion of the ring, 2) insertion of the 35 mm dish, 3) insertion of the magnetic lock. NOTE: Spacing rings do not block the petri inside its accommodation, but they are designed to center the petri with respect to the observation circular window. -
Page 8: Lid Assembly
User Manual H301-PI-736-ZR1S/ZR2S REV 03 Figure 9. Sample holder for 1”x3” chambered cover glass holder. Flat springs prevent movement of 1”x2’’ chamber slides inside of the sample holder, see Figure 10. Figure 10. Sample holder for 1”x2” chambered cover glass holder. -
Page 9: Connection Of The Gas Supply
A single silicon tubing carries output gas from the Okolab Gas Controller to the H301-PI-736-ZR1S/ZR2S. Silicon tubing connects to a gas input - brass opening - located on a corner of the H301-PI-736-ZR1S/ZR2S. See Figure 12. Connect by gently pushing silicon tubing onto brass opening. -
Page 10: Insertion Of The Sample Feedback Temperature Sensor
6. Insertion of the Temperature Sensor If you operate in Chamber Feedback mode, to realize a self-calibration of H301-PI-736-ZR1S/ZR2S, insert the Temper- ature Sensor through the dedicated opening located in the chamber main body (see Figure 14, a) and fix the Tempera- ture Sensor with adhesive tape on the bottom of the dish (see Figure 14, b). -
Page 11: Cleaning
(product code UN1170). Do not put any liquid di- rectly on the chamber. While cleaning the glass lid, do not apply strong force to the surface of the glass lid because it can be damaged. H301-PI-736-ZR1S/ZR2S_User Manual Rev 03_Published in December 2020 www.oko-lab.com...
