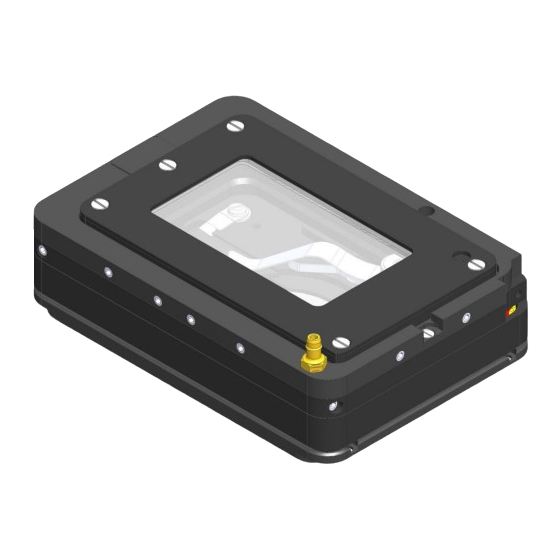

- Page 1 User Manual H301-PI-736-ZR1S/ZR2S REV 02 H301-PI-736-ZR1S/ZR2S Compatible with the following Z piezo stages Compatible with the following Okolab Controllers • • PI:P-736-ZR1S/ZR2S; H301-T-BL-PLUS • UNO-COMBINED-CONTROLLER • H401-T-DUAL www.oko-lab.com...
- Page 2 User Manual H301-PI-736-ZR1S/ZR2S REV 02 Index Components and dimensions....................3 Insertion of the Sample Feedback Temperature Sensor ..............4 Working with 35 Petri Dish- ....................4 Working with 1”x3’’ and 1”x2’’chamber slides ................5 Connection of the Gas Supply ....................6 Working with Perfusion ......................
- Page 3 Distance between focal plane and upper side of the glass lid without the chamber riser Chamber Main Body Chamber Riser Chamber top view Sample Holder-Ordered Separately Figure 1. H301-PI-736-ZR1S/ZR2S. Components and Dimensions. www.oko-lab.com...
- Page 4 H301-PI-736-ZR1S/ZR2S REV 02 2. Insertion of the Sample Feedback Temperature Sensor Insert the Sample Feedback Temperature Sensor through the dedicated opening located in the H301-PI-736-ZR1S/ZR2S chamber riser (see Figure 2, Frontal and 3D views). Temperature Sensor dedicated opening Temperature Sensor dedicated opening 1.Frontal view...
- Page 5 User Manual H301-PI-736-ZR1S/ZR2S REV 02 4. Working with 1”x3’’ and 1”x2’’chamber slides Flat springs prevent movement of 1”x3’’ and 1”x2’’ chamber slides inside of the sample holder. Figure 4. Sample holder for 1”x3” chambered cover glass holder. Figure 5. Sample holder for 1”x2” chambered cover glass holder.
- Page 6 A single silicon tubing carries output gas from the Okolab Gas Controller to the H301-PI-736-ZR1S/ZR2S. Silicon tubing connects to a gas input - brass opening - located on a corner of the H301-PI-736-ZR1S/ZR2S. See Figure 6. Connect by gently pushing silicon tubing onto brass opening.
- Page 7 User Manual H301-PI-736-ZR1S/ZR2S REV 02 7. Connection of the Chamber with Z piezo stage Follow the steps shown in the images of Figure 8 and listed below in order to correctly connect the chamber with Z piezo stage: Place the sample holder on the stage and tighten the four M2x3 Pan head screws, as shown in Figure 8 Image 1...
- Page 8 (product code UN1170). Do not put any liquid di- rectly on the chamber. While cleaning the glass lid, do not apply strong force to the surface of the glass lid because it can be damaged. H301-PI-736-ZR1S/ZR2S_User Manual Rev 02_Published in January 2020 www.oko-lab.com...
