TWO POST LIFT
Model: OH-10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OH-10 and is the answer not in the manual?

Questions and answers

Related Manuals for AMGO Hydraulics OH-10

Summary of Contents for AMGO Hydraulics OH-10

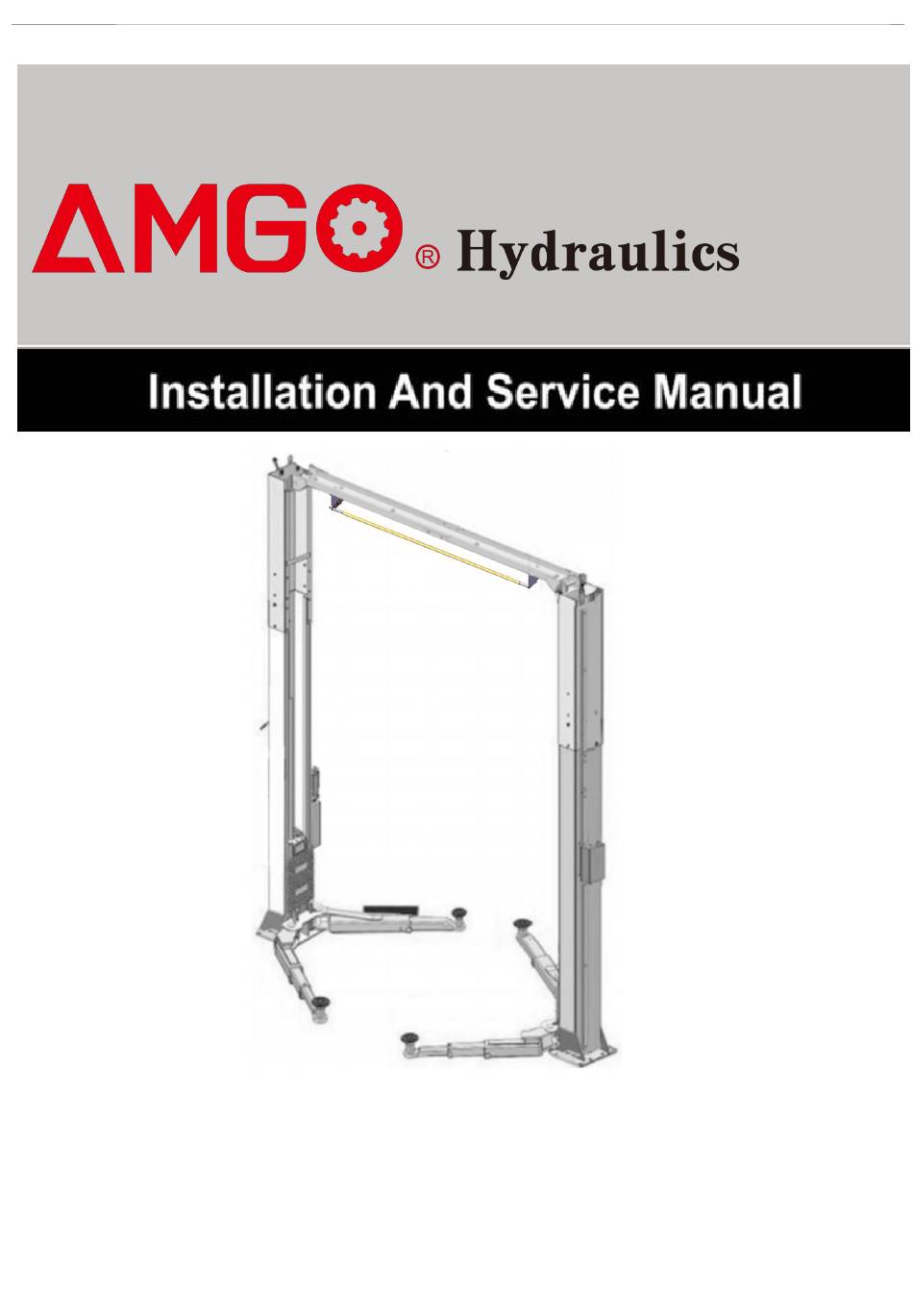

  • Page 1 Original TWO POST LIFT Model: OH-10...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ..........1 Installation Requirement ............. 4 Steps of Installation ……………………………………………………………………………….6 Exploded View ................25 Test Run ...................33 Operation Instruction ..............35 Maintenance ................35 Trouble Shooting ...............37 Lift Disposal ................37...

  • Page 3: Product Features And Specifications

    I. PRODUCT FEATURES AND SPECIFICATIONS CLEAR-FLOOR DIRECT-DRIVED MODEL FEATURES Model OH-10 (See Fig. 1) · Direct-drived design, minimize the lift spare parts breakdown ratio · Dual hydraulic cylinders, each cylinder has been through high pressure holding test, adopts imported oil ring for cylinder sealing ·...
  • Page 4 Arm Swings View Fig.2 Attention! Please make sure to place the arms in correct position before car drive in! Car in Fig.3...
  • Page 5 Swing and extending the arms to the lifting point of vehicle Fig.4...

  • Page 6: Installation Requirement

    II. INSTALLATION REQUIREMENT A. TOOLS REQUIRED  Rotary Hammer Drill (Φ19) Carpenter’s ink marker   Hammer Screw Sets   Level Bar Tape Measure (7.5m)   English Spanner (12") Pliers   Ratchet Spanner with Socket (28 Socket Head Wrench (3 ...
  • Page 7 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, normal temperature, ventilated and dry place. C. The equipment should be unloaded and transferred by forklift. Fig.6 D. SPECIFICATIONS OF CONCRETE (See Fig. 7) Specifications of concrete must be adhered to the specification as following.

  • Page 8: Steps Of Installation

    III. STEPS OF INSTALLATION A. Location of Installation Check and insure the installation location (concrete, layout, space size etc.) is suitable for lift installation. B. Use a carpenter’s ink marker line to establish installation layout of base-plate (See Fig.8). Click a line 135”...
  • Page 9 3. Loose the screws of the upper package stand, take off the upper extension columns, take out the parts in the inner column and remove the package stand. 4. Move aside the parts and check the parts according to the shipment parts list. (See Fig.11, 12).
  • Page 10 Part bag (3) Fig. 14 D. Install parts of extension columns (See Fig. 15). Fig. 15 E. Position power-side column Put down two columns on the installation site parallelly. Position the power-side column according to the actual installation site. Usually, it is suggested to install power-side column on the front-right side of the direction which vehicles are driven to the lift.
  • Page 11 Not suitable for installation when the height of the workshop is less than 143-3/4"; only low setting installation for ceiling height between 143-3/4" ~ 151-1/2 "; the height of the workshop is greater than 151-1/2", installation can be in both high and low setting; 1.
  • Page 12 F. Position columns (See Fig. 18) Position the columns on the installation layout of base-plate, Install the anchor bolts. Check the Columns plumpness with level bar, and adjusting with the shims if the columns are not vertical. Do not tighten the Anchor Bolts. Width between clumn 112-1/4”...
  • Page 13 G. Install overhead top beam 1. The hook on the top coupling assembly is hung on the outer column to lock the screws, and then the top beam is installed (See Fig. 19) Fig. 19...
  • Page 14 2. Install the top beam, fix the anchor bolts. Tighten the anchor bolts with ratchet spanner with socket Note: Torque of Anchors is 150N.m Fig.20...
  • Page 15 H. Install the limit switch control bar and limit switch (See Fig. 21). Fix the control bar support → Power-side bracket with Hex bolt M10*20, nuts, lock washer, and washer → Off-side Control bar support bracket Fix socket Limit switch Hex bolt control bar (M8*35mm)
  • Page 16 2.Tighten limit switch. Fix the limit switch on control bar support bracket of the power-side as the photo. The wire pass through the top beam and connected to the AC contactor of power unit. Limit switch Fig.23 I. Install safety device (See Fig.
  • Page 17 J. Install cables Lift the carriages up and make them be locked at the same level . Low setting cable connection (See Fig. 26). Low Setting installation holes Cable2 Cable1 Cable2 Fig. 26...
  • Page 18 2．High setting cable connection 2.1. Cable pass through from the bottom of the carriages and be pulled out from the open of carriages, then screw the two cable nuts (See Fig. 27). High Setting installation holes Screw the two cable nuts Cable Connecting direction Cable connecting direction Fig.
  • Page 19 2.2 Connecting cable for high setting (See Fig. 28). Cable 2 Cable 1 Cable 2 Fig. 28...
  • Page 20 K. Install oil hose. 1. Oil-line connecting drawing. (See Fig.29) Fig.29...
  • Page 21 2. Follow these steps to connect the oil hose with power unit. Left outlet port Right outlet port Hex plug B. Assemble 90 fitting of power unit, and A. Disassemble the hex plug. connecting the oil hose. Plastic red plug D.
  • Page 22 L．Install protective cover. (Fig.31) Install M6*35 screw 1.Put on M6*40 Screw; Protective cover 2.Install protective cover, only used for high tighten the screws. setting installation Fig.31...
  • Page 23 Safety cable goes M. Install safety cable (See Fig. 32) above the clamp Safety cable across pulley bracket Limit switch wire cable Oil hose Safety cable connect to power-side safety device Install cable from Off-side safety device firstly Fig.32...
  • Page 24 Note: Don’t cross the oil hose and safety cable together (See Fig. 33 & Fig. 34). Tie the hose and cable with tape Safety Cable Oil Hose Wire Cable Power-side Safety Device Offside Safety Device Fig. 33 Fig. 34 N. Install safety cable limit plate (See Fig.
  • Page 25 O. Install lifting arms and adjust the arm locks 1. Install the lifting arms (See Fig. 36). 2. Lowing the carriages down to the lowest position, then use the socket head wrench to loose the socket bolt (See Fig. 37). Loosen the Bolt Snap Ring Fig.
  • Page 26 Single phase motor wiring (See Fig. 40) a. When power supply wires are active wire L and neutral wire N ,connecting active wire L to terminals of AC contactor marked L1, connecting neutral wire N to terminals of AC contractor marked L3. b.

  • Page 27: Exploded View

    IV. EXPLODED VIEW Fig. 43...
  • Page 28 PARTS LIST Item Part No. Description QTY. 10206019 Snap Ring φ19 10209012 Elastic latch φ3.2 10209128 Washer φ20 1002011001 Bronzed bush for Pulley φ22*φ19*14 11020111001 Pulley φ80*φ22*15 11279023 Power-side Inner Column 10209003 Hex Bolt M8*25 10209004 Rubber Ring φ8*20*3 10209005 Self-locking Nut M8 11217436 Safety device spacer φ27*15...
  • Page 29 Item Part No. Description QTY. 10209018 Protective Rubber 11279004 Carriage Front right Arm 1102214012C Front left Arm 1102214005C Rubber pad assy. 10201046A 10420138 Socket bolt M6*16 10209134 Rubber pad 11680030C Rubber pad bracket 10209034 Lock Washer φ8 10209039 Lock washer φ10 10209059 Anchor bolt 3/4*5-1/2 10206500B...
  • Page 30 Item Part No. Description QTY. 11209052B Stackable Adapter (2.5”) 11209053B Stackable Adapter (5”) 10217066 Anchor Bolt M6*15 10209149 Lock Washer φ6 10420045 Washer φ6 10206064A Cable L=10048mm 10206132-01 Oil hose L=4470mm 10209060 90° fitting for power unit 10211016 T fitting 10209064 Straight Fitting 10206062...
  • Page 31 4.1 Rear arm assy. (1102214001C) explosive view Fig.44 Item Part No. Description QTY. 10206048 Socket bolt M10*30 10209039 Lock Washer φ10 10209022 Washer φ10 11206049 Moon gear 1102214001A Rear outer arm 10201149 Cap head bolt M8*12 1102214004A Rear inner arm 4.2 Left front arm assy.
  • Page 32 Item Part No. Description QTY. 10206048 Socket bolts M10*30 10209039 Lock Washer φ10 10209022 Washer φ10 11206049 Moon gear 1102214005A Outer arm- Left front 1102214009A Middle arm - Front 10201149 Cap head bolt M8*12 1102214010A Inner arm - Front 4.3 Right front arm assy. (1102214012C) explosive view Fig.46 Item Part No.
  • Page 33 4.4 Cylinder (1002216000) explosive view Fig. 47 Part list of cylinder Item Part No. Description QTY. 30-1 10209069 O-ring 30-2 10209070 Bleeding Plug 30-3 1002576003 Support Ring 30-4 11720114 Pressure Compensated Flow Restrictor（0.7 Spring） 30-5 10209071 Wear ring 30-6 10209072 Y-ring OSI 30-7 10209073...
  • Page 34 4.5 Power unit (071101) explosive view Fig. 48 ingle phase 220V/60H Part list of power unit (220V/60HZ/single phase) Item Part No. Description QTY. Item Part No. Description QTY. 81400180 Rubber pad 41030055 AC contractor 81400250 Starting capacitor 81400287 Motor wiring cover 81400200 Running capacitor 71111104...

  • Page 35: Test Run

    4.6 Illustration of hydraulic valve for hydraulic power unit Relief valve Oil return port Release valve Throttle valve Oil Outlet Handle of Release Oil Outlet valve Check valve Fig.49 V. TEST RUN 1. Adjustment of synchronous cable (See Fig. 50) Use wrench to hold the cable fitting, meanwhile using Cable nut ratchet spanner to tighten the cable nut until the two...
  • Page 36 4. Adjust the lowering speed You can adjust the lowering speed of the lift if needing: screw the throttle valve clockwise to decrease the lowering speed, or counterclockwise to increase the lowering speed. Throttle valve Throttle valve Adjust clockwise, decrease lowering speed Counterclockwise, increase lowering speed Fig.

  • Page 37: Operation Instruction

    VI. OPERATION INSTRUCTIONS Please read the safety notes carefully before operating the lift To lift vehicle 1. Keep clean of site near the lift; 2. Position lift arms to the lowest position; 3. To shortest lift arms; 4. Open lift arms; 5.
  • Page 38 Note: All anchor bolts should take full torque. If any of the bolts is malfunction for any reason, DO NOT use the lift until the bolt has been replaced. Every six months: 1. Make a visual inspection of all moving parts for possible wear, interference or damage.

  • Page 39: Trouble Shooting

    VIII.TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1. Button does not work 1. Replace button 2. Wiring connections are not in good 2.Repair all wiring connections condition Motor does not 3. Motor burned out 3. Repair or replace motor 4. Height Limit Switch is damaged 4.
  • Page 40 AMGO HYDRAULIC CORPORATION 1931 Joe Rogers Blvd, Manning, South Carolina, Tel: (803) 505-6410 Zip: 29102 AMGO HYDRAULIC CORPORATION 1931 Joe Rogers Blvd, Manning, South Carolina, Zip: 29102 Tel: (803) 505-6410 Manual No.：72228703 Fax: (803) 505-6410 Revised date：2022/10...
