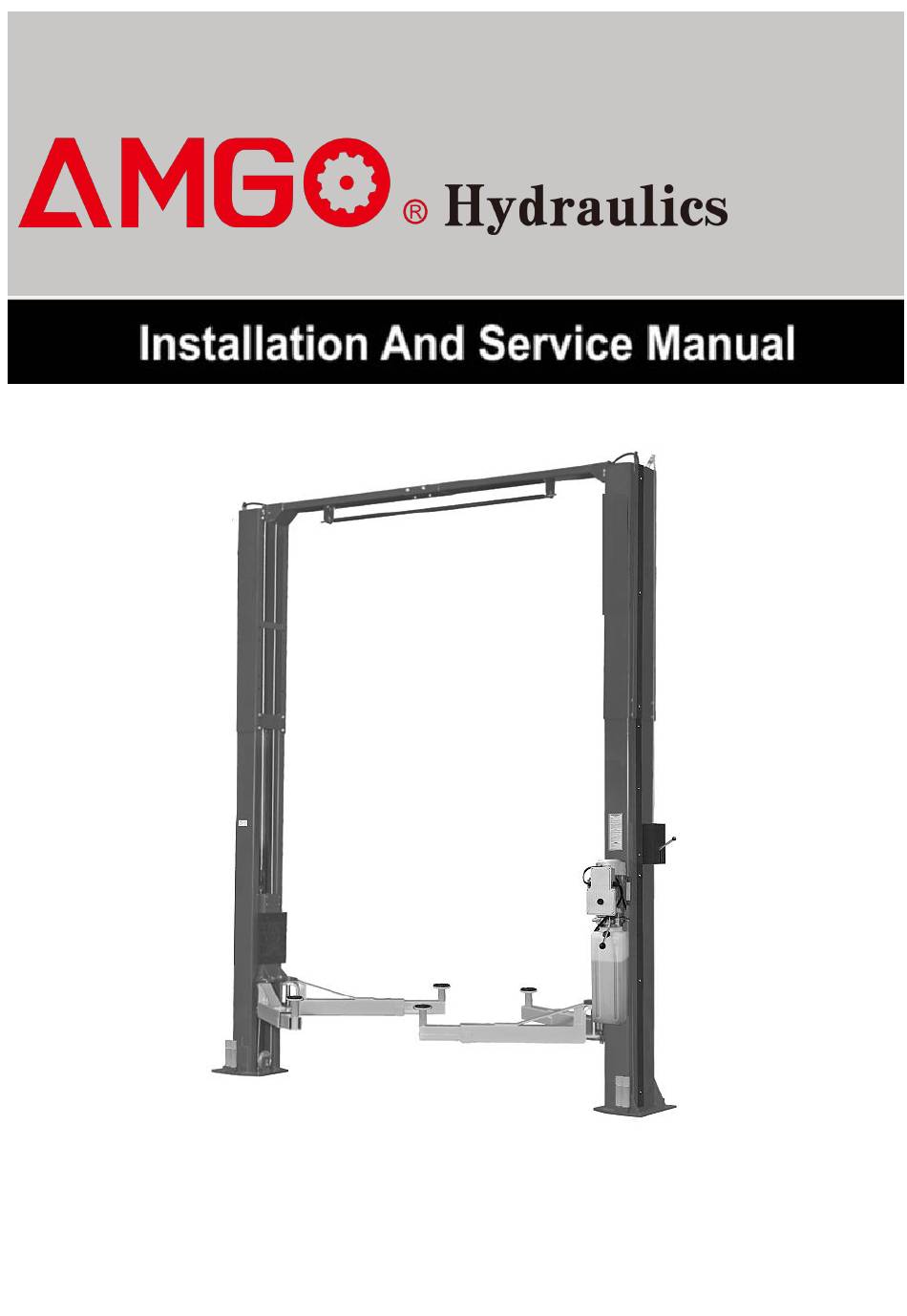

  • Page 1 Original TWO-POST LIFT MODEL: OH-15...

  • Page 2: Table Of Contents

    CONTENTS Product Features and Specifications ..........1 Installation Requirement ...............3 Steps of Installation ..............5 Exploded View ................25 Test Run ..................33 Operation Instruction ..............357 Maintenance ................36 Trouble Shooting .................37 Lift Disposal ................37...

  • Page 3: Product Features And Specifications

    I. PRODUCT FEATURES AND SPECIFICATIONS CLEAR-FLOOR DIRECT-DRIVED MODEL FEATURES Model OH-15 (See Fig. 1) · Direct-drived design, minimize the lift wear parts and breakdown ratio · Dual hydraulic cylinders are designed and manufactured according to high standard, utilizing imported seals ·...
  • Page 4 Arm Swings View 2787mm 109 3/4” 3829mm 150 3/4” Fig. 2 - 2 -...

  • Page 5: Installation Requirement

    II. INSTALLATION REQUIREMENT TOOLS REQUIRED Rotary Hammer Drill (Φ19) Carpenter’s Chalk   Hammer Screw Sets   Level Bar Tape Measure (7.5m)   English Spanner (12") Pliers   Lock Wrench Wrench set  ＃ ＃ ＃ ＃ ＃...
  • Page 6 B. Equipment storage and installation requirements. The equipment should be stored or installed in a shady, normal temperature, ventilated and dry place. C. The equipment should be unload and transfer by forklift. Fig.4 D. SPECIFICATIONS OF CONCRETE (See Fig. 5) Specifications of concrete must be adhered to the specification as following.

  • Page 7: Steps Of Installation

    III. INSTALLATION STEPS A. Location of installation Check and ensure the installation location (concrete, layout, space size etc.) is suitable for lift installation. B. Use a carpenter’s chalk line to establish installation layout of baseplate (See Fig. 6) Chalk a line 150 3/4”...
  • Page 8 3. Remove aside the top beam assy. (See Fig. 9). Fig. 9 4. Lift the upper column with a fork lift or hoist, loosen the bolts of the upper package stand, take off the upper outer column, then take out the parts in the inner column (See Fig.
  • Page 9 6. Move aside the parts and check the parts according to the shipment parts list (See Fig. 12, Fig. 13) Fig. 13 Fig. 12 Parts of 103 eck the parts of the parts bag 1 according to parts bag list (See Fig.
  • Page 10 Install parts of extension columns (See Fig. 16). Fig. 16 E. Install hydraulic cylinder extended straight fitting and 90° fitting, and connecting the fittings, a Wind enough seal tape on the then install the cylinder into the carriages (See Fig. 17, Fig.18) Fig.
  • Page 11 The fitting across the column hole Assemble the cylinder into the column White tape Fig. 18 F. Install columns Lay down two columns on the installation site parallelly, position the power-side column according to the actual installation site. Usually, it is suggested to install power-side column on the right side of vehicles drive-in.
  • Page 12 G. Install anchor bolts. Position the columns on the installation layout. Check the columns verticality with level bar, and adjusting with the shim if the columns are not vertical. Do not tighten the anchor bolts at this time. (See Fig.21, Fig.22) Width between columns: 123 1/2”...
  • Page 13 H. Install overhead top beam 1. With help of the hook of top beam, put one side of top beam on top of the extension column and connecting the top beam to extension column by bolts, tighten the bolts. Then assemble the connecting bracket (See Fig.
  • Page 14 2. Assemble overhead top beam, tighten the columns anchor bolts (See Fig. 24) Tighten the anchor bolts with ratchet spanner with socket Fig. 24 Note: Torque of Anchors is 150N.m. - 12 -...
  • Page 15 I. Installing the limit switch control bar and limit switch (See Fig. 25). Loosen Screw of Drive Rod for adjustment, Tighten the screw after adjustment Connect the blue wire to terminal 11# Limit Switch is of limit switch and connected terminal A1 of AC with cable contactor of power...
  • Page 16 J. Install safety device (See Fig. 26 & Fig. 27 Fig. 26 Power-side safety device Fig. 27 Off-side safety device - 14 -...
  • Page 17 K. Lift the carriages up by hand and make them be locked at the same level (See Fig. 28). Fig. - 15 -...
  • Page 18 L. Install cables 1. High setting cable connection. 1.1 Take out the carriages plastic cover, cable pass through from the bottom of the carriages and be pulled out from the open of carriages, then screw the two cable nuts (See Fig. 29). Tighten Cable connecting direction...
  • Page 19 1.2 Connecting cable for high setting (See Fig. 30) High setting Cable 2 Cable 1 Cable 1 Fig. 30 - 17 -...
  • Page 20 2. Low setting cable connection. (See Fig. 31) Low Setting Cable 2 Cable 1 Cable 2 Fig. 31 - 18 -...
  • Page 21 M. Install power unit (See Fig. 32) Fig. 32 - 19 -...
  • Page 22 N. Install oil hose (See Fig. 33) (48, 49 Only for high setting) Oil hose connecting view Oil hose and wire pass the support Oil hose pass through the bracket wire tube on top beam Oil hose connected with 90° fitting When connect the fitting, rotate the cylinder fitting to the left to fit into the wire protective cover.
  • Page 23 Install safety cable. (See Fig. 34) Install safety cable from off-side safety assy. to power-side safety assy., pass through the top beam. Safety cable Safety cable pass through small pulley bracket Install safety cable from off-side safety device. Safety cable is connected with the power-side safety device.
  • Page 24 Install wire protective cover (See Fig. 35) M6*35 bolt 1.Tighten M6*40 Cup Head Bolt slightly 2.Install wire protective cover, then tighten the cup head bolt. Install wire protective cover to fix the oil hose Fig. - 22 -...
  • Page 25 Q. Install lifting arms and adjust the arm locks 1. Install lifting arms (See Fig. 36). 2. Lowing the carriages down to the lowest position, then use the socket head wrench to loosen the socket bolt (See Fig.37) 3. Adjust arm lock as direction of arrow (See Fig.38) 4.
  • Page 26 R. Tighten all the oil hose connectors, fill with Hydraulic oil into the tank. In consideration of Hydraulic Power Unit’s durability and keep the equipment running in perfect condition, please use Hydraulic Oil 46#. S. Install electrical system 220V Single phase motor 1.

  • Page 27: Exploded View

    IV. EXPLODED VIEW Model OH-15 Fig. 43 - 25 -...
  • Page 28 PARTS LIST FOR MODEL OH-15 Item Part# Description OH-15 NOTE 11217466 Power-side column 071102 Manual Power unit 10209003 Hex Bolt 10209033 washer 10217002 Hex Nut 11217405 Power-side safety cover 11217005 Plastic ball 11217006 Lock handle 10206023A Hex nut 10420026 Lock washer...
  • Page 29 Item Part# Description Qty. Note 11217031 Off-side cam Lock 10217032 Cable lock hold 10217033 Self locking Nut Fitting （high setting） 1002185002 Hose （high setting） 1002185001 11217029 Small Pulley Bracket 10217066 Hex Bolt 11217467 Off-side Column 11209051B Adapter 1.5” 11209052B Adapter 2.5” 11209053B Adapter 5”...
  • Page 30 Item Part# Description Qty. Note 10206156 Tool tray 11206154 Rear guard bar 10201002 Hex bolt 10209034 Lock Washer 10209033 Washer 10217114A Rubber pad assy. 10420138 Socket bolt 10209134 Rubber Pad 11680030B Rubber Pad Frame 10217052D Lifting Arm Assy. 11217060A Extend Straight Fitting 10217061A 90°...
  • Page 31 1. Lifting Arm Exploded View (10217052D) Fig. 44 Item Part# Description Qty. Note 10206048 Socket bolt 10209039 Lock washer 10209022 Washer 11206049 Moon gear 11217122 Outer rear arm 10201149 Flat head screw 11217123A Inner arm - 29 -...
  • Page 32 2. Cylinders Exploded View (10217056B) Fig. 45 Item Part# Description Qty. Note 67-1 10209069 O-Ring 67-2 10209070 Bleeding Plug 67-3 10201029 Support Ring 67-4 10201030 Y-Ring 67-5 10201031 O-Ring 67-6 11217074A Piston 67-7 10217075 O-Ring 67-8 11217089 Piston rod 67-9 11217077 Piston rod fitting 67-10...
  • Page 33 4.3 Manual power unit Explode View （071102） 220V/60Hz, Single Phase Fig. 46 - 31 -...
  • Page 34 Parts For Manual Power Unit 220V/60Hz/Single phase (071102) Item Part# Description Qty. Note 81400180 Rubber Pad 81400130 Starting capacitor 81400088 Running capacitor 10420148 Cup Head Bolt with washer 81400066 Cover of Motor Terminal Box 81400363 Motor Connecting Shaft 090106 Manifold block Washer 10209149 Iron plug...

  • Page 35: Test Run

    Illustration of hydraulic valve for hydraulic power unit (See Fig. 47) Oil return port Relief valve Release valve Throttle valve Oil Outlet Handle of Release valve Check valve Fig. V. TEST RUN 1. Adjust synchronous cable (See Fig. 48) Use Spanner to hold the cable fitting, meanwhile use ratchet spanner to tighten the cable nut.
  • Page 36 4. Adjust the lower speed You can adjust the lower speed of the lift if needing: turn the throttle valve clockwise to decrease the lower speed, or counterclockwise to increase the lower speed. Throttle valve Throttle valve Clockwise to decrease the lower speed. Counterclockwise to increase the lower speed.

  • Page 37: Operation Instruction

    VI. OPERATION INSTRUCTIONS Please read the safety tips carefully before operating the lift To lift vehicle 1. Keep clean of site near the lift; 2. Position lift arms to the lowest position; 3. To shortest lift arms; 4. Open lift arms; 5.

  • Page 38: Maintenance

    VII. MAINTENANCE SCHEDULE Monthly: 1. Re-torque the anchor bolts to 150 Nm; 2. Check all connectors, bolts and pins to insure proper mounting; 3. Lubricate cable with lubricant; 4. Make a visual inspection of all hydraulic hoses/lines for possible wear or leakage; 5.

  • Page 39: Trouble Shooting

    VIII. TROUBLE SHOOTING TROUBLE CAUSE REMEDY 1. Button does not work 1. Replace button 2. Wiring connections are not in good 2.Repair all wiring connections condition Motor does not 3. Motor burned out 3. Repair or replace motor 4. Height limit switch is damaged 4.Replace the limit switch 5.
  • Page 40 AMGO HYDRAULIC CORPORATION 1931 Jo Rogers Blvd, Manning, South Carolina, USA Tel: (803) 505-6410 Fax: (803) 505-6410 Manual Part No.: 72227903 Revision Date: 2020/09 - 38 -...
