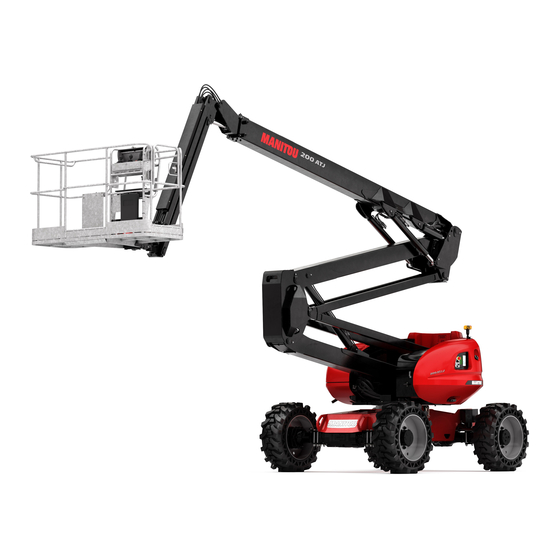

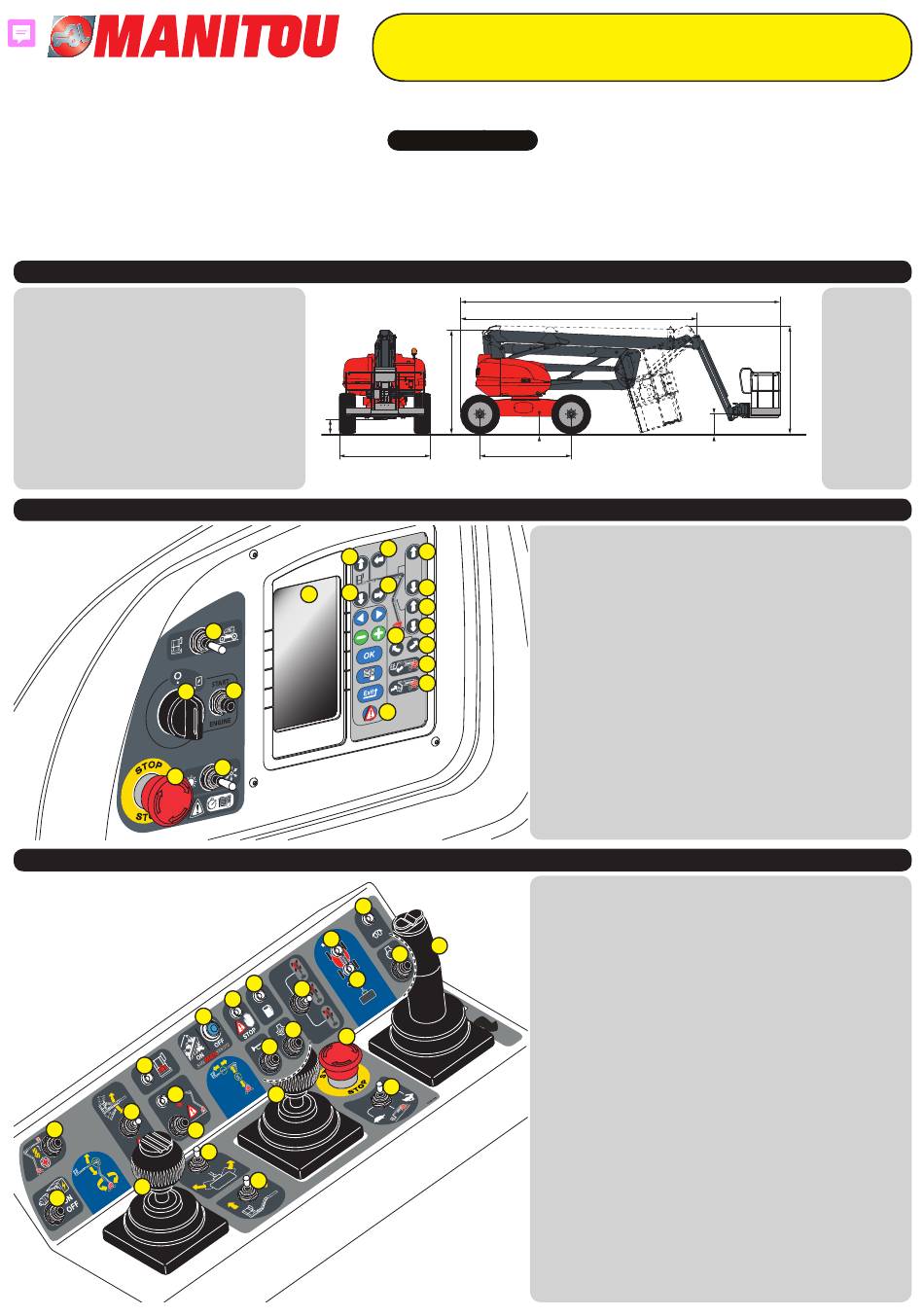

Manitou 200 ATJ Instruction Sheet

BASIC INSTRUCTION SHEET No. 833096EN (2019/03/01)
THIS ALL-TERRAIN AERIAL WORK PLATFORM IS DESIGNED TO OPERATE ON NATURAL OR UNDEVELOPED LAND, OR CONSTRUCTION SITES.
This document is a short recap on how to operate an aerial work platform and should in no way be substituted for the manual required by Directive 2006/45/EC, which should be read and
All the instructions, including the safety instructions, described in the manual but not included in this document should be implemented and enforced.
PLATFORM WEIGHT
- Unladen
- With nominal load
BASKET CAPACITY
- 2 people
PLATFORM SPEED
- Working speed
- Tortoise working speed
- Ramp working speed
- Hare working speed
2
1
32
30
22
35 31
23
36
understood by the operator beforehand and stored in the basket of the aerial work platform.
The operator must have received proper training and must comply with the applicable road traffic rules.
10,050 kg
10,280 kg
230 kg
0.8 km/h
F
2.5 km/h
2.5 km/h
4.7 km/h
6A
6B
8
5
3
4
17
28A
28B
34
27
33
37
29
16
19
24
20
21
t t
IMPORTANT
TECHNICAL CHARACTERISTICS
C *
E
**
D B
* max. value depending on the wheel model - ** min. value depending on the wheel model
GROUND CONTROL PANEL
6C
6E
1 - EMERGENCY STOP BUTTON
2 - IGNITION SWITCH
3 - ENGINE STARTER BUTTON
6D
6F
4- ENGINE STARTING MODE BUTTON
6G
5 - CONTROL SELECTION SWITCH ON THE GROUND/ IN THE BASKET
6 - CONTROL KEYS:
6H
6I
6A - RAISE THE JIB
6J
6B - LOWER THE JIB
6K
6C - EXTEND THE TELESCOPE
6D - RETRACT THE TELESCOPE
6L
6E - RAISE THE MAIN ARM
6F - LOWER THE MAIN ARM
7
6G - LIFT THE SECONDARY ARM
6H - LOWER THE SECONDARY ARM
6I - TURN THE TURNTABLE TO THE LEFT
6J - TURN THE TURNTABLE TO THE RIGHT
6K - TILT BASKET UPWARDS
6L - TILT BASKET DOWN
7 - INTERFACE SCREEN NAVIGATION KEYS
8 - INTERFACE SCREEN
CONTROL PANEL IN THE BASKET
16 - EMERGENCY STOP BUTTON
25
18
17 - PREHEAT INDICATOR LIGHT
18 - ENGINE STARTER BUTTON
19 - HORN BUTTON
20 - BASKET ROTATION SWITCH
21 - JIB SWITCH
22 - BASKET TILT SWITCH
23 - MAIN ARM AND TURNTABLE CONTROL HANDLE
24 - SECONDARY ARM AND TELESCOPE CONTROL HANDLE
25 - DRIVING/STEERING CONTROL HANDLE
26 - DRIVING SPEED SELECTION SWITCH
26
27 - STEERING MODE SELECTION SWITCH
28A - FRONT WHEEL ALIGNMENT INDICATOR LIGHTS
28B - REAR WHEEL ALIGNMENT INDICATOR LIGHTS
29 - DIFFERENTIAL LOCKING BUTTON
30 - TILTING/OSCILLATION WARNING LIGHT
31 - "USE ON SLOPE" BUTTON
32 - OVERLOAD WARNING LIGHT
33 - FAULT WARNING LIGHT
34 - LOW FUEL LEVEL WARNING LIGHT
35 - BACKUP PUMP BUTTON
36 - GENERATOR BUTTON (OPTION: GENERATOR)
37 - RESET BUTTON (OPTION: «SAFEMANSYSTEM»)
200 ATJ
A
*
A1
*
L
**
DIMENSIONS
- A* 8,475 mm
- A1* 6,260 mm
- B 2,400 mm
C1 - C* 2,715 mm
*
- C1* 2,855 mm
- D 2,400 mm
- E** 430 mm
- F 340 mm
- L** 495 mm
