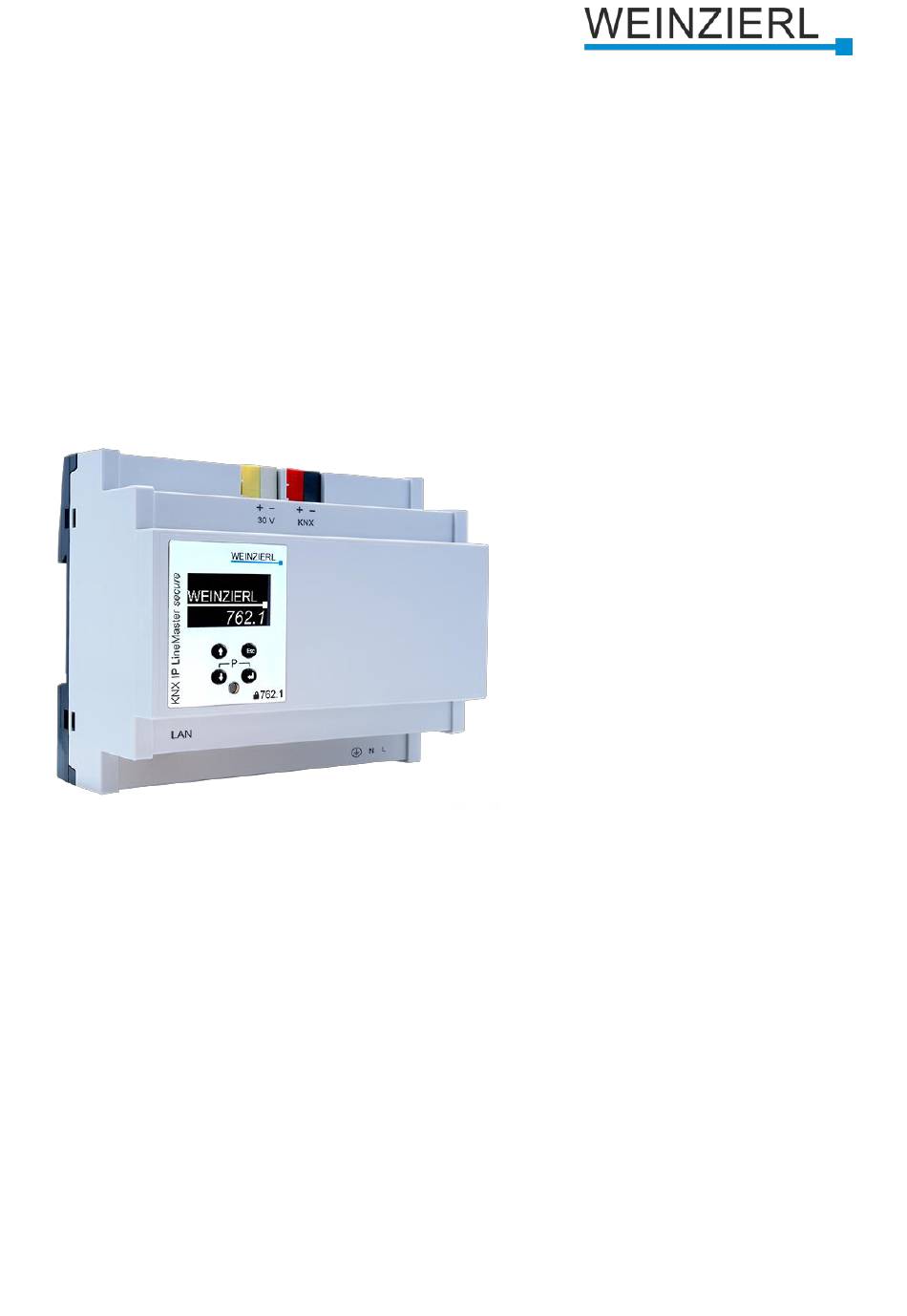

KNX power supply 640 mA with KNX IP router
KNX IP LineMaster 762.1 secure
Operation and installation manual
(Art. # 5465)
WEINZIERL ENGINEERING GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
GERMANY
+49 8677 / 916 36 – 0
Tel.:
E-Mail: info@weinzierl.de
Web: www.weinzierl.de
© 2022 WEINZIERL ENGINEERING GmbH
Seite 1/38
Advertisement
Table of Contents
Related Manuals for Weinzierl KNX IP LineMaster 762.1 secure
Summary of Contents for Weinzierl KNX IP LineMaster 762.1 secure
- Page 1 KNX power supply 640 mA with KNX IP router KNX IP LineMaster 762.1 secure Operation and installation manual (Art. # 5465) WEINZIERL ENGINEERING GmbH Achatz 3-4 84508 Burgkirchen an der Alz GERMANY +49 8677 / 916 36 – 0 Tel.: E-Mail: info@weinzierl.de...
-
Page 2: Table Of Contents
Additional individual addresses ..................26 IP settings .......................... 27 Description ......................... 30 General settings ......................... 30 Routing (KNX -> IP) ......................31 Routing (IP -> KNX) ......................34 Filter Table ......................... 36 Open source licenses ...................... 37 © 2022 WEINZIERL ENGINEERING GmbH Seite 2/38... -
Page 3: Application
0 to 31 and is able to buffer up to 150 telegrams. 2 Installation and connection The KNX IP LineMaster 762.1 secure is designed for installation on a DIN rail (35 mm) with a width of 6 units (108 mm). It features the following controls and displays: ❶... -
Page 4: Knx Programming Mode
Unloaded: The application is not loaded (programming LED flashes) ▪ Loading: The application is being loaded by the ETS ▪ Overload: The output current exceeds the overload threshold 900 mA ❽ (programming LED flashes) © 2022 WEINZIERL ENGINEERING GmbH Seite 4/38... - Page 5 Dev Reset ▪ Contrast “Router” menu item 2.2.3 The Router menu item offers the following submenus for selection: ▪ IP Config ▪ IP Tunnel ▪ Filter ▪ Operation ▪ Transit ▪ Bus Errors © 2022 WEINZIERL ENGINEERING GmbH Seite 5/38...
- Page 6 “IP Tunnel” submenu 2.2.5 The KNX IP LineMaster 762.1 secure supports 8 simultaneous KNXnet/IP tunneling connections. In this submenu their current state and their individual KNX address are displayed. “Filter” submenu 2.2.6 For commissioning or test purposes, the filter settings parameterized with the ETS can be temporarily bypassed here.
- Page 7 These settings are temporary. Settings that deviate from the parameterization are marked with a square bracket. The parameterized setting can be restored with a long button press on button enter ❼. © 2022 WEINZIERL ENGINEERING GmbH Seite 7/38...
- Page 8 Repeat Number of repeatedly sent or repeatedly received telegrams. 2.2.10 “Powersupply” menu item The Powersupply menu item offers the following submenus for selection: ▪ Diagnosis ▪ History ▪ Bus Reset ▪ Ev Counter © 2022 WEINZIERL ENGINEERING GmbH Seite 8/38...
- Page 9 In this submenu, the KNX line can be reset. By pressing button enter the KNX bus voltage is switched off. The maximum reset time is 30 seconds. This time can be shortened by pressing button escape ❻. © 2022 WEINZIERL ENGINEERING GmbH Seite 9/38...
- Page 10 In order to extend the life of the internal memory, the values of the counters are stored in the memory in a dynamic time span of up to 8 h. Thus, the values - if the power supply to the device was interrupted - can fall back somewhat. © 2022 WEINZIERL ENGINEERING GmbH Seite 10/38...
- Page 11 2.2.17 “Contrast” menu item To adjust the contrast of the display, this menu item is selected in the main menu. By pressing button enter ❼ several times, the contrast can be set to different levels. © 2022 WEINZIERL ENGINEERING GmbH Seite 11/38...
-
Page 12: Reset To Factory Default Settings
Individual address of tunneling connection 4: 15.15.243 Individual address of tunneling connection 5: 15.15.244 Individual address of tunneling connection 6: 15.15.245 Individual address of tunneling connection 7: 15.15.246 Individual address of tunneling connection 8: 15.15.247 IP address assignment: DHCP © 2022 WEINZIERL ENGINEERING GmbH Seite 12/38... -
Page 13: Wiring Scheme
If the individual address corresponds to the form x.y.0 (x, y: 1 ... 15), the KNX IP LineMaster 762.1 secure functions as a line coupler. If the individual address has the form x.0.0 (x: 1 ... 15), it is a area coupler. - Page 14 4.1.1 IP line coupler If the KNX IP LineMaster 762.1 secure is used as line coupler (x.y.0), no KNX IP router may be topologically above it. If, for example, a KNX IP router has the individual address 1.1.0, there must be no KNX IP router with the address 1.0.0.
- Page 15 4.1.2 IP area coupler If the KNX IP LineMaster 762.1 secure is used as an area coupler (x.0.0), no KNX IP router may be located topologically below it. If, for example, a KNX IP router has the individual address 1.0.0, there must be no KNX IP router with the address 1.1.0.
-
Page 16: Function As Bus Access (Knxnet/Ip Tunneling)
4.2 Function as bus access (KNXnet/IP tunneling) The KNX IP LineMaster 762.1 secure can be used as an interface to the KNX. The KNX bus can be accessed from any point in the LAN. The device supports up to 8 simultaneous tunneling connections. -
Page 17: Interface Settings In The Ets
“Discovered interfaces”. After clicking on the desired connection, connection specific information and options appear on the right side of the ETS window. Via the “Select” button, the marked connection can be selected as “Current interface”. © 2022 WEINZIERL ENGINEERING GmbH Seite 17/38... -
Page 18: Ets 6
All available connections are listed here. By clicking on a connection, this is selected as the desired interface. By clicking the gear next to the desired connection, the connection specific information and options appear. © 2022 WEINZIERL ENGINEERING GmbH Seite 18/38... -
Page 19: Common
ETS (for ETS 5.7 or newer). If a client (e.g. ETS) sends secure telegrams to the KNX bus via the KNX IP LineMaster 762.1 secure, these contain one of the additional addresses as the sender address. Each address is assigned to a connection. Thus, response telegrams can be forwarded definitely to the respective client. -
Page 20: Programming
7 Programming The KNX IP LineMaster 762.1 secure can be programmed by the ETS via different ways. 7.1 Via KNX bus For this purpose, the device must only be connected to the KNX bus. The ETS requires an additional interface (e.g. USB) to the KNX bus. Via this way, both the individual address and the entire application including IP configuration can be programmed. - Page 21 By clicking the gear next to “Automatic” the specific options appear. Here, the selection “Direct IP connection if supported by target device” can be selected. The download then takes place directly in the device and is not visible in the ETS group monitor. © 2022 WEINZIERL ENGINEERING GmbH Seite 21/38...
-
Page 22: Ets Database
KNX IP LineMaster 762.1 secure (www.weinzierl.de) or from the ETS online catalogue. The KNX IP LineMaster 762.1 secure supports KNX Data Security to protect the device against unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done with encrypted telegrams. - Page 23 The initial key is reactivated after a reset to factory default settings. The serial number in the certificate enables the ETS to assign the correct key to a device during a download. © 2022 WEINZIERL ENGINEERING GmbH Seite 23/38...
-
Page 24: Secure Group Communication
8.2 Secure group communication Each object of the device can communicate either encrypted or unencrypted. The encryption is set under "Security" in the properties of the used group address: © 2022 WEINZIERL ENGINEERING GmbH Seite 24/38... - Page 25 A key is changed by the ETS e.g. when the encryption of a group address is switched off and on again. © 2022 WEINZIERL ENGINEERING GmbH Seite 25/38...
-
Page 26: Additional Individual Addresses
The changes are only applied in the device after download. Make sure that none of the specified addresses are already used in your KNX installation. © 2022 WEINZIERL ENGINEERING GmbH Seite 26/38... -
Page 27: Ip Settings
8.4 IP settings By marking the KNX IP LineMaster 762.1 secure in the tree structure of the topology view of the ETS project, the overview “Properties” appears on the right side of the ETS window. 8.4.1 Device name (user friendly name) Under Properties menu item “Settings”, the device name (user friendly name) of the KNX IP... - Page 28 (static IP address), the IP address, subnet mask and standard gateway can be freely selected. IP Address The IP address of the KNX IP LineMaster 762.1 secure must be entered here. This is used to address the device via the IP network (Wi-Fi). The IP addressing should be coordinated with the administrator of the network.
- Page 29 Subnet mask of PC: 255.255.255.0 The KNX IP LineMaster 762.1 secure is located in the same local network, i.e. it uses the same subnet. The assignment of the IP address is restricted by the subnet, i.e. in this example the IP address of the IP interface must be 192.168.1.xx, xx can be a number from 1 to 254 (with the...
-
Page 30: Description
8.5 Description This page shows the device description and the corresponding connection diagram. 8.6 General settings © 2022 WEINZIERL ENGINEERING GmbH Seite 30/38... -
Page 31: Routing (Knx -> Ip)
All group telegrams of the main groups 0 to 13 are forwarded to IP regardless of the filter table. ▪ Filter Here it is checked by means of the filter table whether the received group telegram is forwarded to IP. The "Route" setting should only be used for test purposes. © 2022 WEINZIERL ENGINEERING GmbH Seite 31/38... - Page 32 The following settings are possible: ▪ Always An acknowledge is always generated for received group telegrams (from KNX). ▪ Only if routed For received group telegrams (from KNX), an acknowledge is only generated when forwarding to IP. © 2022 WEINZIERL ENGINEERING GmbH Seite 32/38...
- Page 33 This setting can be used to prevent manipulation attempts. If the response is NACK, access to the device via KNX is no longer possible. The parameterization must be done via IP. © 2022 WEINZIERL ENGINEERING GmbH Seite 33/38...
-
Page 34: Routing (Ip -> Knx)
▪ Filter Here it is checked by means of the filter table whether the received group telegram is forwarded to KNX. The "Route" setting should only be used for test purposes. © 2022 WEINZIERL ENGINEERING GmbH Seite 34/38... - Page 35 The following settings are possible: ▪ Disabled The received broadcast telegram is not repeated on KNX in case of error. ▪ Enabled The received broadcast telegram is repeated up to three times in case of error. © 2022 WEINZIERL ENGINEERING GmbH Seite 35/38...
-
Page 36: Filter Table
The filter table can be extended by manually adding group addresses. For this purpose, “Pass through Line Coupler” must be activated in the properties window of the corresponding group address. © 2022 WEINZIERL ENGINEERING GmbH Seite 36/38... -
Page 37: Open Source Licenses
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. © 2022 WEINZIERL ENGINEERING GmbH Seite 37/38... - Page 38 Product database for ETS 5/6 WEINZIERL ENGINEERING GmbH www.weinzierl.de/en/products/762.1/ets6 Achatz 3-4 84508 Burgkirchen an der Alz Data sheet GERMANY www.weinzierl.de/en/products/762.1/datasheet Tel.: +49 8677 / 916 36 – 0 CE Declaration E-Mail: info@weinzierl.de www.weinzierl.de/en/products/762.1/ce-declaration Web: www.weinzierl.de 2022-12-14 © 2022 WEINZIERL ENGINEERING GmbH Seite 38/38...
