Operation and installation manual
KNX IP LineMaster 762
(Art. # 5212)
KNX Power supply with integrated KNX IP Router and diagnosis functions

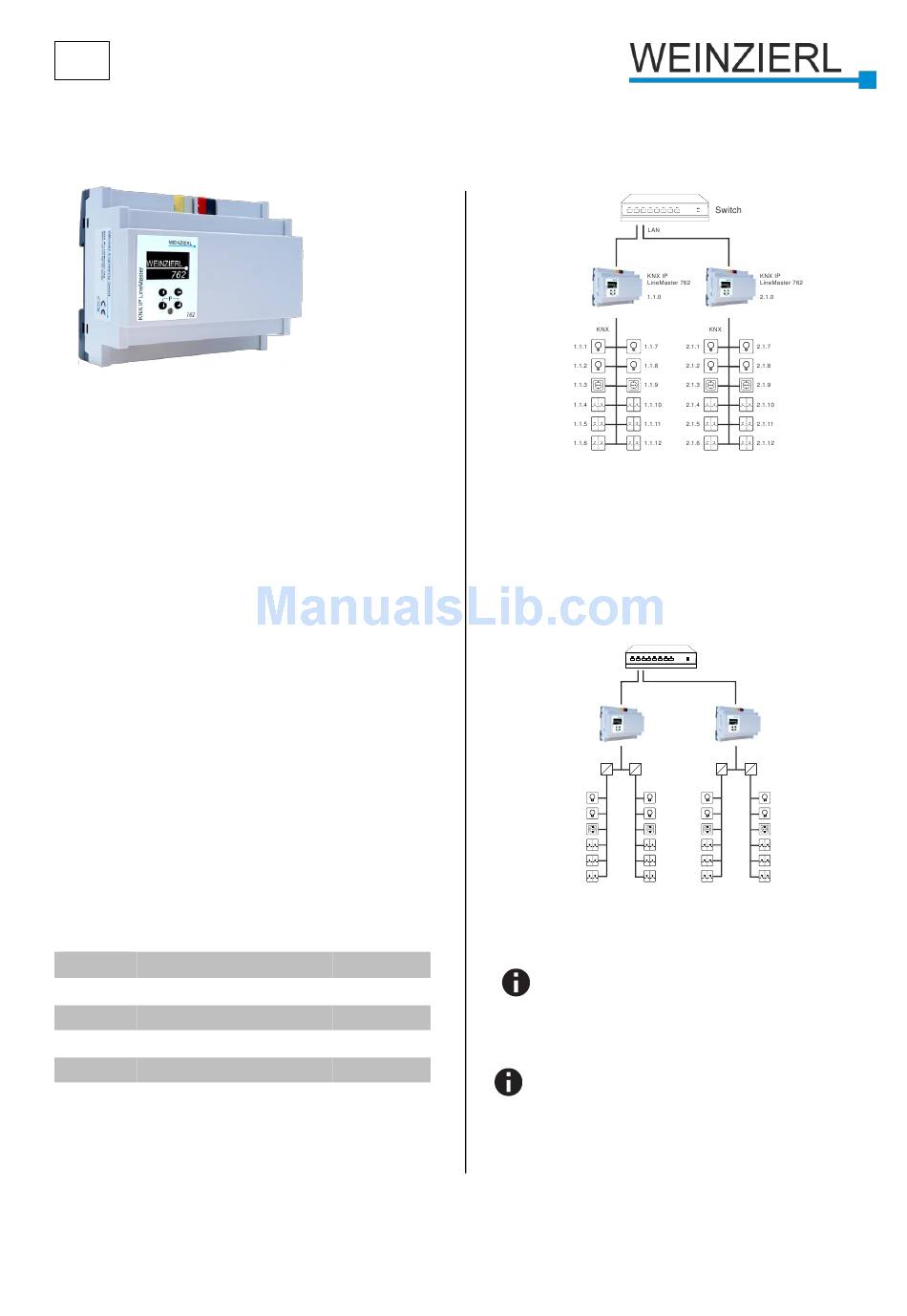

KNX IP LineMaster 762

Application

The KNX LineMaster 762 combines the essential functions of a
KNX bus line: Power supply with choke, KNX IP Router and KNX
IP Interface with a small footprint of only 6 units (108 mm).
The KNX IP Router in the KNX IP LineMaster 762 allows for-
warding of telegrams between different lines through a LAN (IP)
as a fast backbone. In addition this device is suited to connect a
PC to the KNX network e.g. for ETS® programming.
The IP address can be obtained by a DHCP server, by manual
configuration via the device menue or by downloading a config-
ured ETS application. This device works according to the
KNXnet/IP specification using the core, the device management,
the tunneling and the routing part.
The KNX IP LineMaster 762 has a filter table (8 kByte) and is
able to buffer up to 150 telegrams.
An easy to read OLED display on the front panel enables the
user to display the operating parameters locally on the device.
Coupler function (KNXnet/IP Routing)
The KNX IP LineMaster 762 operates as a line or backbone cou-
pler. In both cases, the LAN (IP) is used as a backbone.
The following table shows the application possibilities of the KNX
IP LineMaster 762 compared to the classic topology:
Classical
Topology
(without IP)
Area
TP
(Backbone)
KNX Line Coupler
Coupling
(max. 15 Pcs.)
Main line TP
KNX Line Coupler
Coupling
(max. 15x15 Pcs.)
Line TP
©2017 WEINZIERL ENGINEERING GmbH
IP coupling IP coupling
of areas of lines
(IP area coupl.) (IP line coupler)
IP IP
KNX IP Router Directly via
(max. 15 Pcs.) LAN Switch
TP IP
KNX Line Coupler KNX IP Router
(max. 15x15 Pcs.) (max. 225 Pcs..)
TP TP

KNX IP LineMaster 762 as line coupler

The individual address assigned to the KNX IP LineMaster 762
determines whether the device operates as a line or area cou-
pler. If the individual address is in the form of x.y.0 (x, y: 1..15),
the KNX IP LineMaster 762 operates as a line coupler. If it is in
the form of x.0.0 (x: 1..15), the KNX IP LineMaster 762 acts as a
backbone coupler.
LAN
KNX IP
LineMaster 762
1.0.0
KNX
1.1.0 1.2.0
1.1.1 1.2.1
1.1.2 1.2.2
1.1.3 1.2.3
1.1.4 1.2.4
1.1.5 1.2.5
1.1.6 1.2.6

KNX IP LineMaster 762 as area coupler

If the KNX IP LineMaster 762 is used as an area coupler
(x.0.0), there must not be a KNX IP Router in the topol-
ogy beneath it. For example, if a KNX IP Router has the
individual address 1.0.0, there must be no KNX IP
Router with the address 1.1.0.
If the KNX IP LineMaster 762 is used as a line coupler
(x.y.0), there must not be a KNX IP Router in the topol-
ogy above it. For example, if a KNX IP Router has the in-
dividual address 1.1.0, there must be no KNX IP Router
with the address 1.0.0.
Switch
KNX IP
LineMaster 762
2.0.0
KNX
2.1.0 2.2.0
2.1.1 2.2.1
2.1.2 2.2.2
2.1.3 2.2.3
2.1.4 2.2.4
2.1.5 2.2.5
2.1.6 2.2.6
