Decon wheel MEM6145 Assembly Instructions

Advertisement

Quick Links

Assembly instructions for Quickie 2
MEM6145 and MEM6146

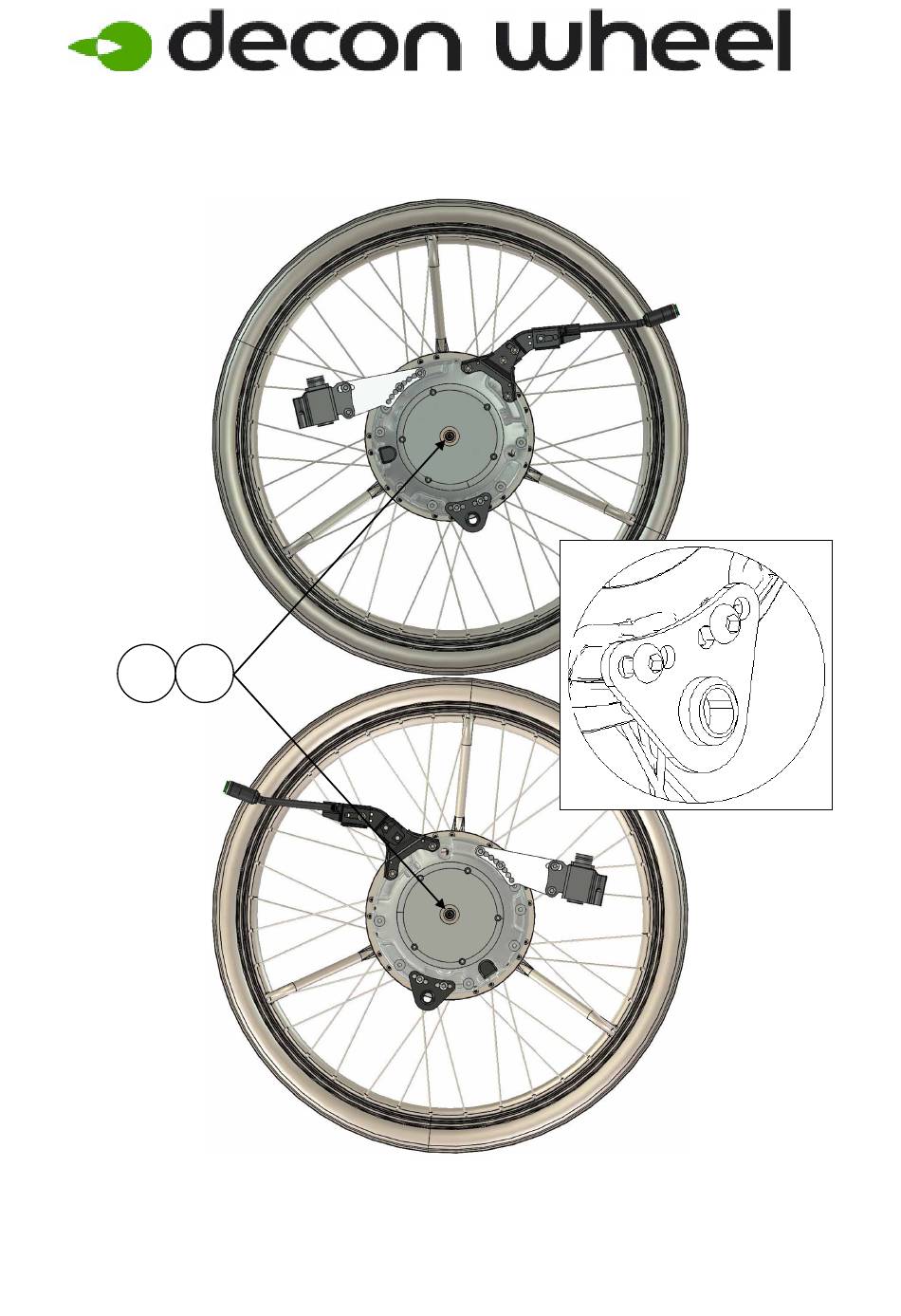

1. Remove wheels and hubsleevers.
12
13
Check the correct placement for the eMove with axle Ø12 x 51 with
Part number: XOE-2530E-B0 and Spacers with Part number: XOE-25383-00.
2020-06-26

Advertisement

loading
Need help?

Need help?

Do you have a question about the MEM6145 and is the answer not in the manual?

Questions and answers

Summary of Contents for Decon wheel MEM6145

  • Page 1 Assembly instructions for Quickie 2 MEM6145 and MEM6146 1. Remove wheels and hubsleevers. Check the correct placement for the eMove with axle Ø12 x 51 with Part number: XOE-2530E-B0 and Spacers with Part number: XOE-25383-00. 2020-06-26...
  • Page 2 2. Assembly the plate (right side) according to pictures Parts for right side mounting: Item No. Part Number Description HW063 Hub sleeve 405239 Nordlock Washer XSM16FJ Single Coil Washer M16 XSM16M Nut M16X1 Low 100 400 005 Spacer 100 400 007 Spacer XSM8BR Plain Washer M8...
  • Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Hubsleever. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
