Assembly instructions for Etac Cross5

MEM6153P and MEM6154P

1. Remove wheels and brakes.

2. Check the correct placement for the eMove, and that it is

Axle Ø12,0 x 51 with Part Number: XOE-2530E-BO

Spacer with Part Number: XOE-25383-00300052

Stop pins are assembled with Part Numbers: 290000, 300001 and XSM8ML.

2019-10-03

Need help?

Do you have a question about the MEM6153P and is the answer not in the manual?

Page 1 Assembly instructions for Etac Cross5 MEM6153P and MEM6154P 1. Remove wheels and brakes. 2. Check the correct placement for the eMove, and that it is Axle Ø12,0 x 51 with Part Number: XOE-2530E-BO Spacer with Part Number: XOE-25383-00300052 Stop pins are assembled with Part Numbers: 290000, 300001 and XSM8ML.

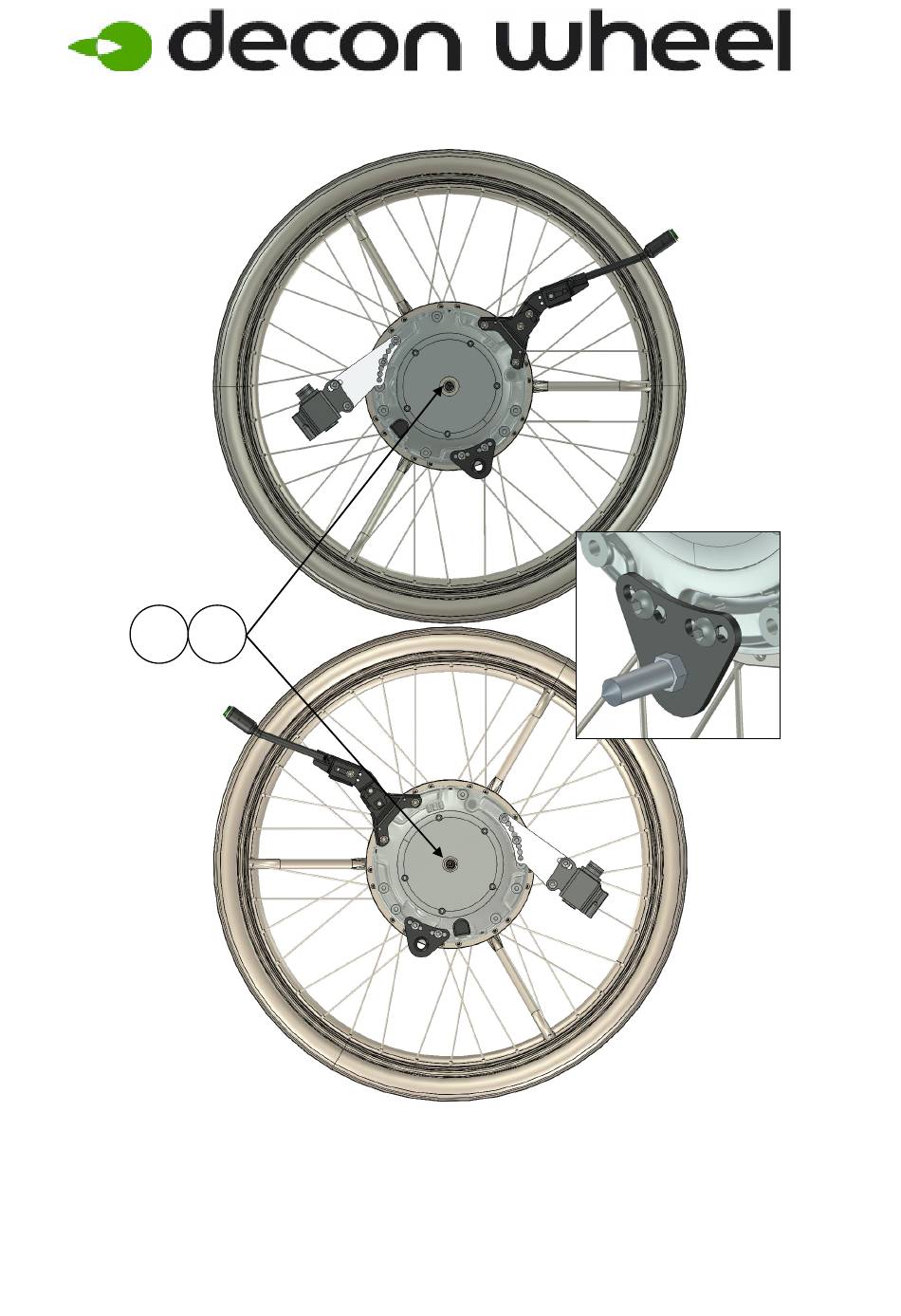

Page 2 3. Assembly the plate (right side) according to picture. Placement Options: It can be mounted in all rows vertically and horizontally, but only the center located in the respective holes in the frame. Note! The bracket can be placed in the front column, if you use the left bracket on the right side and the right bracket on the left side, see the right picture above.
Page 3 4. See picture above for mount the bracket. Parts for right side mounting: Item No. Part Number Description XSM8X40 Screw Round M8 x 40 XSM8ML Nut Self-Locking M8 405239 Nordlock Washer MED3100-02 Plate Cross5 HW063 Hub sleeve 310022 Bracket MED3100-01 Plate Cross5 100 400 084 Spacer Cross5...
Page 4 5. Now you can assemble the backrest battery bag on the back or as an alternate assembly as the pictures bellow. Note! Read the User manual before that you use the product. Do this and you get all information about the products warnings and notes for the operation. 2019-10-03...
