Decon wheel eMove MEM6003-30+ Assembly Instruction Manual

For panthera typ 30+

Download this manual

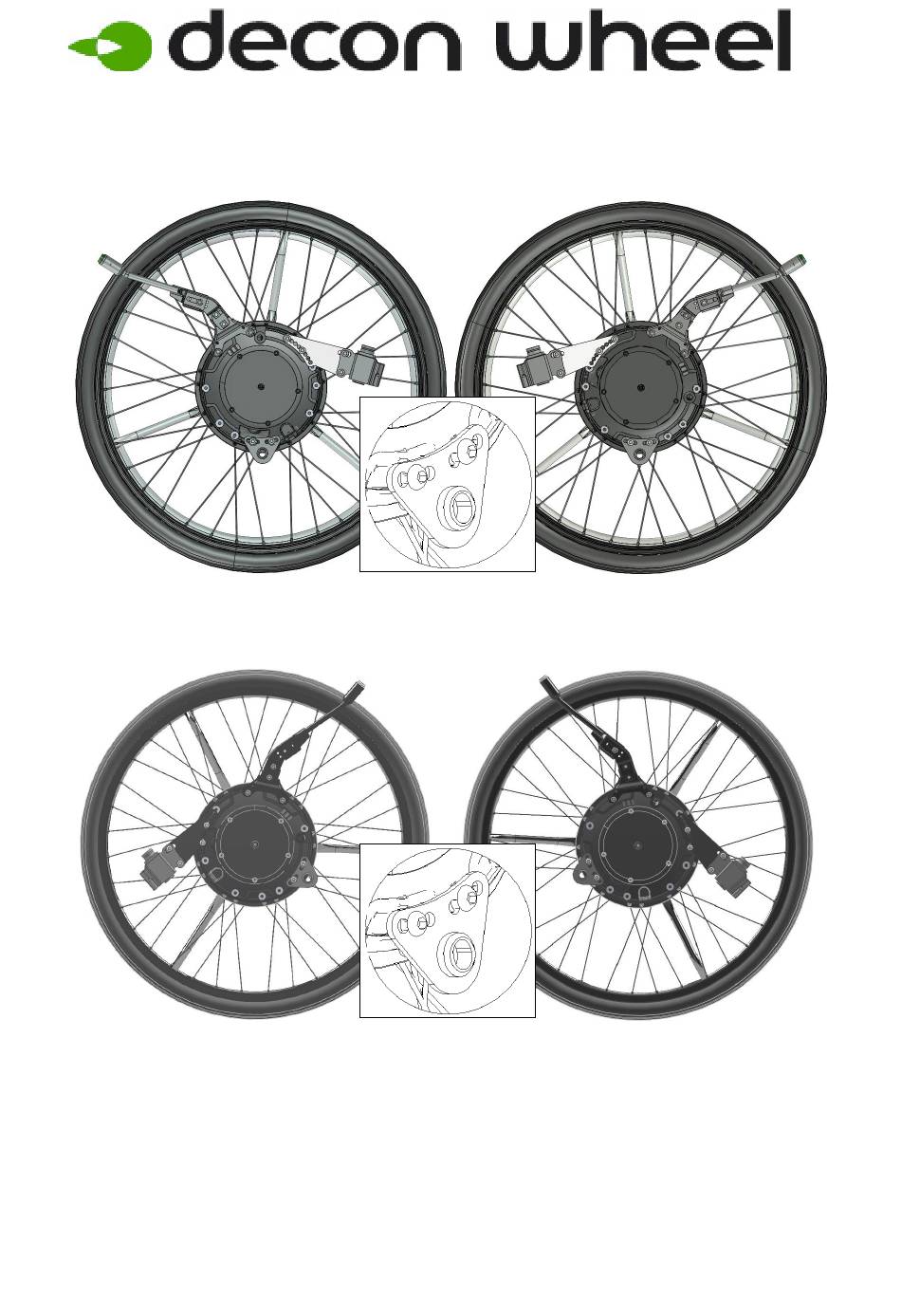

Assembly instruction New eMove for Panthera Typ 30+ with raised rear axle

MEM6003-30+ and MEM6004-30+

1. Remove the wheel on both sides.

2. Check the correct placement for the eMove, for arear axle with +10, +20, +30 and +40

see pictures above, and that it is mounted Ø12,7 x 46 axle with Part Number: XOE-

2530E-00.

3. Check the correct placement for the eMove, for arear axle with

+50 och +60 see pictures above, and that it is mounted Ø12,7 x 46

axle with Part Number: XOE-2530E-00.

2023-11-03

Need help?

Do you have a question about the eMove MEM6003-30+ and is the answer not in the manual?

Page 1 Assembly instruction New eMove for Panthera Typ 30+ with raised rear axle MEM6003-30+ and MEM6004-30+ 1. Remove the wheel on both sides. 2. Check the correct placement for the eMove, for arear axle with +10, +20, +30 and +40 see pictures above, and that it is mounted Ø12,7 x 46 axle with Part Number: XOE- 2530E-00.
Page 2 4. Mount the bracket depending on with model you have. +1,5 Bakaxel Note! If you do not have a +1,5 Rear axle, the spacer with position 2 is not included in the assembly. 5. Assembly the plate (right side) according to pictures above. Parts for right side mounting: Item No.
Page 3 Assembly instruction Type 30 with raisers +10 Assembly instruction Type 30 with raisers +20 Assembly instruction Type 30 with raisers +30 Assembly instruction Type 30 with raisers +40 2023-11-03...
Page 4 Assembly instruction Type 30 with raisers +50 Assembly instruction Type 30 with raisers +60 2023-11-03...
Page 5 6. Assemble the under placed battery bag or if have order a Lithium battery place the battery holder as the picture bellow MEM5014 MEM5002 MEM5003 XSFM5X12 XSM5ML XSSM8X16 XSM8ML MED5001 XSFM6X12 XSM6ML MEM5011 MEM5004 Note! Bambino is not included. 7. Adjust the parkering brake. 2023-11-03...
Page 6 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm 30 Nm M16x1 40 Nm M18x1 2023-11-03...
