Assembly instructions for XLT 2008 Active, Dynamic, Swing

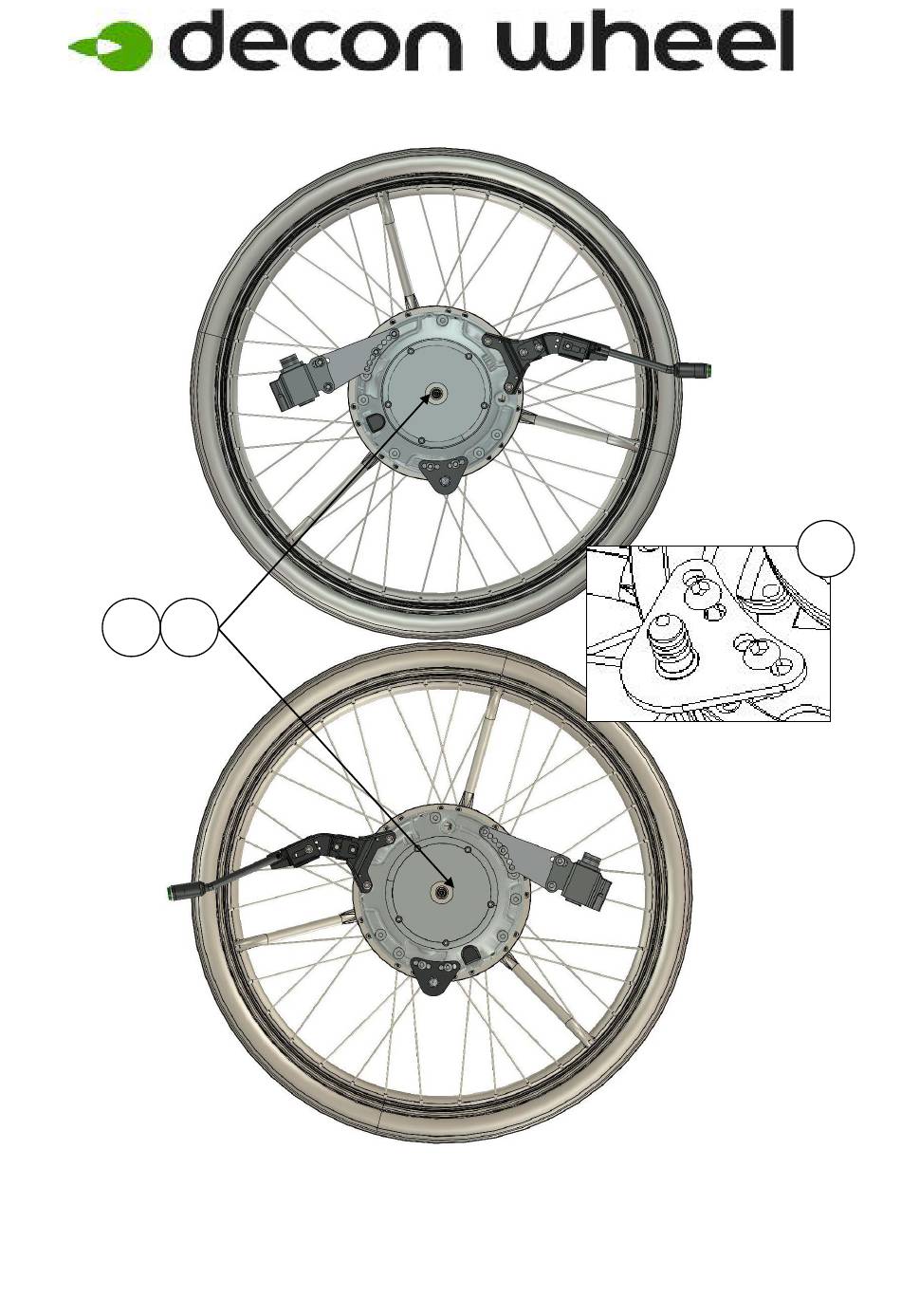

1. Remove wheel and hub sleeve on both sides.
9
10
2. Check the correct placement for the eMove, and that it is axle Ø12,0 x 51 with
Part Number: XOE-2530-BO and Spacer with Part Number: XOE-25383-00 and Stop
pins are assembled with Part Numbers: 320003.
2022-09-22
MEM6087P and MEM6088P
8
1(3)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel MEM6087P
Summary of Contents for Decon wheel MEM6087P
- Page 1 Assembly instructions for XLT 2008 Active, Dynamic, Swing MEM6087P and MEM6088P 1. Remove wheel and hub sleeve on both sides. 2. Check the correct placement for the eMove, and that it is axle Ø12,0 x 51 with Part Number: XOE-2530-BO and Spacer with Part Number: XOE-25383-00 and Stop pins are assembled with Part Numbers: 320003.
- Page 2 3. Note the placing of the adapter plate, see picture. Note! The brackets have placement opportunities. 4. Assembly the new plates (right side) according to picture. Parts for right side mounting: Item No. Part Number Description 100 400 007 Spacer XSM8X20 Screw Round M8 x 20 XSM8ML...
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Åtdragningsmoment / Tightening Gänga / Thread torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Åtdragningsmoment / Tightening Gänga / Thread torque M16x1 30 Nm...
