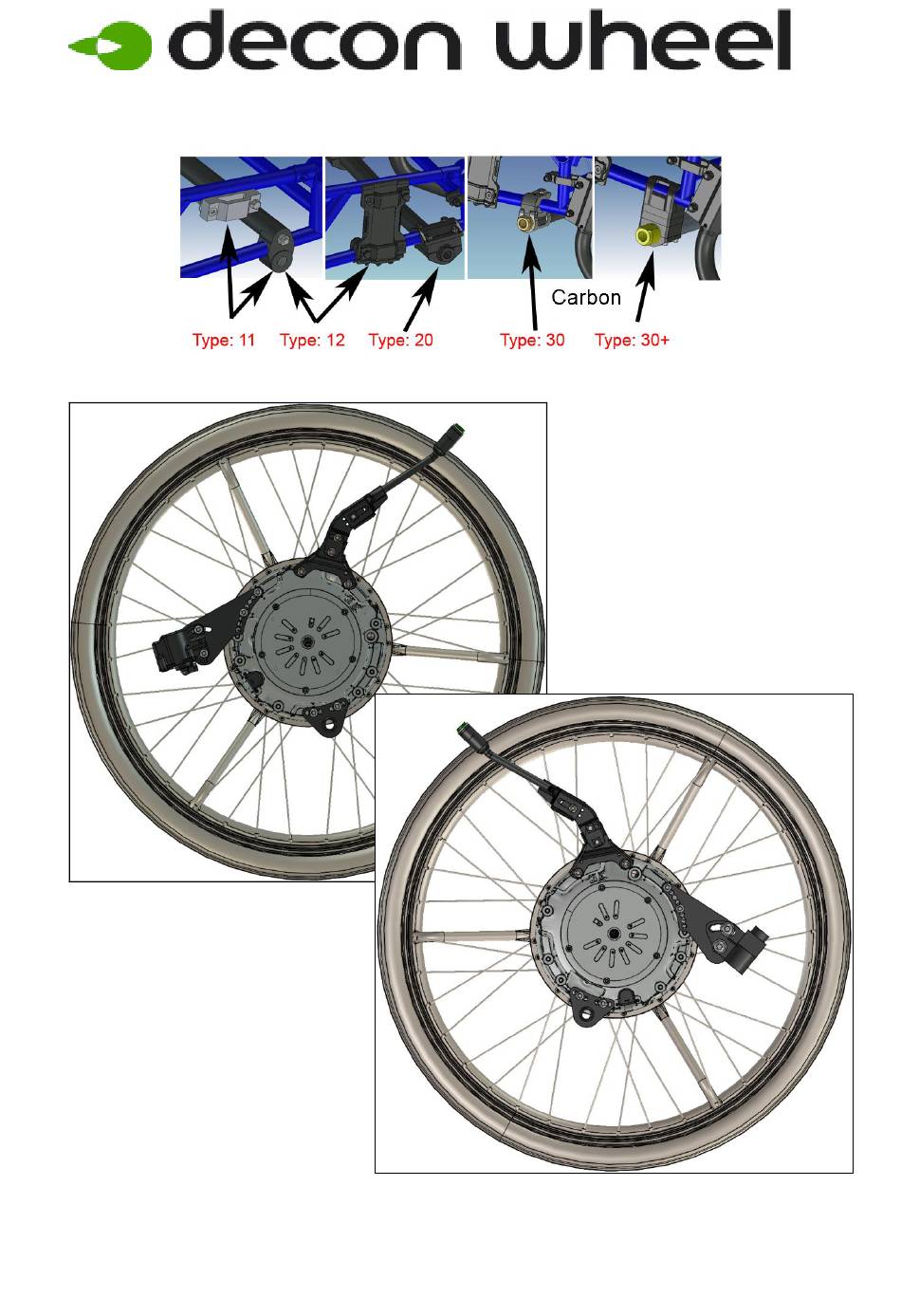

Assembly instructions for Panthera S2/U2, S2 Swing
MEM6003-20 and MEM6004-20
Type 20

1. Check that you have the correct model.

2. Remove wheels and brakes.

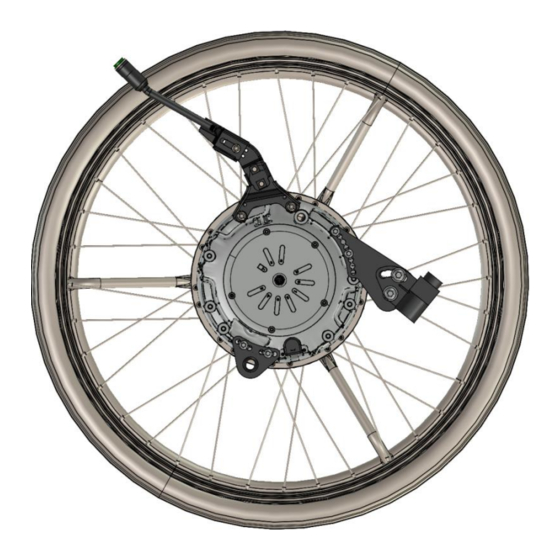

3. Check the correct placement for the eMove and assemble with
axle Ø12,7-46 with part number: X0E-2530E-00.
2016-05-10
Page: 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panthera S2 and is the answer not in the manual?

Questions and answers

Related Manuals for Decon wheel Panthera S2

Summary of Contents for Decon wheel Panthera S2

  • Page 1 Assembly instructions for Panthera S2/U2, S2 Swing MEM6003-20 and MEM6004-20 Type 20 1. Check that you have the correct model. 2. Remove wheels and brakes. 3. Check the correct placement for the eMove and assemble with axle Ø12,7-46 with part number: X0E-2530E-00.
  • Page 2 4. Assembly the plate (left side) according to picture. Parts pair for mounting on left side. Item No. Part Number Description HW069 Hub Sleeve 405239 Nordlock Washer XSM8ML Lock Nut M8 XSM8BR Plain Washer 8,4 XSM8X20 Screw M8x20 XSM8X50 Screw M8x50 290010 Clamp 100 400 001...
  • Page 3 5. Assemble the under placed battery bag or if have order a Lithium battery place the battery holder as the picture bellow. Assemble instruction for MEM5000 Rev6 on Panthera wheelchairs Item No. Part Number Description MEM5002 Hoop MEM5003 Clamp MEM5004 Clamp XSFM5X12 Screw Countersunk M5 x12...

This manual is also suitable for:

Panthera s2 swingPanthera u2Mem6003-20Mem6004-20
