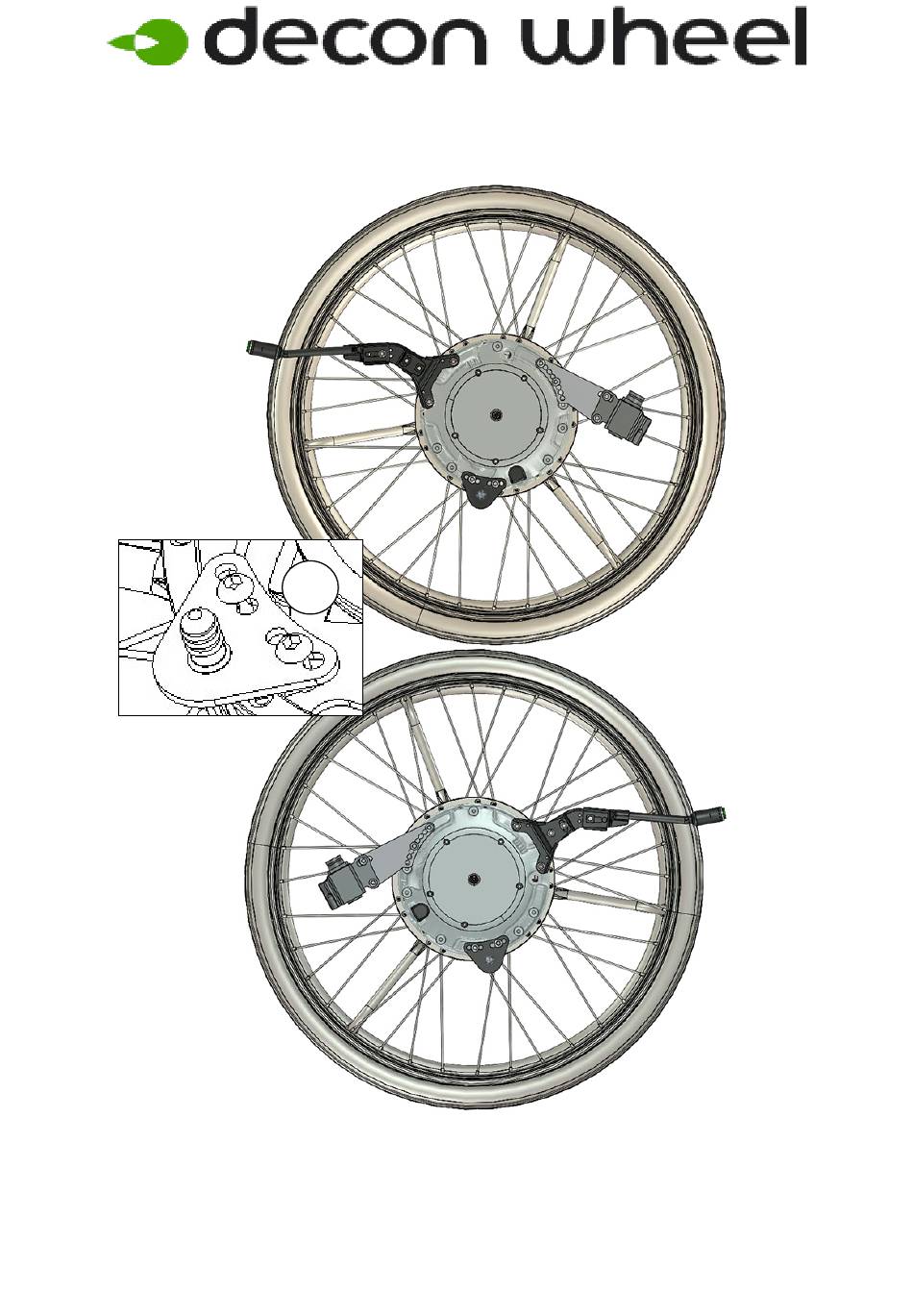

Assembly instructions for Berollka Slash (0–3˚)
MEM6423P and MEM6424P
1. Remove wheels and sleeves on both sides.
7 5
2.
3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with
Part Number: XOE-2530E-C0 without axle spacer and Stop pins are assembled
with Part Number: 320003.
2021-06-10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel MEM6423P
Summary of Contents for Decon wheel MEM6423P
- Page 1 Assembly instructions for Berollka Slash (0–3˚) MEM6423P and MEM6424P 1. Remove wheels and sleeves on both sides. 3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with Part Number: XOE-2530E-C0 without axle spacer and Stop pins are assembled with Part Number: 320003.
- Page 2 4. Assembly of the plate according to picture. Parts for right side mounting: Item No. Part Number Description 310069 Clamp Slash MC6SM8X25 Screw Socket M8 x 25 310068R Bracket Right side XSM6X12 Screw Rounded M6 x 12 320003 Bracket Note! If you only order the mounting set, the axle is not included, for replacement see the service manual.
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
