Assembly instructions for Tekna Tilt 2

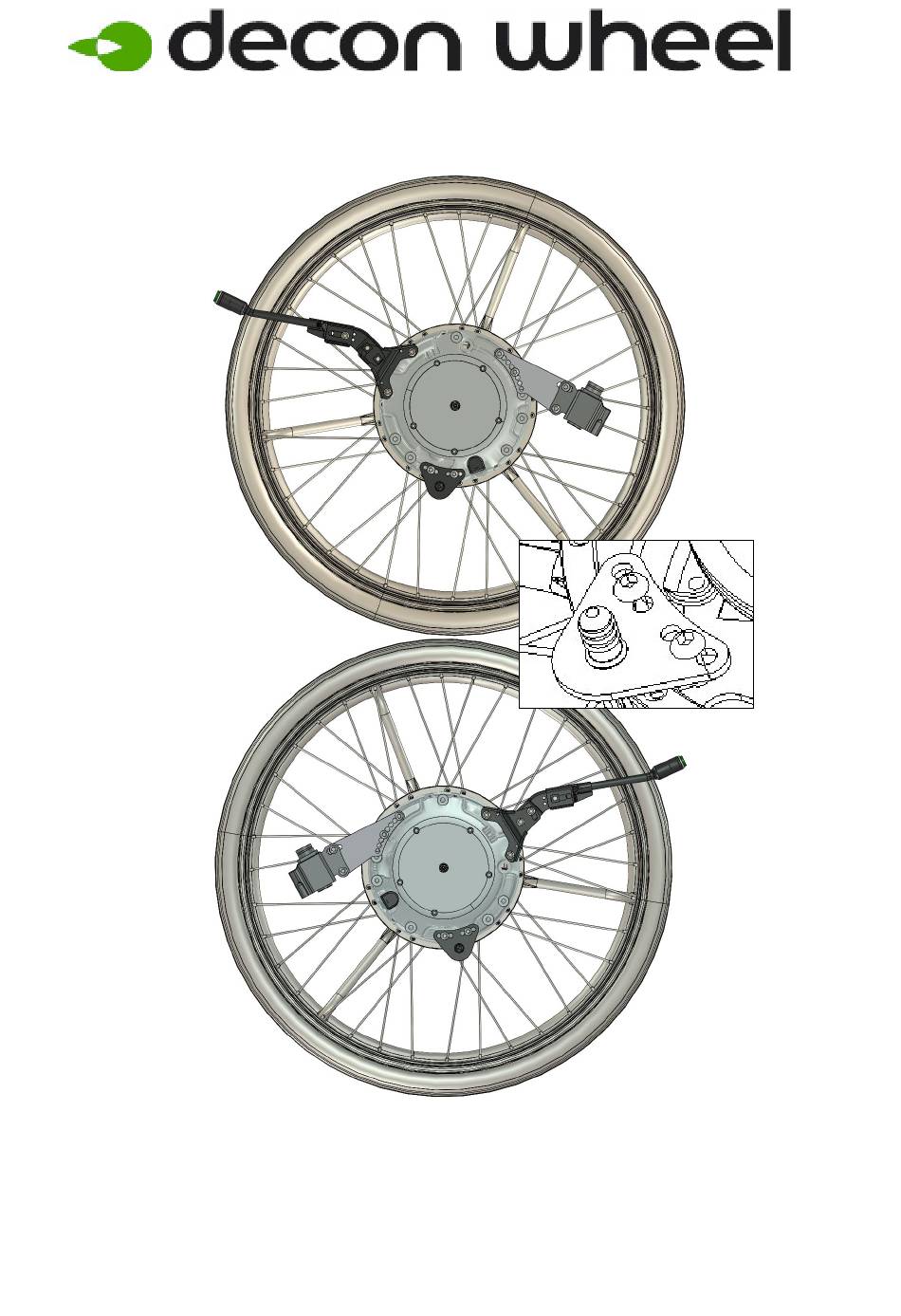

1. Remove wheels and sleeves on both sides.
2. Check the correct placement for the eMove with axle Ø12,7 x 46 with
Part number: XOE-2530E-00 and Stop pins is assembled with
Part Number: 320003.
MEM6401P and MEM6402P
2020-10-05
Advertisement
Related Manuals for Decon wheel MEM6401P
Summary of Contents for Decon wheel MEM6401P
- Page 1 Assembly instructions for Tekna Tilt 2 MEM6401P and MEM6402P 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the eMove with axle Ø12,7 x 46 with Part number: XOE-2530E-00 and Stop pins is assembled with Part Number: 320003.
- Page 2 3. Assembly of the plate (right side) according to pictures. Parts for one side mounting: Item No. Part Number Description 100 400 001 Spacer 100 400 003 Spacer 100 400 004 Spacer 100 400 007 Spacer 100 400 017 Spacer HW069 Sleeve M16x1/12,7 XSM16M...
- Page 3 Brakes adjustment Parts for one side mounting: Item No. Part Number Description 100 400 044 Spacer XSM6X40 Screw Round M6 x 40 2020-10-05...
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
