Assembly instructions for Trigo T
MEM6419P and MEM6420P

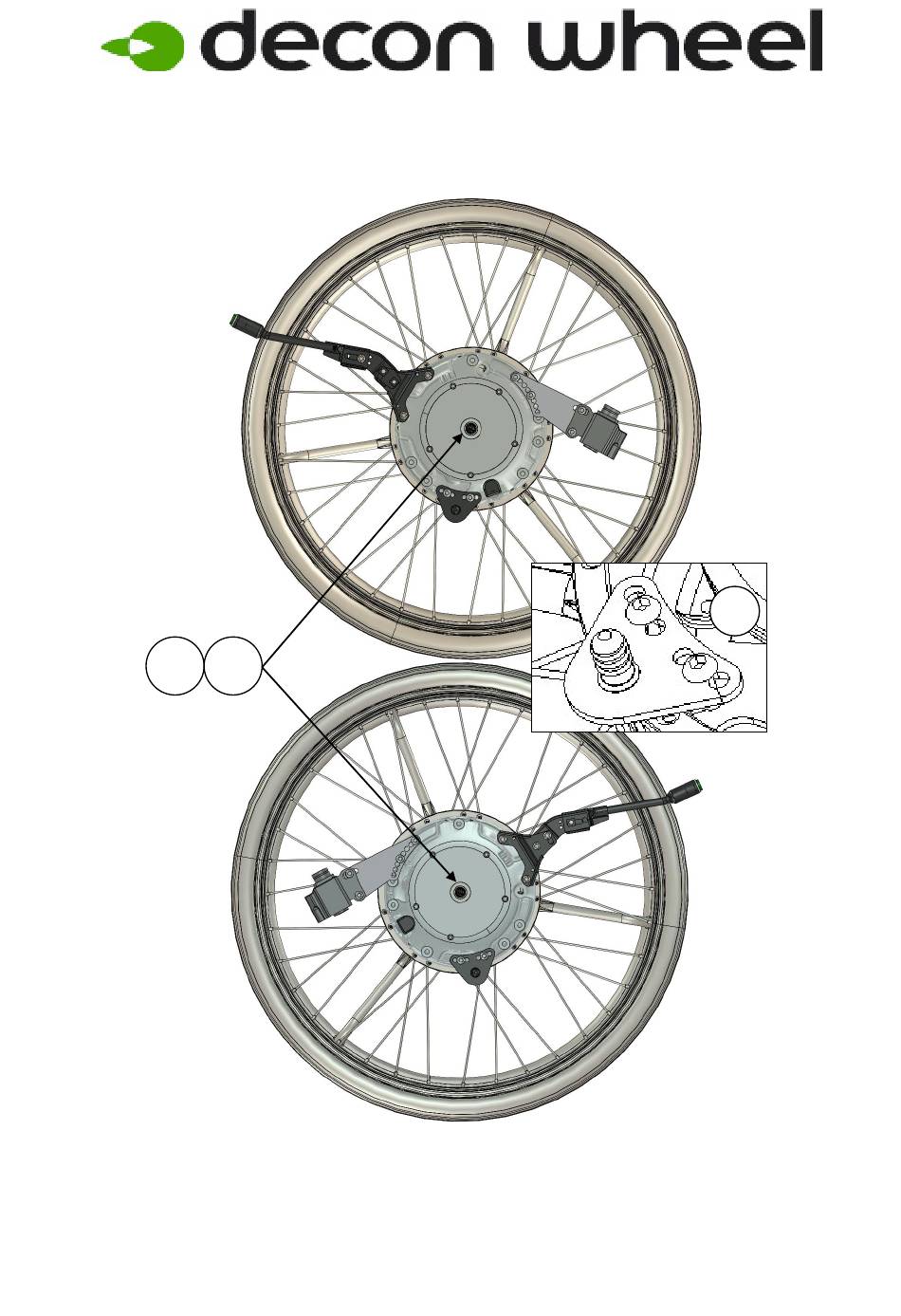

1. Remove wheels and sleeves with bracket.
6
7
8
2. Check the correct placement for the eMove, and that it is axle Ø12,0 x 51 with
Part Number: XOE-2530E-B0 and Spacer with Part Number: XOE-25383-00 and
Stop pins are assembled with Part Number: 320003.
2021-03-31
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel MEM6419P
Summary of Contents for Decon wheel MEM6419P
- Page 1 Assembly instructions for Trigo T MEM6419P and MEM6420P 1. Remove wheels and sleeves with bracket. 2. Check the correct placement for the eMove, and that it is axle Ø12,0 x 51 with Part Number: XOE-2530E-B0 and Spacer with Part Number: XOE-25383-00 and Stop pins are assembled with Part Number: 320003.
- Page 2 3. Assemble the plate (right side) according to picture. Parts for right side mounting: Item No. Part Number Description HW063 Sleeve 310061 Bracket Trigo T XSM8X12 Screw Round - M8 x 12 310022 Bracket 405239 Nordlock Washer M16 320003 Stop pin XOE-25383-00 Spacer 12,0 93440-120520...
- Page 3 Brake adjustment Item No. Part Number Description 100 400 018 Spacer XSM6FJ Single coil Washer M6 XSM6X40 Screw Rounded M6 x 40 Standard Wheels assembly with eMove sleeves. Item No. Part Number Description 100 400 110 Spacer 93440-120520 Circlip 2021-03-31...
- Page 4 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Sleeves. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
