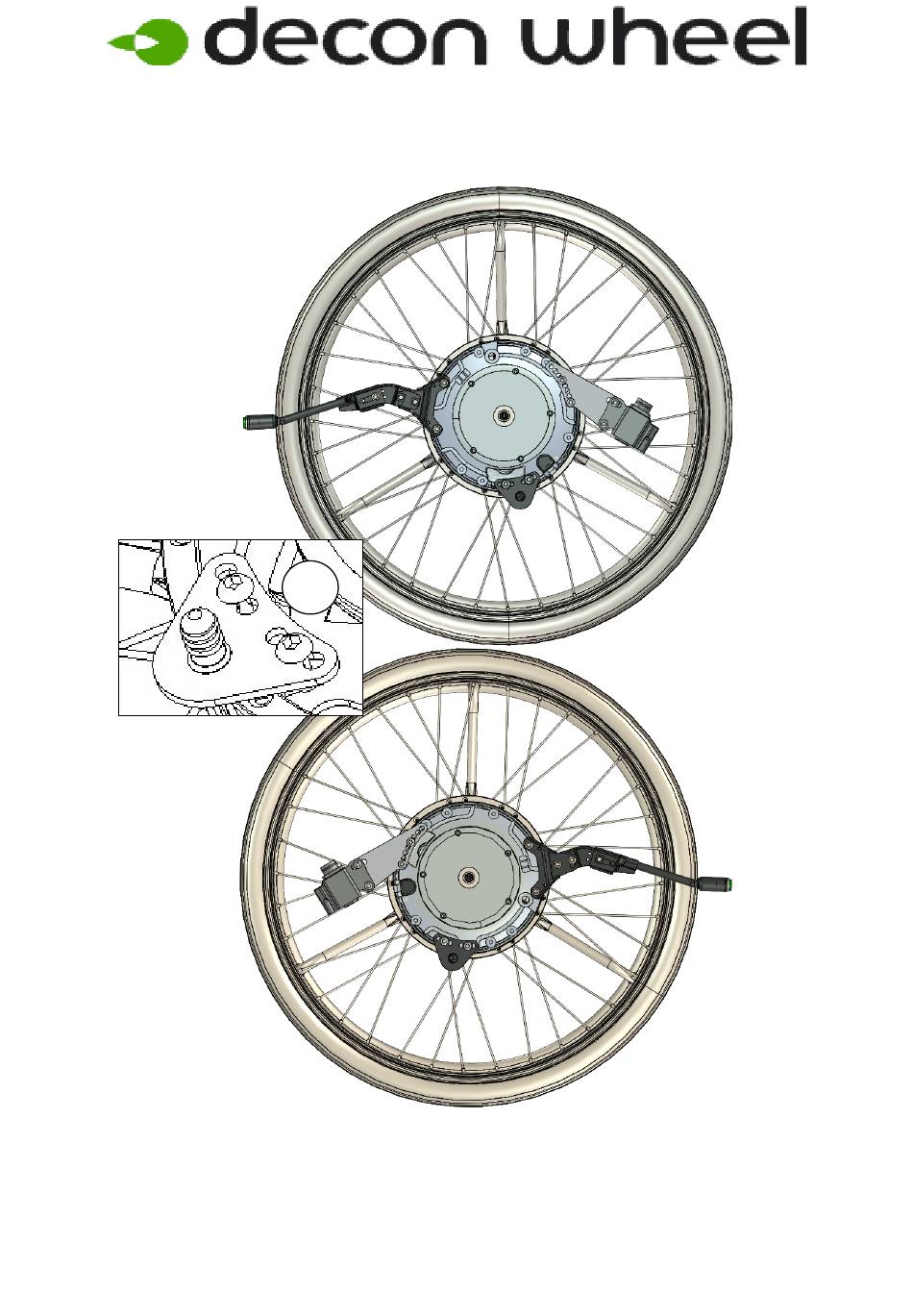

Assembly instructions for Exello Edge
MEM6439P and MEM6440P
1. Remove wheels and sleeves on both sides.
7 9
2.
3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with
Part Number: XOE-2530E-C0 without axle spacer and Stop pins are assembled
with Part Number: 320003.
2021-07-14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel Exello Edge MEM6439P
Summary of Contents for Decon wheel Exello Edge MEM6439P
- Page 1 Assembly instructions for Exello Edge MEM6439P and MEM6440P 1. Remove wheels and sleeves on both sides. 3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with Part Number: XOE-2530E-C0 without axle spacer and Stop pins are assembled with Part Number: 320003.
- Page 2 4. Assembly of the plate according to picture. Remember to use thread lock on all screws and the sleeves. Parts for right side mounting: ITEM PART NUMBER DESCRIPTION HW096 Sleeve 310031 Bracket 405241 Nordlock Washer 100 400 016 Spacer 340007 Clamp 340008 Clamp...
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
