Decon wheel Mobilex Dolphin MEM6443P Assembly Instructions

Assembly instructions for Mobilex Dolphin

MEM6443P and MEM6444P

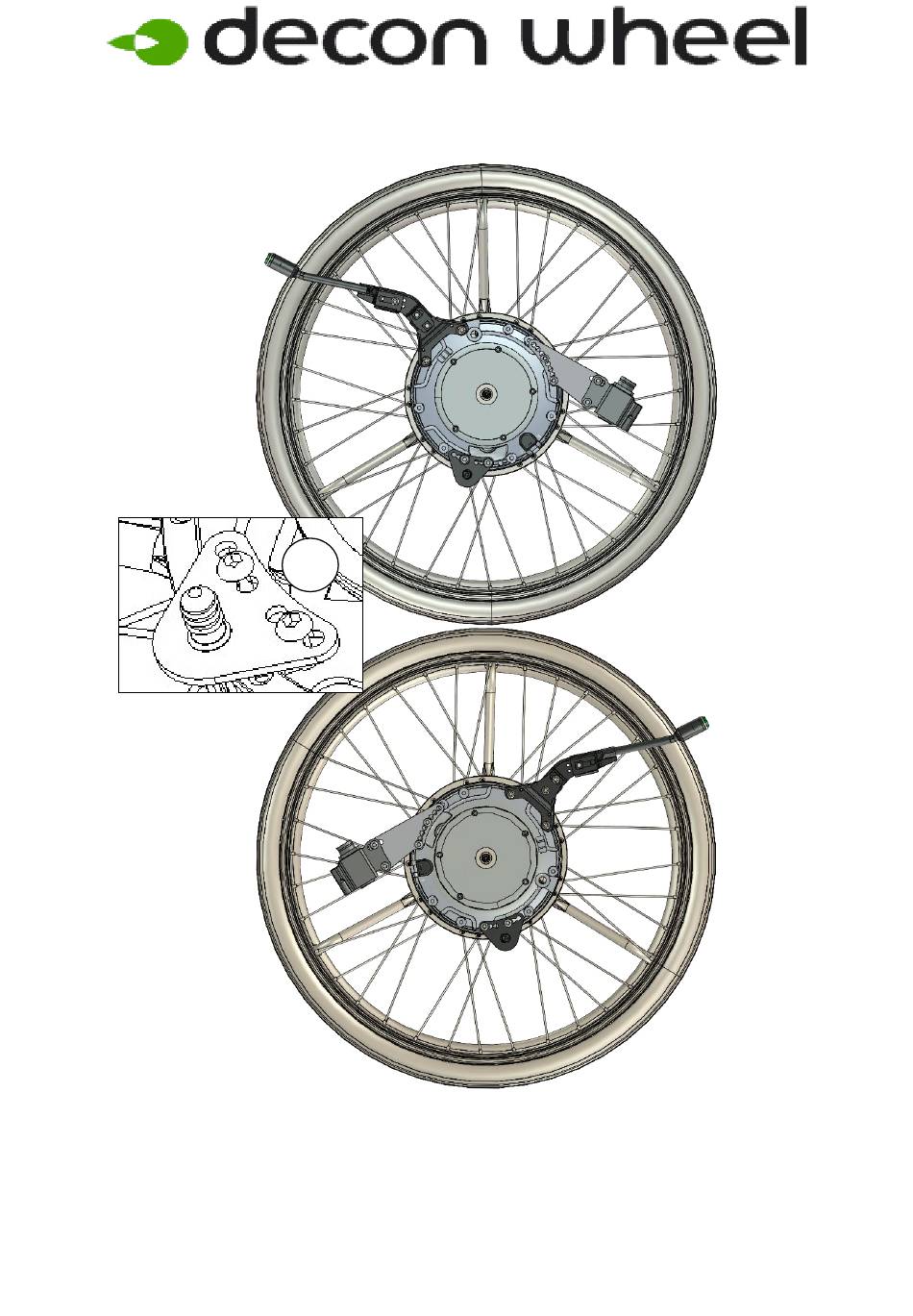

1. Remove wheels and sleeves on both sides.

7 8

3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with

Part Number: XOE-2530E-B0 and the axle spacer with

Part Number: XOC-25383-00 and Circlip with Part Number: 93440-120520

and Stop pins are assembled with Part Number: 320003.

2021-07-15

Table of Contents

Need help?

Do you have a question about the Mobilex Dolphin MEM6443P and is the answer not in the manual?

Page 1 Assembly instructions for Mobilex Dolphin MEM6443P and MEM6444P 1. Remove wheels and sleeves on both sides. 3. Check the correct placement for the eMove, and that it is axle Ø12,7 x 51 with Part Number: XOE-2530E-B0 and the axle spacer with Part Number: XOC-25383-00 and Circlip with Part Number: 93440-120520 and Stop pins are assembled with Part Number: 320003.
Page 2 4. Assembly of the plate according to picture. Parts for right side mounting: ITEM PART NUMBER DESCRIPTION 310031 Bracket HW084 Sleeve 405241 Nordlock Washer XSM18M Nut M18 Low 100 400 008 Spacer XSM8ML Lock Nut M8 XSM8X30 Screw M8 x 30 320003 Bracket Note! If you only order the mounting set, the axle, axle spacer or circlip are not included, for...
Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
