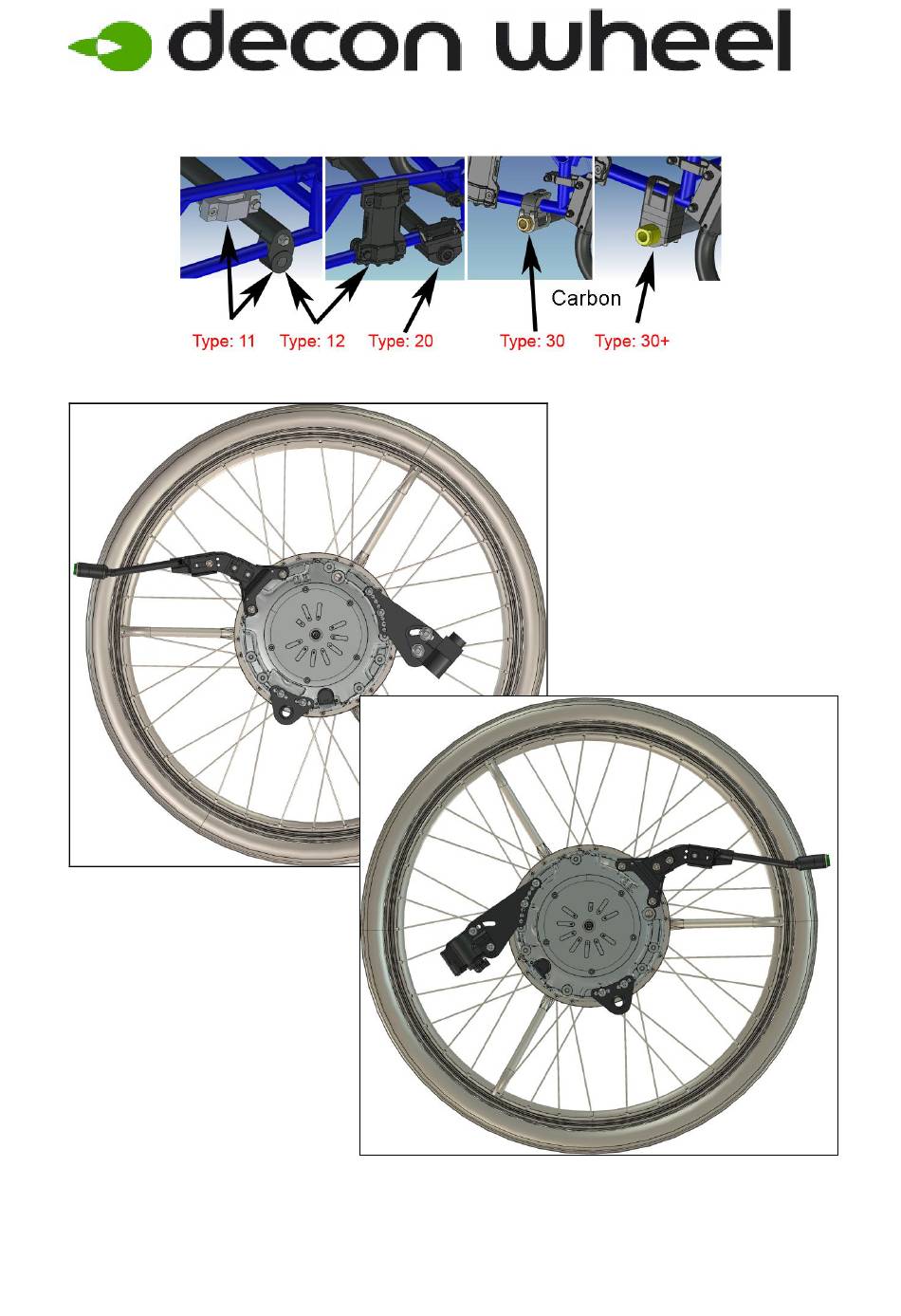

Assembly instructions for Panthera S2/U2, S2 Swing, Bambino
MEM6003-11/12 and MEM6004-11/12
Type 11, Type12
1. Check that you have the correct model.
2. Remove wheels and brakes.
3. Check the correct placement for the eMove, see pictures above and check that it is
Ø12,7 x 46 mm axle with Part Number: XOE-2530E-00.
2016-05-10
Page: 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel MEM6003-11
Summary of Contents for Decon wheel MEM6003-11
- Page 1 Assembly instructions for Panthera S2/U2, S2 Swing, Bambino MEM6003-11/12 and MEM6004-11/12 Type 11, Type12 1. Check that you have the correct model. 2. Remove wheels and brakes. 3. Check the correct placement for the eMove, see pictures above and check that it is Ø12,7 x 46 mm axle with Part Number: XOE-2530E-00.
- Page 2 4. Assembly the plate (right side) according to picture. Parts for right side mounting: Item No. Part Number Description 290010 Clamp 100 400 004 Spacer 100 400 005 Spacer XSM8ML Lock Nut M8 100 400 003 Spacer XSM8BR Washer Plain M8 XSM8X50 Screw Socket M8 x 50 XOE-22294-B0...
- Page 3 5. Assemble the under placed battery bag or if have order a Lithium battery place the battery holder as the picture bellow. Assemble instructions for MEM5000 Rev6 on Panthera wheelchairs Item No. Part Number Description MEM5002 Hoop MEM5003 Clamp MEM5004 Clamp XSFM5X12 Screw Countersunk M5 x12...
