Decon wheel MEM6411P Assembly Instructions

Assembly instructions for TNS #ONE

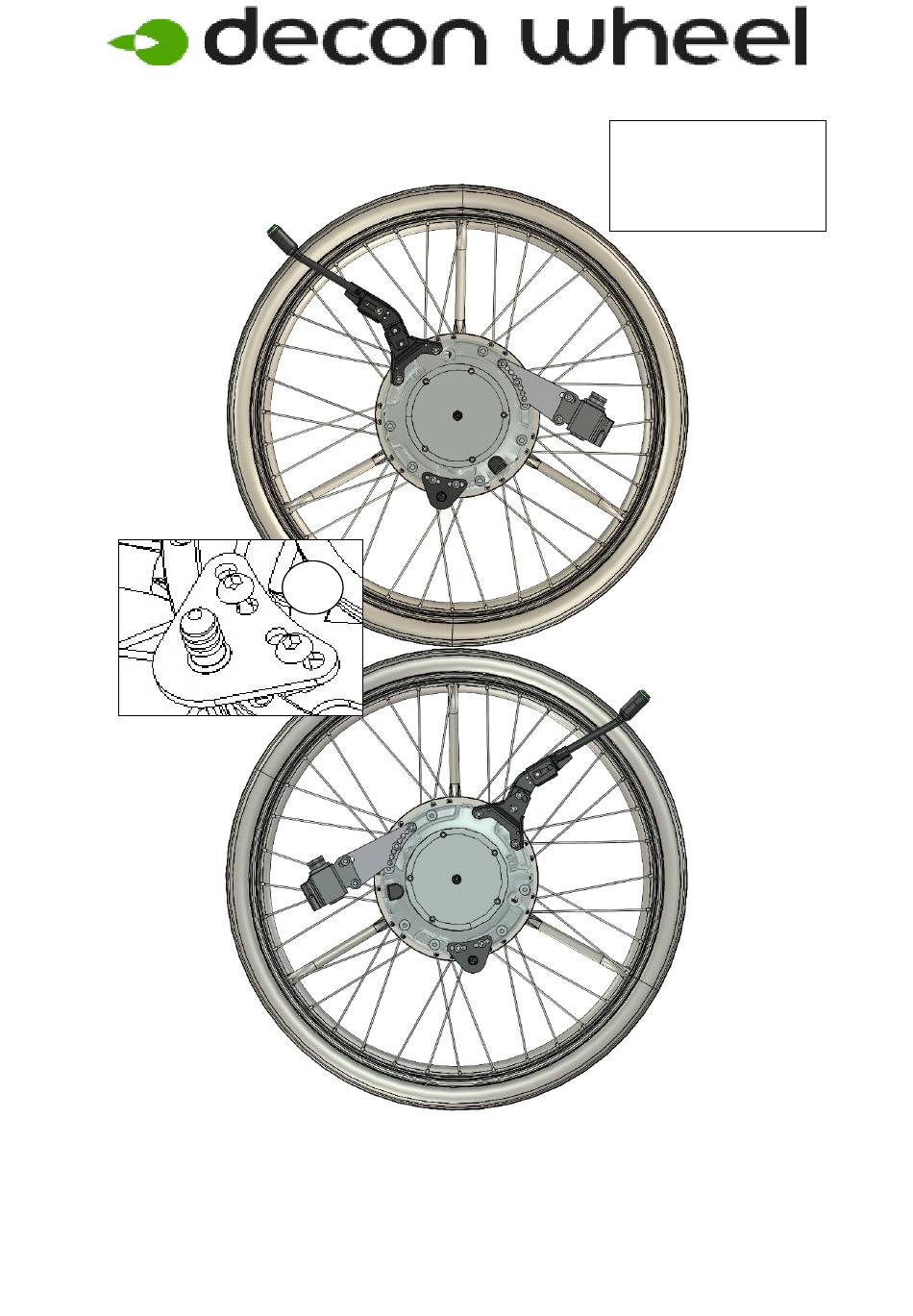

1. Remove wheels and sleeves on both sides.

2. Check the correct placement for the eMove, and that it is axle Ø12,7 x 46 with

Part Number: XOE-2530E-00 and Stop pins are assembled with Part Number:

320003.

MEM6411P and MEM6412P

Note!

Only wheelchairs with

welded mounting ear on

the rear axle.

2021-01-22

Table of Contents

Need help?

Do you have a question about the MEM6411P and is the answer not in the manual?

Page 1 Assembly instructions for TNS #ONE MEM6411P and MEM6412P Note! Only wheelchairs with 1. Remove wheels and sleeves on both sides. welded mounting ear on the rear axle. 2. Check the correct placement for the eMove, and that it is axle Ø12,7 x 46 with Part Number: XOE-2530E-00 and Stop pins are assembled with Part Number: 320003.
Page 2 3. Assembly of the plate according to picture. Parts for right side mounting: Item No. Part Number Description XSM6ML Locknut M6 405239 Nordlock Washer 100 400 108 Spacer XSM6X30 Screw M6x30 HW069 Sleeve 310058 Bracket 320003 Bracket Note! If you only order the mounting set, the axle is not included, for replacement see the service manual.
Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
