Assembly instructions for Impera, Impera Short, Kid, S, VR
MEM6251 and MEM6252

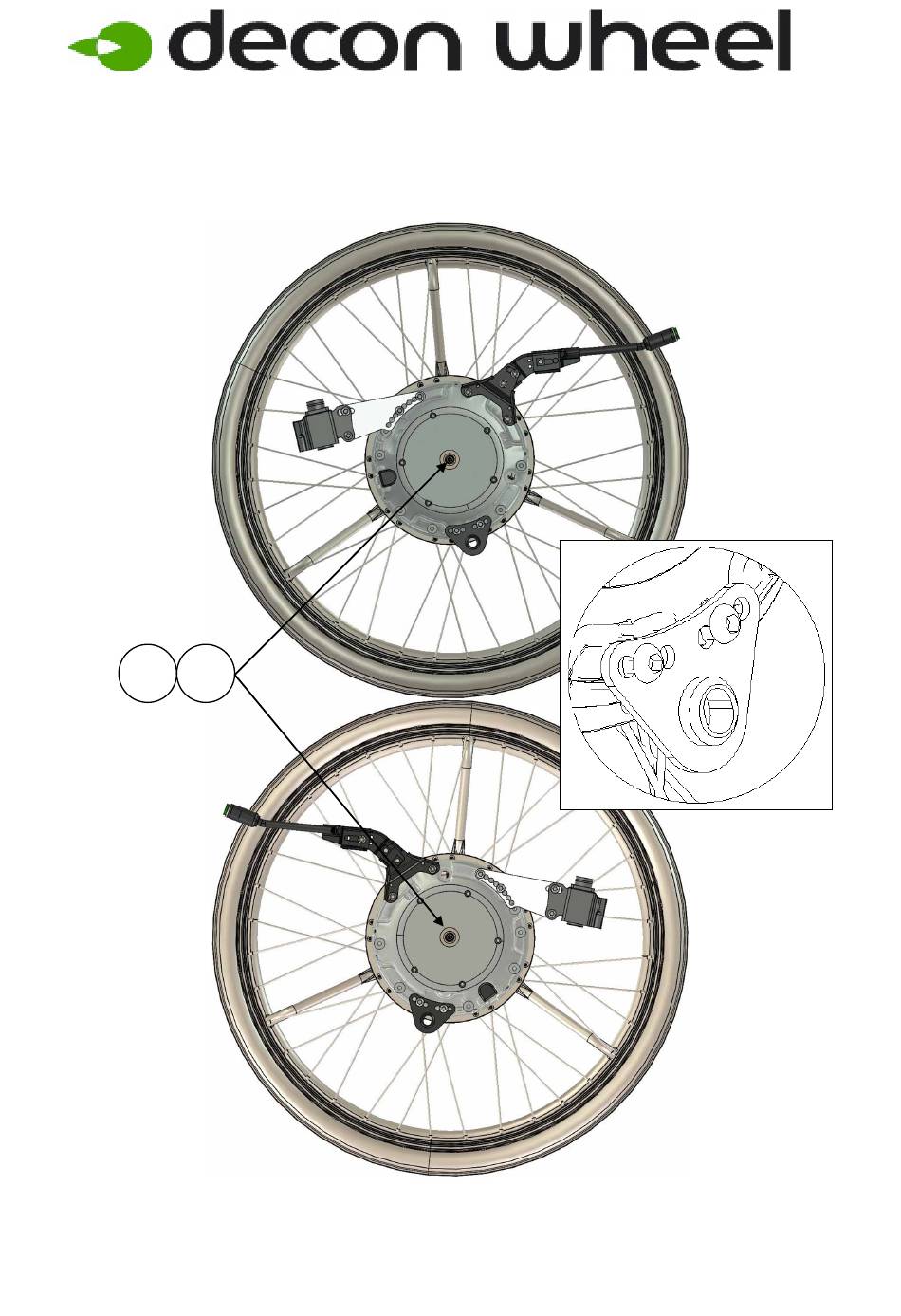

1. Remove wheel and hub sleeve on both sides.
13
14
2. Check the correct placement for the eMove with axle Ø12,0 x 51 with
Part number: XOE-2530E-B0 and Spacers with Part number: XOE-25383-00
2020-06-26
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel Impera
Summary of Contents for Decon wheel Impera
- Page 1 Assembly instructions for Impera, Impera Short, Kid, S, VR MEM6251 and MEM6252 1. Remove wheel and hub sleeve on both sides. 2. Check the correct placement for the eMove with axle Ø12,0 x 51 with Part number: XOE-2530E-B0 and Spacers with Part number: XOE-25383-00...
- Page 2 Assembly of the plate (right side) and the brake extender according to pictures. Parts for right side mounting: Item No. Part Number Description XOE-22294-1O Right Bracket Hole 18 100 400 014 Spacer 405241 Nordlock M18 Washer HW090 Sleeve XSM18M Nut M18 x1 low 100 400 079 Spacer 100 400 011...
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Åtdragningsmoment / Tightening Gänga / Thread torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor. Hubsleever. Åtdragningsmoment / Tightening Gänga / Thread torque M16x1 30 Nm...
