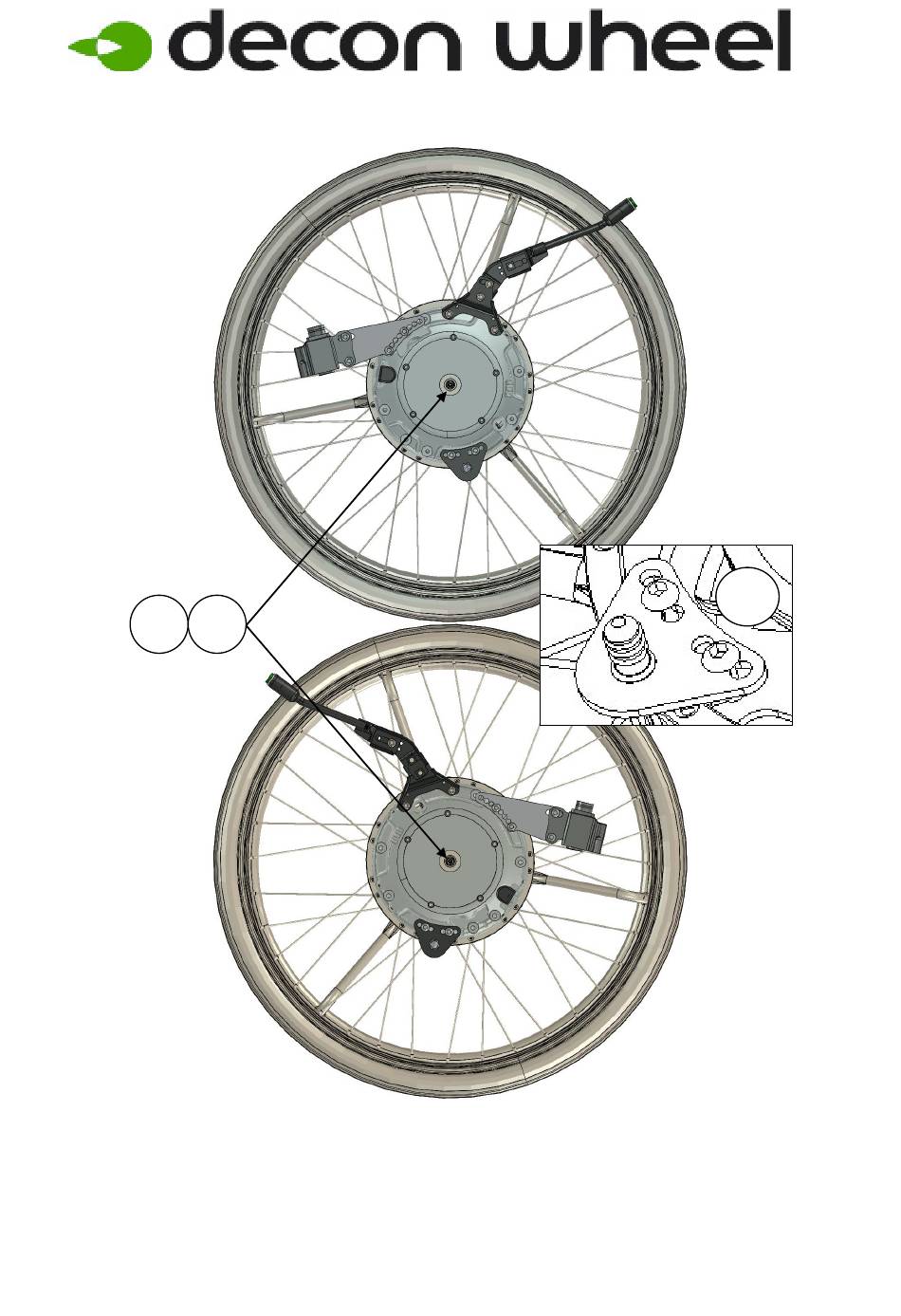

1. Remove wheels and brakes.
10
11
2. Check the correct placement for the eMove, and that the spacer with Part Number:
XOE-25383-00 and axle Ø12 x 51 with Part Number: XOE-2530E-B0 is mounted and
Stop pins are assembled with Part Number: 320003 .
Assembly instructions for Freetec
MEM6415P and MEM6416P
12
2021-01-18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Decon wheel Freetec MEM6415P
Summary of Contents for Decon wheel Freetec MEM6415P
- Page 1 Assembly instructions for Freetec MEM6415P and MEM6416P 1. Remove wheels and brakes. 2. Check the correct placement for the eMove, and that the spacer with Part Number: XOE-25383-00 and axle Ø12 x 51 with Part Number: XOE-2530E-B0 is mounted and Stop pins are assembled with Part Number: 320003 .
- Page 2 3. Assembly the plate (right side) according to picture. Different placement for the bracket is possible. Parts for right side mounting: ITEM PART NUMBER DESCRIPTION HW090 Sleeve 310045 Bracket 100 400 008 Spacer 100 400 016 Spacer 100 400 011 Spacer 405241 Nordlock Washer M18...
- Page 3 Åtdragningsmoment / Tightening torque Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsa. Sleeve. Gänga / Thread Åtdragningsmoment / Tightening torque M16x1 30 Nm M18x1...
