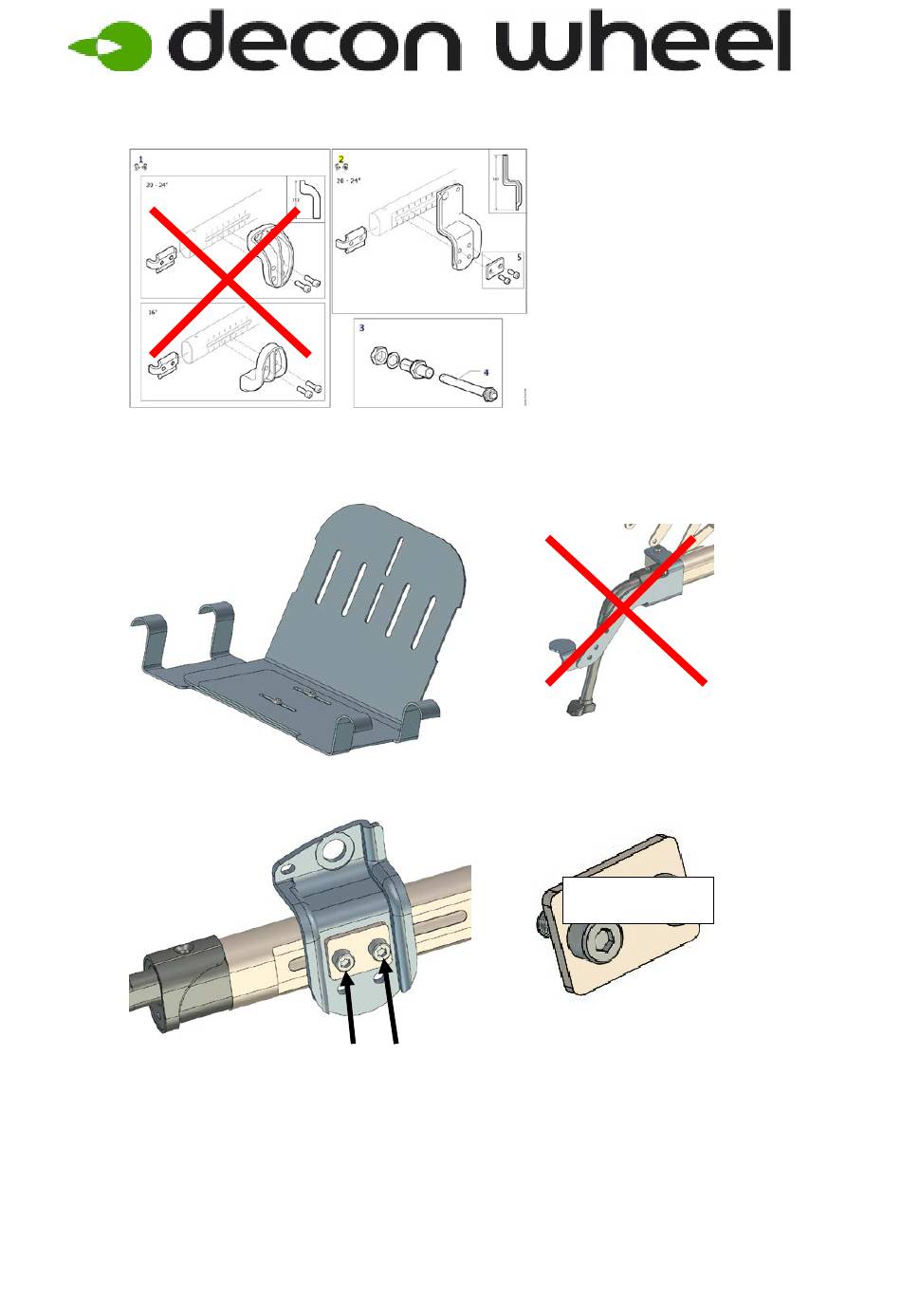

Decon wheel MEM6319 Assembly Instructions

Assembly instructions for Rea Dahlia
1. Check if you have the right type.
1. Check if it is possible to place the battery bag on the back of the seat, if so you can use
a back placed battery bag, if else you need to have the Invacare part Accessory Tray
with Part No: 1574433. The part is needed for assembly the battery. But if you use this
alternative you are not able to use the tilt peddle.
2. Remove wheel, brake, adapter bracket, brake handle on both sides.
3. The easiest way to remove the parts is to loosen the screws that hold the adapter
bracket. Do this on both sides and just lift up the wheelchair. After that you loosen the
screws that hold the brake handles. Remember too save the screws and bracket for
recycling, they are for assembling of the new brackets.
MEM6319 and MEM6320
Recycled parts
2017-11-09
