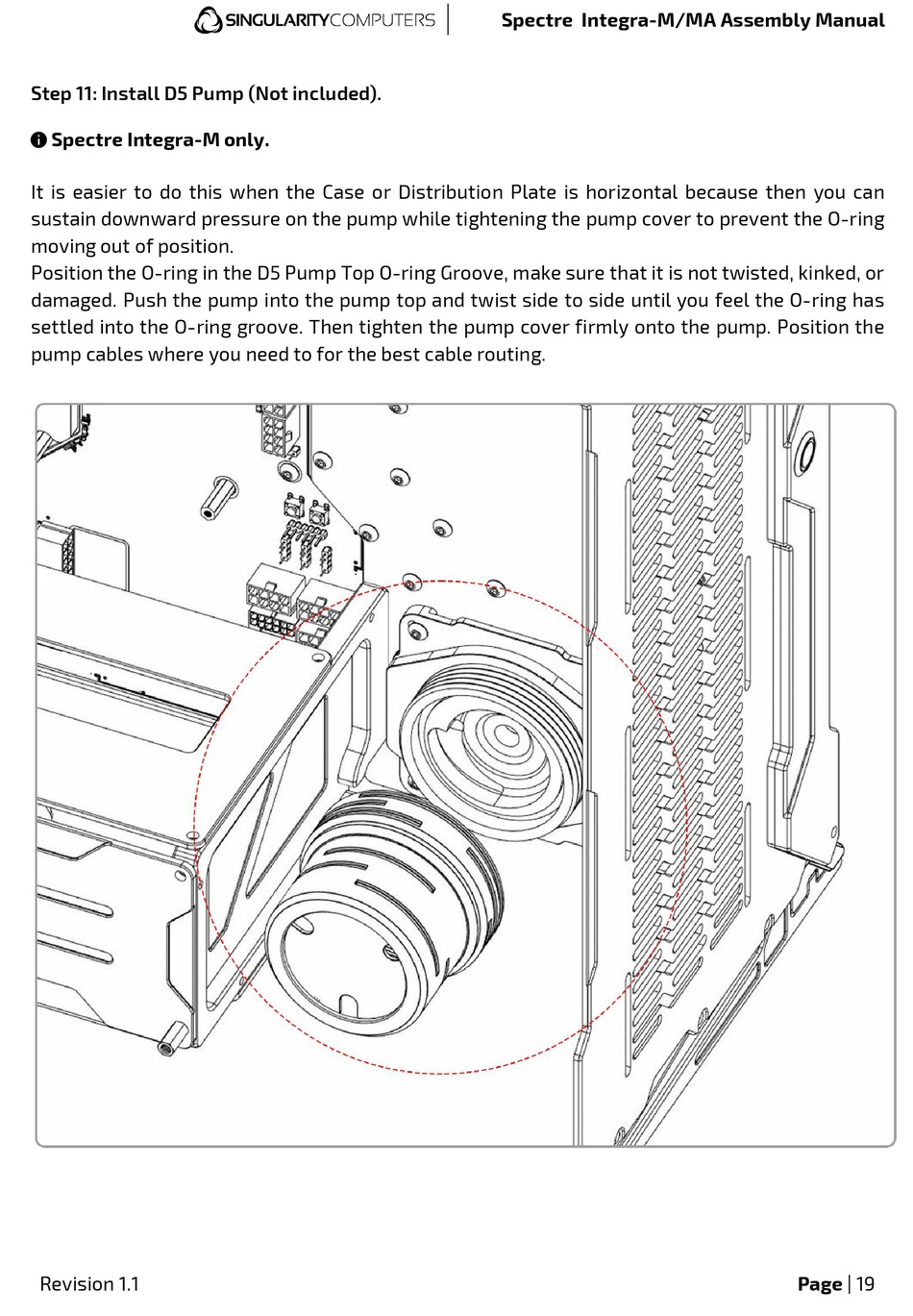

Spectre Integra-M/MA Assembly Manual
Step 11: Install D5 Pump (Not included).
Spectre Integra-M only.
It is easier to do this when the Case or Distribution Plate is horizontal because then you can
sustain downward pressure on the pump while tightening the pump cover to prevent the O-ring
moving out of position.
Position the O-ring in the D5 Pump Top O-ring Groove, make sure that it is not twisted, kinked, or
damaged. Push the pump into the pump top and twist side to side until you feel the O-ring has
settled into the O-ring groove. Then tighten the pump cover firmly onto the pump. Position the
pump cables where you need to for the best cable routing.
Revision 1.1
Page | 19
