Spectre Integra-M/MA Assembly Manual
.

Step 7: Install PCIe 4.0 Vertical GPU Mount

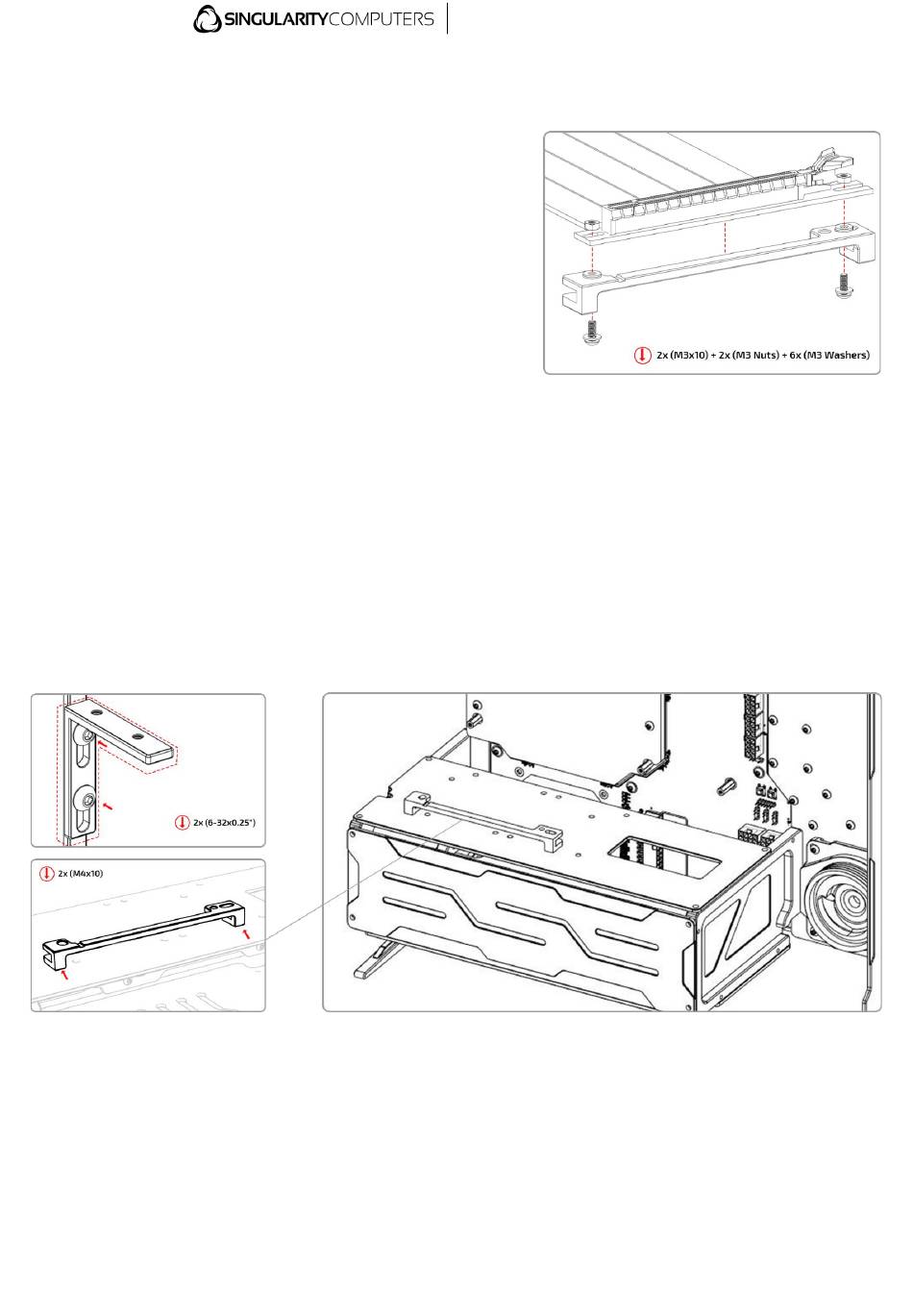

Step 1: Install Riser Cable.
Install the PCIe Riser Cable (not included). Check you
have the correct orientation (see diagram to the right).
The cutout side of the Vertical GPU Bracket PCIE 4.0
needs to line up with the protruding plastic cover under
the Vertical GPU Riser Cable. Install the Vertical GPU
Riser Cable onto the PCIE 4.0 Vertical GPU Bracket using
the 2x M3 x 10mm Fasteners, 2x M3 Nuts and 6 x M3
Washers (see the diagram to the right for fastener
orientation).
Step 2: Install PCIe 4.0 Vertical GPU Mount.
Remove the PSU Side Panel to gain access into the PSU Shroud. Install the Vertical GPU Bracket
PCIe 4.0 to the PSU Top Panel using the 2x M4 x 10mm Fasteners. The fasteners are installed from
underneath the PSU Top panel. There are several holes in the PSU Top Panel also for the 2
nd
Vertical GPU Mount PCIe 4.0 and SSD Mounting so be careful to select the correct mounting holes.
Install the Vertical GPU Angle using the x2 6-32 x 0.25" Fasteners. Be careful to select the correct
position on the Rear IO Panel so that the angle is at the correct height for your GPU.
Note: You may need to adjust the position of the Riser Cable on the PCIE 4.0 Vertical GPU bracket
for correct GPU alignment.
Revision 1.1 Page | 15
