Step 8: Install Pcie 4.0 2 Nd Vertical Gpu Mount - SINGULARITY COMPUTERS SPECTRE INTEGRA-M Assembly Manual

Step 8: Install PCIe 4.0 2
(This add-on needs to be purchased separately; it is not included with the case).
Step 1: Install Riser Cable.

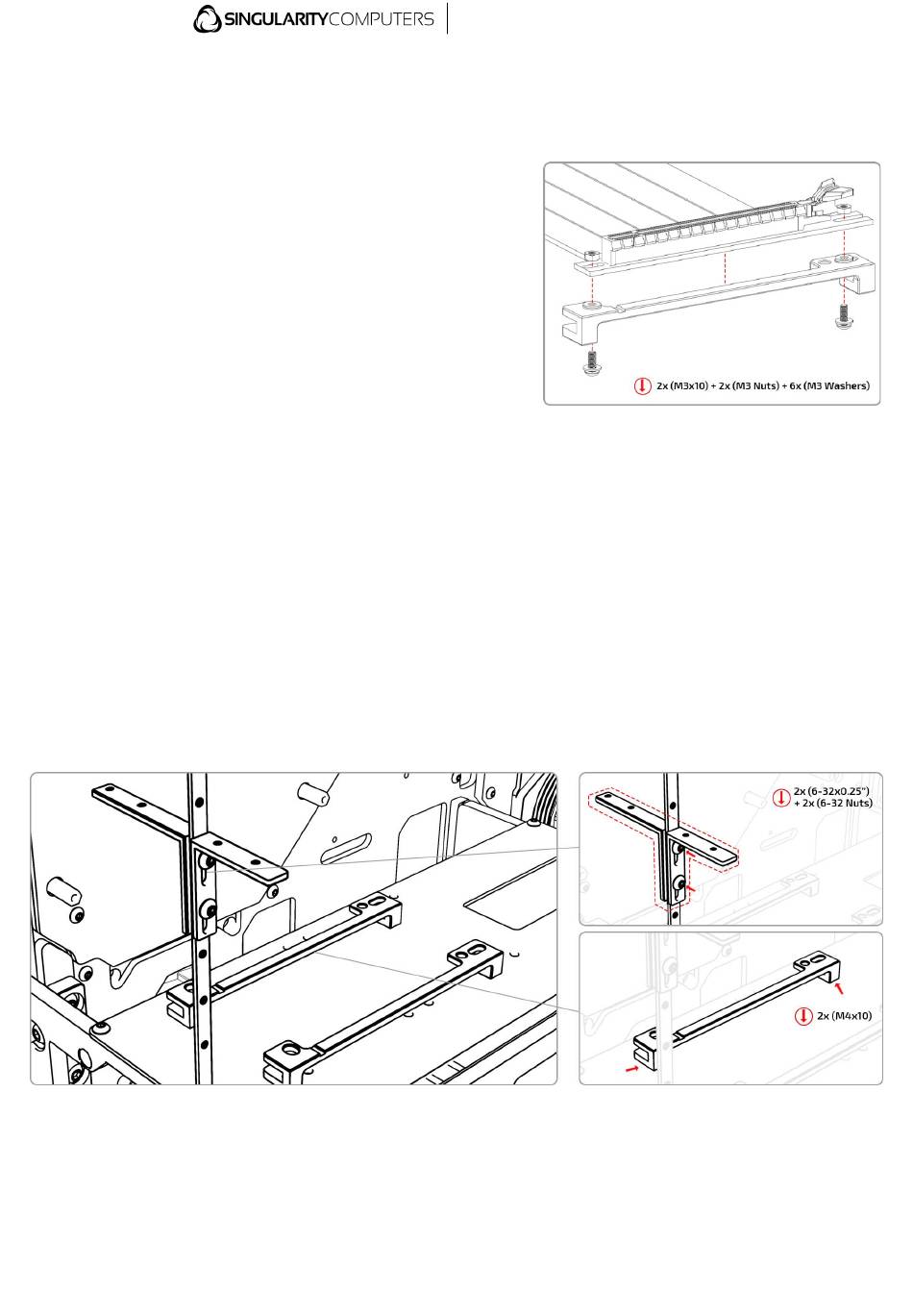

Install the PCIe Riser Cable (not included). Check you
have the correct orientation (see diagram to the right).
The cutout side of the Vertical GPU Bracket PCIE 4.0
needs to line up with the protruding plastic cover under
the Vertical GPU Riser Cable. Install the Vertical GPU
Riser Cable onto the PCIE 4.0 Vertical GPU Bracket using
the 2x M3 x 10mm Fasteners, 2x M3 Nuts and 6 x M3
Washers (see the diagram to the right for fastener
orientation).
Step 2: Install 2 PCIe 4.0 Vertical GPU Mount.
nd
Remove the PSU Side Panel to gain access into the PSU Shroud. Install the PCIe 4.0 2
GPU Bracket to the PSU Top Panel using the 2x M4 x 10mm Fasteners. The fasteners are installed
from underneath the PSU Top panel. There are several holes in the PSU Top Panel also for SSD
Mounting so be careful to select the correct mounting holes.Remove the Vertical GPU Angle if it
is already installed. When installing the 1
installed with the same fasteners at the same time. These fasteners are included with the 2nd
Vertical GPU Mount and are not included with the case. Use the 2x 6-32 x 0.5" Fasteners to mount
the Vertical GPU Angle and the Vertical GPU 2
of the Rear IO Panel facing opposite directions. Tighten the 2x 6-32 x 0.5" fasteners and then use
the 2x 6-32 Nuts to fix the Vertical GPU Second Angle in position. Be careful to select the correct
position on the Rear IO Panel so that the height is correct for your GPU.
Revision 1.1
Vertical GPU Mount.
nd
and 2
st
nd
Spectre Integra-M/MA Assembly Manual
Vertical GPU Mounts both angle pieces are
nd
Angle. These are both attached to opposite sides
Vertical
nd
Page | 16
