HFX Product Family
12.0

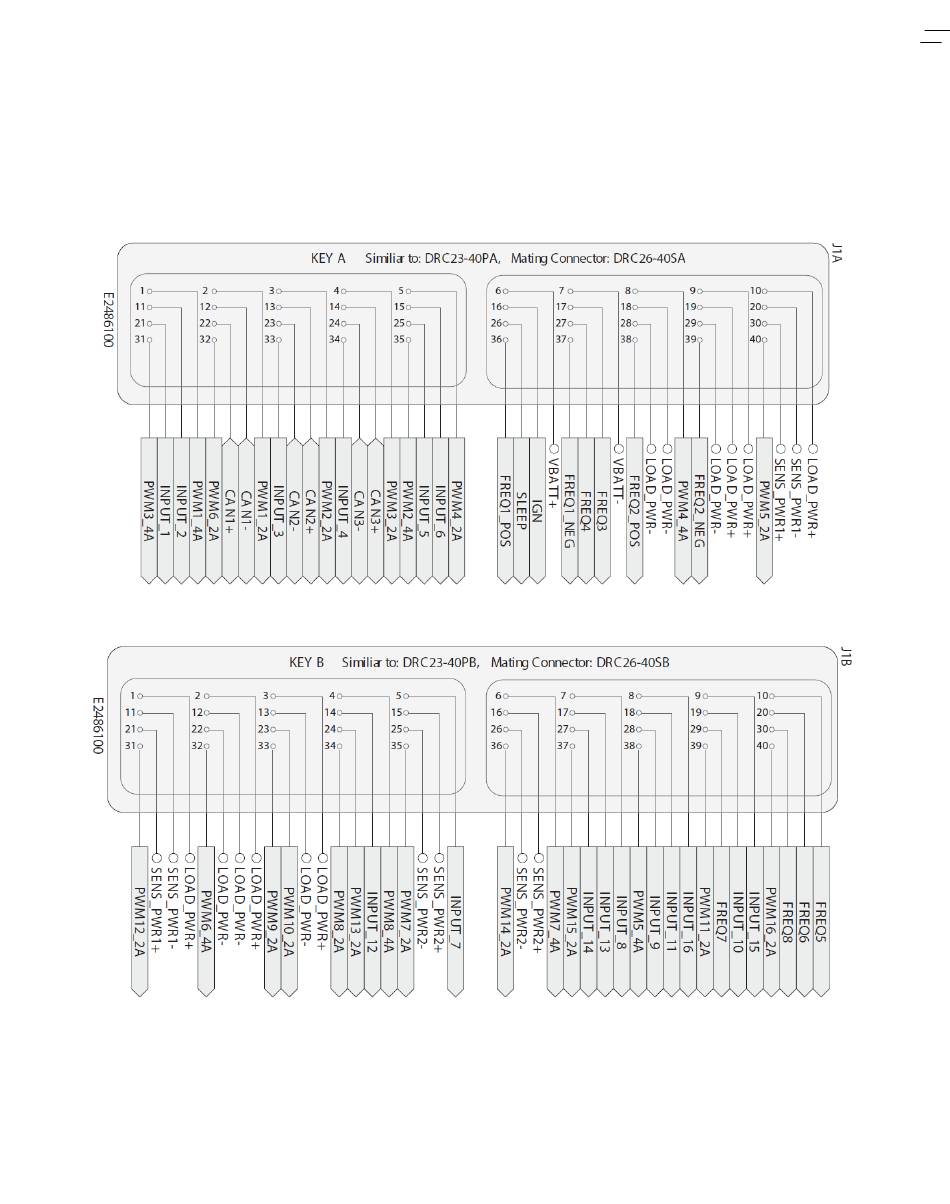

ELECTRICAL CONNECTION INFORMATION
Wiring Pin Out
Note: All 4 of the HFX units share a common pin - out. The HFX12 does not utilize the following pins: 8, 15, 17, 25, 27, 31, 32, and 40.
Note: Although all 4 of the HFX units share a common pin-out, both the HFX12 and the HFX20 do not have connector B. The HFX32 does not utilize
the following pins: 4, 6, 8, 14, 17, 18, 24, 27, 29, 30, 31, 36, 37, 39, and 40.
X Product Family Installation and Operation Manual for Matlab® Support Package January 2017
HF
17
