Advantech PPC-315SW User Manual

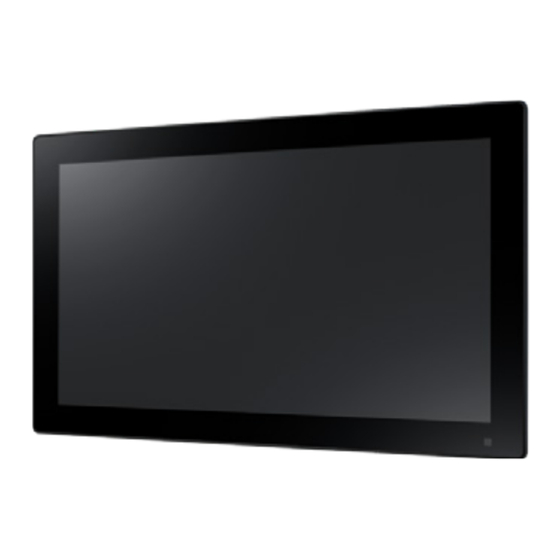

15.6"/18.5"/21.5" fanless widescreen panel pc with intel n97 quad-core processor
Hide thumbs Also See for PPC-315SW:

Advertisement

Quick Links

Download this manual
User Manual
PPC-315SW/318SW/321SW
ADL_N
15.6"/18.5"/21.5" Fanless Wide-
screen Panel PC with Intel® N97
Quad-Core Processor
製造商: 研華股份有限公司
地址:
台北市內湖區陽光街365巷33號
電話:
02-27927818

Advertisement

loading
Need help?

Need help?

Do you have a question about the PPC-315SW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech PPC-315SW

Summary of Contents for Advantech PPC-315SW

  • Page 1 User Manual PPC-315SW/318SW/321SW ADL_N 15.6"/18.5"/21.5" Fanless Wide- screen Panel PC with Intel® N97 Quad-Core Processor 製造商: 研華股份有限公司 地址: 台北市內湖區陽光街365巷33號 電話: 02-27927818...
  • Page 2 The documentation and the software included with this product are copyrighted 2023 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.

  • Page 3: Product Warranty (2 Years)

    Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation.

  • Page 4: Technical Support And Assistance

    Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: –...
  • Page 5 Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. Make sure the voltage of the power source is correct before connecting the equip- ment to the power outlet.
  • Page 6 安全指示 請仔細閱讀此安全操作說明。 請妥善保存此用戶手冊供日後參考。 用濕抹布清洗設備前，請從插座拔下電源線。請不要使用液體或去汙噴霧劑清洗設 備。 對於使用電源線的設備，設備周圍必須有容易接觸到的電源插座。 請不要在潮濕環境中使用設備。 請在安裝前確保設備放置在可靠的平面上，意外跌落可能會導致設備損壞。 設備外殼的開口是用於空氣對流，從而防止設備過熱。請不要覆蓋這些開口。 當您連接設備到電源插座上前，請確認電源插座的電壓是否符合要求。 請將電源線佈置在人們不易絆到的位置，並不要在電源線上覆蓋任何雜物。 10. 請注意設備上的所有警告和注意標示。 11. 如果長時間不使用設備，請將其同電源插座斷開，避免設備被超標的電壓波動損壞。 12. 請不要讓任何液體流入通風口，以免引起火災或者短路。 13. 請不要自行打開設備。為了確保您的安全，請由經過認證的工程師來打開設備。 14. 如遇下列情況，請由專業人員來維修： ◼ 電源線或者插頭損壞； ◼ 設備內部有液體流入； ◼ 設備曾暴露在過於潮濕的環境中使用； ◼ 設備無法正常工作，或您無法通過用戶手冊來使其正常工作； ◼ 設備跌落或者損壞； ◼ 設備有明顯的外觀破損。 15. 請不要把設備保存在超出我們建議的溫度範圍的環境，即不要低於 -20°C （-4°F）或 高於 60°C （140°F） ，否則可能會損壞設備。 16.

  • Page 7: Table Of Contents

    EMC and Safety ............... 3 1.2.8 Power ..................3 1.2.9 External I/O ................4 Dimensions and Cutout ................4 1.3.1 PPC-315SW ADL_N ..............4 1.3.2 PPC-318SW ADL_N ..............5 1.3.3 PPC-321SW ADL_N ..............6 Chapter 2 System Setup ........7 Transport and Unpacking ................
  • Page 8 Figure 2.11 Expansion Bracket Installation ......14 Figure 2.12 Installing a Riser Card ........14 Figure 2.13 Installing PCIe Expansion Card ......14 Figure 2.14 Expansion Cover Installation ......15 2.2.6 Installation of RFID Reader ............ 15 Figure 2.15 RFID Reader Installation ........15 Panel Mount ..................
  • Page 9 Table A.5: Remote Power Button Connector (CN9) ....43 A.3.2 RS-232/422/485 Connector (COM1, COM2) ......44 Table A.6: RS-232/422/485 Connector (COM1, COM2)..44 A.3.3 GPIO Connector (CN13) ............44 Table A.7: GPIO Connector (CN13)........44 A.3.4 Ethernet Connector LEDs ............45 Table A.8: 2.5G Ethernet Connector (LAN) LEDs ....

  • Page 11: Chapter 1 General Information

    Chapter General Information PPC-300SW ADL_N User Manual...

  • Page 12: Introduction

    ◼ Dimensions (W x H x D): PPC-315SW: 395.7 x 245.1 x 50.4 mm (15.6 x 9.6 x 2.0 inch) PPC-318SW: 464.5 x 285.5 x 53.4 mm (18.3 x 11.2 x 2.1 inch) PPC-321SW: 529.6 x 321.3 x 53.4 mm (20.9 x 12.6 x 2.1 inch) ◼...

  • Page 13: Lcd Panel

    EMC: CE, FCC Class B, BSMI, EN60601-1-2, UKCA ◼ Safety: CB, UL, CCC, UKCA 1.2.8 Power ◼ Input Voltage: 24VDC ± 20% ◼ Power Consumption (Burn-in test 8.1 in Windows 10 64-bit): PPC-315SW: 35 W PPC-318SW: 40 W PPC-321SW: 45 W PPC-300SW ADL_N User Manual...

  • Page 14: External I/O

    D. 2 x LAN I. Power button E. DP Dimensions and Cutout 1.3.1 PPC-315SW ADL_N ◼ Dimensions (W x H x D): 395.7 x 245.1 x 50.4 mm (15.6 x 9.6 x 2.0 inch) ◼ Cutout Dimensions: 386.8 x 236.2 mm (15.23 x 9.30 inch) Corner=R6mm (±0.5mm)

  • Page 15: Ppc-318Sw Adl_N

    1.3.2 PPC-318SW ADL_N ◼ Dimensions (W x H x D): 464.5 x 285.5 x 53.4 mm (18.3 x 11.2 x 2.1 inch) ◼ Cutout Dimensions: 455.6 x 276.6 mm ( 17.94 x 10.89 inch) Corner=R6mm (±0.5mm) PPC-300SW ADL_N User Manual...

  • Page 16: Ppc-321Sw Adl_N

    1.3.3 PPC-321SW ADL_N ◼ Dimensions (W x H x D): 529.6 x 321.3 x 53.4 mm (20.9 x 12.6 x 2.1 inch) ◼ Cutout Dimensions: 520.7 x 312.4 mm (20.5 x 12.3 inch) Corner=R6mm (±0.5mm) PPC-300SW ADL_N User Manual...

  • Page 17: Chapter 2 System Setup

    Chapter System Setup PPC-300SW ADL_N User Manual...

  • Page 18: Transport And Unpacking

    Transport and Unpacking 2.1.1 Transport When accepting a delivery, please check the packaging for visible transport dam- age and check the delivery for completeness by comparing it with your order. If you notice any shipping damage or inconsistencies between the contents and your order, please inform the responsible delivery service immediately.

  • Page 19: System Configuration

    The following diagrams use PPC-315SW ADL_N as a reference. All models share the same mechanical de- sign.

  • Page 20: At/Atx Jumper Setting (Jp5)

    2.2.2 AT/ATX Jumper Setting (JP5) This jumper on the PPC-300SW ADL_N motherboard, as indicated below, allows for the adjustment of the power mode Table 2.1: AT/ATX Function Description This jumper is used to select Power ON mode Default (2-3) (2-3) (1-2) Warning! Incorrect or undefined switches can cause damage to the system when powered on.

  • Page 21: Installation Of 2.5" Ssd

    2.2.3 Installation of 2.5" SSD Remove the rear cover. See Section 2.2.1. Secure the SSD onto the bracket using four M3x4L screws. Install the SSD and its bracket into the system. Figure 2.4 SSD Installation Attach the rear cover to the chassis using the previously removed screws. NOTE! The iDoor module and 2.5"...
  • Page 22 Figure 2.6 iDoor Module Installation Attach the rear cover to the chassis using the previously removed screws. 2.2.4.1 Installation of GPIO+USB Module Follow the instructions outlined in Section 2.2.4, Steps 1 and 2. Install a GPIO+USB module (98R1P300S10), and tighten the two screws to secure the module in place.

  • Page 23: Installation Of Pcie Expansion Cards

    Figure 2.8 GPIO and USB Connectors NOTE! The GPIO+USB mode, the iDoor module and a 2.5" SSD cannot be installed concurrently. Please select the installation option that best suits your requirements. 2.2.5 Installation of PCIe Expansion Cards Remove the rear cover. See Section 2.2.1. Remove the PCIe slot cover as shown below.
  • Page 24 Install the expansion bracket to the rear panel with four screws. Figure 2.11 Expansion Bracket Installation Insert the riser card into the PCIe slot, and secure the riser card using two screws. Figure 2.12 Installing a Riser Card Install a PCIe expansion card into the riser card and lock it with a screw. Figure 2.13 Installing PCIe Expansion Card PPC-300SW ADL_N User Manual...

  • Page 25: Installation Of Rfid Reader

    NOTE! The expansion slot supports a maximum card size of 175mm x 111mm x 18mm. Ensure your card dimensions do not exceed this limit for optimal compatibility and performance. NOTE! Refer to Appendix B for the total load current supported by the PCIe expansion slot.

  • Page 26: Panel Mount

    Cut out a section from the panel based on the dimensions of the Panel PC. The dimensions for the panel opening are as follows: PPC-315SW: 386.8 x 236.2 mm (15.23 x 9.30 inch) – PPC-318SW: 455.6 x 276.6 mm (17.94 x 10.89 inch) –...

  • Page 27: Vesa Mount

    Figure 2.17 Panel Mounting (1) Fasten the screws with a torque of 2 kgf-cm. These screws will push the mounting panel, ensuring a secure and stable unit.0. Figure 2.18 Panel Mounting (2) VESA Mount The rear cover of the PPC-300SW ADL_N includes four VESA mounting (75 x 75 mm) holes.

  • Page 28: Cabinet Installation And Earth Grounding Setup

    Note: Recommended screw thread depth "A" shall be more than 9.5mm. Figure 2.19 VESA Mounting Cabinet Installation and Earth Grounding Setup Follow these steps to set up the PPC system, ensuring that the Ground pin of the PPC system is properly connected to the earth ground. This connection is crucial for optimizing the performance of the PPC system, including enhanced EMI im- munity, ESD immunity, surge immunity, and system isolation.
  • Page 29 Figure 2.21 System Wiring NOTE! Make sure all wires follow the installation guidelines to avoid perfor- mance issues. PPC-300SW ADL_N User Manual...

  • Page 30: Bios Setup

    Chapter BIOS Setup PPC-300SW ADL_N User Manual...

  • Page 31: Bios Setup

    BIOS supports your CPU. If there is no num- ber assigned to the patch code, contact an Advantech application engineer to obtain an up-to-date patch code file. This will ensure that the CPU status is valid.

  • Page 32: Main Setup

    3.2.1 Main Setup Upon entering the BIOS Setup Utility, users will be on the Main setup screen. At any point during the configuration, users can return to the Main setup screen by selecting the Main tab. There are two Main setup options, which are described in this section.

  • Page 33: Advanced Bios Features Setup

    3.2.2 Advanced BIOS Features Setup Select the Advanced tab from thePPC-300SW ADL_N setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as ACPI Settings and hit <enter> to go to the sub menu for that item.
  • Page 34 3.2.2.1 CPU Configuration ◼ Hardware Prefetcher To turn on/off the MLC streamer prefetcher ◼ Adjacent Cache Line Prefetch To turn on/off prefetching of adjacent cache lines ◼ Intel (VMX) Virtualization Technology When enabled, a VMX can utilize the additional hardware capabilities pro- vided by Vanderpool Technology PPC-300SW ADL_N User Manual...
  • Page 35 3.2.2.2 Power & Performance Intel(R) SpeedStep(tm) ◼ This item allows more than two frequency ranges to be supported. ◼ Intel(R) Speed Shift Technology This item allows users to enable/disable Intel® Speed Shift Technology sup- port. Enabling it will expose the CPPC v2 interface to allow for hardware controlled Pstates.
  • Page 36 ◼ Turbo Mode This item allows users to enable/disable processor turbo mode (Intel Speed Step or Intel Speed Shift should be enabled). ◼ C States This item allows users to enable/disable CPU power management. This will enable the CPU to go to C states when not 100% utilized. 3.2.2.3 PCH-FW Configuration ◼...
  • Page 37 3.2.2.4 Trusted Computing ◼ Security Device Support This item allows users to enable/disable BIOS support for security devices. The OS will not show the security devices. The TCG EFI protocol and INT1A interface will not be available. ◼ SHA256 PCR Bank This item allows users to enable/disable SHA256 PCR bank.
  • Page 38 3.2.2.5 ACPI Settings ◼ Enable ACPI Auto Configuration This item allows users to enable or disable “ACPI Auto Configuration”. ◼ Enable Hibernation This item allows users to enable or disable System ability to hibernate (OS/S4 sleep state). This option may be not effective with some OS. ◼...
  • Page 39 3.2.2.6 NCT6126D Super I/O Configuration ◼ Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). ◼ Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB). PPC-300SW ADL_N User Manual...
  • Page 40 3.2.2.7 H/W Monitor Configuration PPC-300SW ADL_N User Manual...
  • Page 41 3.2.2.8 S5 RTC Wake Settings ◼ Wake System from S5 This item allows users to enable or disable system wake on alarm event. Select FixedTime, the system will wake on the hr:min:sec specified. Select DynamicTime, the system will wake on the current time + increased mi- nute(s).
  • Page 42 3.2.2.9 USB Configuration ◼ Legacy USB Support This item allows users to enable/disable legacy USB support. Selecting the Auto option disables legacy support if no USB devices are connected. Se- lecting the Disable option will keep USB devices available only for EFI appli- cations.
  • Page 43 3.2.2.10 Network Stack Configuration ◼ Network Stack This item allows users to enable or disable the UEFI network stack. PPC-300SW ADL_N User Manual...
  • Page 44 3.2.2.11 CSM Configuration ◼ CSM Support Enable/Disable CSM Support. 3.2.2.12 NVMe Configuration PPC-300SW ADL_N User Manual...

  • Page 45: Chipset Configuration

    3.2.3 Chipset Configuration 3.2.3.1 System Agent (SA) Configuration ◼ Memory Configuration This item allows users to view the memory parameters. ◼ Graphics Configuration This item allows users to set graphics configuration parameters ◼ VT-d This item allows users to enable or disable VT-d capability PPC-300SW ADL_N User Manual...
  • Page 46 3.2.3.2 PCH-IO Configuration ◼ SATA Configuration This submenu allows users to set the SATA device settings. ◼ Security Configuration This submenu allows users to set security configuration settings – BIOS lock, which allows users to enable or disable the PCH BIOS Lock Enable feature (required to be enabled to ensure SMM protection of flash).

  • Page 47: Security

    3.2.4 Security Administrator Password ◼ Set Administrator Password ◼ Secure Boot This item allows users to access a submenu to configure secure boot set- tings. PPC-300SW ADL_N User Manual...

  • Page 48: Boot

    3.2.5 Boot ◼ Setup Prompt Timeout This item allows users to set the number of seconds to wait for setup activa- tion key. 65535 (oxFFFF) means indefinite waiting. ◼ Bootup NumLock State This item allows users to select the keyboard NumLock state. Quiet Boot ◼...

  • Page 49: Save & Exit

    3.2.6 Save & Exit ◼ Save Charges and Exit This item allows you to exit system setup after saving the changes. ◼ Discard Changes and Exit This item allows you to exit system setup without saving any changes. ◼ Save Changes and Reset This item allows you to reset the system after saving the changes.

  • Page 50: Appendix A Connectors

    Appendix Connectors PPC-300SW ADL_N User Manual...

  • Page 51: Jumper And Connector Location

    Jumper and Connector Location A.1.1 Board Layout Figure A.1 Board Layout - Top View Table A.1: Board Placement Place Function JCMOS1 Clear CMOS jumper COM1 Pin 9 power select jumper Touchscreen type select jumper ATX/AT mode select jumper Remote power button connector CN13 GPIO connector COM1...

  • Page 52: Jumper Settings And Descriptions

    Jumper Settings and Descriptions A.2.1 CMOS Clear Function (JCMOS1) Table A.2: CMOS Clear Function Description This jumper is used to select CMOS clear Default (2-3) (1-2) CLR RTC Register (2-3) Normal (Default) (3-4) Clear CMOS (1-2) CLR RTC Register (2-3) Normal, default (3-4) Clear CMOS A.2.2 COM1 Signal Select (JP3)

  • Page 53: Touchscreen Type Select (Jp4)

    A.2.3 Touchscreen Type Select (JP4) Table A.4: Touchscreen Type Select This jumper is used to select touchscreen type. Description Set JP4 jumper to short for resistive touchscreens; leave JP4 open for projected capacitive types. Default Short Open Projected capacitive type Short Resistive type Connector Pin Definition...

  • Page 54: Rs-232/422/485 Connector (Com1, Com2)

    A.3.2 RS-232/422/485 Connector (COM1, COM2) Table A.6: RS-232/422/485 Connector (COM1, COM2) RS232 RS422 RS485 Data- Data+ A.3.3 GPIO Connector (CN13) Table A.7: GPIO Connector (CN13) Signal GPIO4 GPIO0 GPIO5 GPIO1 GPIO6 GPIO2 GPIO7 GPIO3 PPC-300SW ADL_N User Manual...

  • Page 55: Ethernet Connector Leds

    A.3.4 Ethernet Connector LEDs Table A.8: 2.5G Ethernet Connector (LAN) LEDs Speed LED Activity/Link LED 10 Mbps No link 100 Mbps Green Data activity & linked Orange 1000 Mbps Green 2500 Mbps PPC-300SW ADL_N User Manual...

  • Page 56: Pci / Pcie

    Appendix PCI / PCIe PPC-300SW ADL_N User Manual...

  • Page 57: Load Current Of Pcie Slot

    Load Current of PCIe Slot The total load current supported by the PCIe expansion slot is listed below. Table B.1: Total Load Current of PCIe Slot Voltage Current 12 V 0.4 A 3.3 V 3.3 VSB 0.25 A The total output power for 12V, 3.3V, and 3.3VSB should not exceed 10W. Load Current of PCI Slot The total load current supported by the PCI expansion slot is listed below.
  • Page 58 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2024 PPC-300SW ADL_N User Manual...

This manual is also suitable for:

Ppc-318swPpc-321sw
