Enelion LUMINA Installation Manual
Hide thumbs
Also See for LUMINA:
- User manual (48 pages) ,
- Installation manual (40 pages) ,
- Quick start manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Enelion LUMINA
Summary of Contents for Enelion LUMINA
- Page 1 Video tutorial ENELION LUMINA 3 in 1 modular structure — build and upgrade your dreamed solution using the same base module. Quick installation — get your EV charger ready to work online in no more than 15 minutes of the...
- Page 2 Dear Partner, Congratulations on your purchase of the ENELION LUMINA charger and thank you for your trust. Up-to-date manuals for users and installers always available at: https://enelion.com/support-lumina/ Please read this manual before installation or prior to the station being commisioned.
-
Page 3: Table Of Contents
Introduction ENELION LUMINA product family Tools necessary for installation Safety screws Features Technical specifications Safety Safety instructions Before the installation Planning the installation How to prepare the device for installation ENELION LUMINA socket ENELION LUMINA socket premium ENELION LUMINA cable premium Installation Schemat wariantów podłączenia... - Page 4 Step by step Start-up and configuration of the station Additional information for the UK market Daily use and operation How do I charge? Interface LED Maintenance Cleaning Practical details Customer service...
-
Page 5: Enelion Lumina Product Family

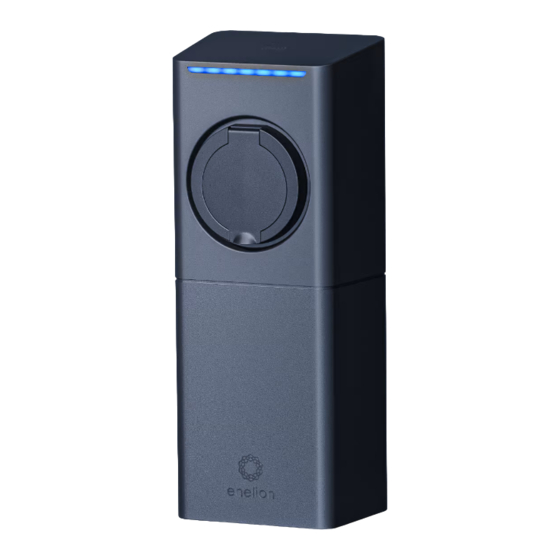

ENELION LUMINA products family ENELION LUMINA BACKPLATE CLOSED ENELION ENELION OPENED LUMINA LUMINA ENELION CABLE SOCKET LUMINA PREMIUM PREMIUM SOCKET... -
Page 6: Tools Necessary For Installation
Additional tools necessary for installation x6 x6 PH2 + PH3 PZ1 + PZ2 + PZ3 5 mm T10 + T15 + T20... -
Page 7: Safety Screws
Safety screws If the station is provided with safety screws, they are installed in the rear part to prevent unauthorised persons from removing the head. UK market only If you ordered the bit needed to remove the screws is included in the cardboard box together with the station. -
Page 8: Features
Features RFID CARD READER LED INTERFACE SOCKET TYPE 2 WI-FI ROOM FOR OPTIONAL BACKUP POWER SUPPLY ROOM FOR OPTIONAL CERTIFIED ENERGY METER ROOM FOR OPTIONAL 230 V CEE 7/3 SOCKET... -
Page 9: Technical Specifications
Flammability class ENELION LUMINA Socket – Type 2 socket, Charging connector type ENELION LUMINA Cable Premium – Type 2 connector with 5.2 m cord Embedded residual current monitor - Enelion RCMB 6 mA DC Residual current protection Integrated 3-phase energy meter > 99% accuracy Energy metering Impulse* –... - Page 10 3 x 400 V AC/230 V AC (±10 %) (TN/IT) Supply voltage Possibility of connecting the cable from the top, bottom and the back of the station • configuration with no additional tools • remotely controlled schuko outlet (max 2000 W/10 A)* Other features •...
-
Page 11: Safety Instructions
ENELION LUMINA plug-in electronics. • ENELION LUMINA’s network SSID and password are required for installation and configuration; they can be found on the back of the charging head. -
Page 12: Before The Installation
Charging power is recommended to consider future charging needs before installation. Charging 1 phase 3 phase • The power supply to the Enelion charging current (kW) (kW) terminal must be provided from an electrical switchgear. The switchgear must have the... -
Page 13: How To Prepare The Device For Installation
How to prepare the device for installation ENELION LUMINA SOCKET Slide out the head module and remove the housing cover Undo two long bolts and two screws at the bottom (1). Repeat with two screws at the Unscrew the fixing screws and remove... -
Page 14: Enelion Lumina Socket Premium
ENELION LUMINA SOCKET PREMIUM Slide out the head module Undo two long bolts at the bottom (1) and two screws at the top (2) Unscrew the fixing screws and remove the transparent cover... -
Page 15: Enelion Lumina Cable Premium
ENELION LUMINA PREMIUM CABLE Slide out the head module Dismantle the cable holder (1). Undo two Unscrew the fixing screws and remove long bolts at the bottom (2) and two the transparent cover screws (3) at the top... -
Page 16: Installation
This product may only be installed, repaired Enelion Enalion or serviced by an authorised electrician. All LUMINA LUMINA local, regional and national electrical installation Backplate Backplate regulations must be observed. -
Page 17: Schematy Poglądowe Modułów
Preparation diagrams of modules Charging module Type 2 socket In the box with the ENELION LUMINA charger, with RCMB 6 mA DC you will find an assembly template to help you choose the installation location and prepare the 5x6 mm installation holes. -
Page 18: Installation Of Backplate
Installation of Electrical mounting plate connection For maximum charging power, it is recommended to use cables with a conductor cross-section not exceeding 6 mm . This is also the maximum Turn off the power before installation. diameter that can be installed in the connection terminals. - Page 19 It is recommended to use the existing colour code used in the wiring. Depending on the standard in your country, the cable colours may differ from those shown. Before switching on the power, make sure that the cables are connected correctly. Test this by pulling on each wire.
-
Page 20: Alternative Method For The Insertion Power Cables
Alternative method for the insertion of power cables If it is not feasible to insert the power cables in the standard way, an alternative method can be applied. In the lower part of the rear housing of the station (if it is not equipped with the optional 230 V socket), there is a hole for an M25 cable gland with a blanking plug. -
Page 21: M20 Gland Adapter
M20 gland adapter For the alternative method of inserting power cables into the station, an adapter with a hole for M20 gland is available separately – it can be used to install a special gland with an armoured cable in case of a single-phase system. -
Page 22: Step By Step
Step by step Level the template Drill holes Screw the backplate to – mark the holes – insert pins walls – tighten the cable entry Remove the Connect wires insulation from the cable... - Page 23 ENELION LUMINA with optional 230 V CEE 7/3 SOCKET and optional CERTIFIED MODEL LB-32-3-X-1-X-XX-MGR-00 ENERGY METER...
- Page 24 ENELION LUMINA with optional 230 V CEE 7/3 SOCKET MODEL LB-32-3-X-1-X-XX-GR-00...
- Page 25 Slide Install the transparent cover Insert SIM card Mount the head on using four screws. Slide from the front Use two long bolts and two Tighten the head – two long Install screws at the bottom and two bolts at the bottom front cover screws at the top and two screws at the top...
-
Page 26: Start-Up And Configuration Of The Station
Using a smartphone or computer, search for the LUMINA station’s AP with the SSID listed on the back of the charging head. After connecting to the LUMINA station’s AP with... -
Page 27: Additional Information For The Uk Market
If faults are detected in the circuit, This section outlines the information for the charge cycle ends thus isolating the vehicle installation of ENELION LUMINA in the UK from the power supply. region. This removes the risk of touching the vehicle... -
Page 28: Daily Use And Operation
• If access control is configured, block it with a registered RFID tag or disable it in the configuration panel on the Wi-Fi interface. Before each use of the ENELION LUMINA charger: 1. Check that the charging cable and connector are not damaged or contaminated, e.g. -
Page 29: Interface Led
Interface LED Maintenance The ENELION LUMINA charging station has an The device is designed to operate in LED interface that provides the user with basic temperatures from -30°C to +55°C. The manufacturer does not guarantee the correct information: operation of the charging station at temperatures outside of the specified range. -
Page 30: Practical Details
Standards Practical Enelion sp. z o.o. hereby declares that this product, the ENELION LUMINA charging station, details complies with: 2014/53/EU (RED); 2011/65/EU (RoHS), 2014/30/EU (EMC) ; 2014/35/EU (LVD); UK SI 2016 No. 1101; UK SI 2016 No. 1091; UK SI 2017 No. - Page 31 Download the latest user manuals, useful Customer documents and videos for your product on https://enelion.com/support-lumina/ service This document contains information that is subject to change without notice. © 2023 ENELION 50 Pana Tadeusza St, 80-123 Gdansk, Poland...
- Page 32 Copyright Enelion sp. z o.o. The manual may change as the product develops. All rights reserved. Revision: V 6 Number of pages: 32 Released: February 14, 2023 Enelion sp. z o.o. | 50 Pana Tadeusza St 80-123 | Gdansk | Poland sales@enelion.com enelion.com...
