Vertica
Manual for Vertica Modules,
Vertica Pole and accessories
Enelion Sp. z o.o.
info@enelion.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vertica and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enelion Vertica

Summary of Contents for Enelion Vertica

  • Page 1 Vertica Manual for Vertica Modules, Vertica Pole and accessories Enelion Sp. z o.o. info@enelion.com...
  • Page 2 Copyright, Enelion Sp. z o. o. The manual may change as the product develops. The information provided may not be correct. All rights reserved. Revision: V 3.4 Number of pages: 39 Released: March 2, 2021...

  • Page 3: Table Of Contents

    2.3.1 Vertica Module with a socket ........
  • Page 4 8.2 Vertica Module with a socket ........
  • Page 5 Vertica - assembly manual 3 - 2021 Congratulations on the purchase of the Enelion charger and thank you for your trust. Before the installation, make sure that the module packages contain all the elements. Current version of the operation manual can be accessed at http://enelion.com/en/help/.

  • Page 6: Important Information

    Vertica - assembly manual 3 - 2021 1. Important information 1.1. General Provisions It is forbidden to use any extensions of the charging ca- ble. Installation and servicing of the device must be per- The manufacturer is not responsible for loss of health formed by qualified and authorized persons, and re-...

  • Page 7: General Information

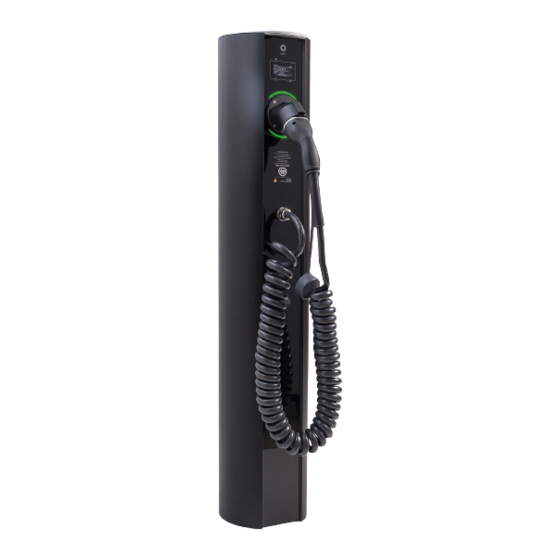

    2. General information Vertica is a modular charging station for electric cars, INFO which consists of Vertica Pole as a casing, Vertica Mod- ules involved in the charging process and optional add- For more information, see the “User Manual”. ons and accessories.

  • Page 8: Vertica Module

    Vertica Module 2.3.1. Vertica Module with a socket The Vertica module with a socket is a functional part of the charging station. 2. Unlock the lock plate with the key (if there is a Yale lock). Next, using the 5 mm Allen key, un- This module provides a type 2 socket for charging ve- screw the M6 bolts and remove the lock plate.

  • Page 9: Vertica Module With A Cable

    32 A hree phase and can be mounted 2. Lift the module above the Vertica Pole. Place the on either side of the Vertica Pole. It is equipped with an bottom edge in the guide slot. Carefully insert the...
  • Page 10 Vertica - assembly manual 3 - 2021 Fig. 8: Assembly of Vertica Modules 3. Close the Vertica Pole in accordance with the in- struction 2.2.1 Opening and closing of the device. General information...

  • Page 11: Design Indications Of The Installation

    The whole device is mounted on the attached TS35 to rotate by multiple 90-degree angle turns. rails at the bottom of Vertica Pole. Remember to protect each Vertica Module with a residual current device with Please bear in mind that the national regulations may the characteristics described above.
  • Page 12 Vertica - assembly manual 3 - 2021 into account, and escape routes at the installation site must be provided. It is forbidden to install the device in a location where falling objects may damage the charger. Before installation, make sure that there is free space above the charger at least one meter from its outline.

  • Page 13: Connection Type Diagrams

    Vertica - assembly manual 3 - 2021 3.3.1. Connection type diagrams Fig. 9: Connection types part 1/2 Design indications of the installation...
  • Page 14 Vertica - assembly manual 3 - 2021 Fig. 10: Connection types part 2/2. Design indications of the installation...

  • Page 15: Pictorial Diagrams Of Vertica Modules

    Vertica - assembly manual 3 - 2021 3.3.2. Pictorial diagrams of Vertica Modules Fig. 11: Pictorial diagrams of Vertica Modules part 1/2. Design indications of the installation...
  • Page 16 Vertica - assembly manual 3 - 2021 Fig. 12: Pictorial diagrams of Vertica Modules part 2/2. Design indications of the installation...

  • Page 17: Foundation

    Vertica - assembly manual 3 - 2021 4. Foundation Vertica Pole can be installed in three ways: 2. An excavation of over 400 mm x 600 mm (diam- eter x depth) or 400 mm x 400 mm x 600 mm (width x length x depth) should be made.

  • Page 18: Appropriate Existing Foundation

    Vertica Pole after ensuring that Vertica Pole is properly attached to the foundation. It is recom- Fig. 18: Properly constructed foundation with the mended to apply M12 threaded rods.

  • Page 19: Construction Of The Foundation Using The Enelion Foundation Set

    1. Make a trench in the substrate with dimensions of 250 mm x 600 mm (diameter x depth) or 250 mm 3. Place the assembled Enelion foundation set in x 250 mm x 600 mm (width x length x depth).
  • Page 20 Vertica - assembly manual 3 - 2021 Fig. 23: Foundation set correctly placed in the ex- cavation Fig. 21: Diagram of placing the foundation set in the excavation Fig. 24: Cross-section of the foundation set cast in the concrete Fig. 22: Details of placing the upper base plate in 5.
  • Page 21 Vertica - assembly manual 3 - 2021 Fig. 25: Correctly cast foundation set. Fig. 26: Removing of the upper base plate from the foundation set. 6. Secure the bolts partly protruding from the con- crete with bituminous mass (do not cover the thread).

  • Page 22: Installation Of Vertica Pole

    The accessories should be collected before disposing of the packaging: Vertica Pole is mounted to the ground with 4 M12 nuts • Torx Security T25 bit. screwed onto the previously prepared threaded rods.

  • Page 23: Standard Connection

    Fig. 28: Mounting Vertica Pole on the foundation. Vertica Pole installed in this way can be equipped with 2. Fix the Vertica Pole to the foundation with the use accessories and can be connected to the electricity net- of four M12 nuts and washers, with a torque in the work.

  • Page 24: Enelion Mid Add-On

    Vertica Pole! HINT The colors of the wires in Vertica Pole may not match the colors of the power cables maintain- ing, however, the guidelines on the Vertica Mod- ule label.
  • Page 25 3. Connect the two signal wires to the socket lo- standard connection and the one using a MID cated on the PCB board mounted in Vertica Pole. meter. The red wire to the “A +” port, the white wire to the “B-“...

  • Page 26: Enelion Chain Add-On

    HINT 2. Use termination for the devices at the beginning The colors of the wires in Vertica Pole may not and end of the network. Termination is done by match the colors of the power cables maintain- placing a jumper which is shown on the two pins ing, however, the guidelines on the Vertica Mod- on the board inside the Vertica pole.

  • Page 27: Internet Connection Via Ethernet Interface In The Lan

    Internet connection via Ethernet inter- face in the LAN To ensure internet connection to a charger equipped with an Enelion Bridge module via the Ethernet inter- face: 1. Insert the Ethernet patchcord into the device through the gland for communication cables.

  • Page 28: Vertica Splitter Add-On With An Additional Meter And Residual Current Protection

    The in- structions below refer to the case when Enelion MID add-on has already been installed. Only copper cables can be used with Vertica Splitter terminals. 1. When using the Vertica Splitter, follow the dia- gram shown.

  • Page 29: Installation Of Vertica Bottom Masking Panels

    Vertica - assembly manual 3 - 2021 2. The back side of Vertica Pole should look as be- INFO low. It is permissible to install the protections in a dif- ferent orientation and/or using other mounting points as long as the connections are consis- tent with the presented diagram.

  • Page 30: Installation Of The Vertica Module

    Module with socket in a package. 1. Place the packed Vertica Module with its socket 1. Place the packed Vertica Module with the cable in in a horizontal position, as indicated on the pack- a horizontal position as indicated on the package.

  • Page 31: Installation Of Accessories

    Thanks to the integrated Enelion Chain connection within the Vertica Pole, the Smart and Online functions are available for both Vertica Modules. The installation of Enelion Bridge is identical for the module with a cable and with a socket. WARNING Bridge modules with firmware version 3.0.0 and...

  • Page 32: Enelion Rcm B

    flat surface with the front facing down. In the ing controller. case of the Vertica Module with a cable, the fact of the device having larger dimensions should 4. Remove the plugs for Enelion Bridge service be taken into account during its installation.

  • Page 33: Activation And Use

    Activation and use After installing add-ons, Vertica Modules should be mounted in the installed and connected Vertica Pole. 1. Open the Vertica Pole (if closed after installation) according to section 2.2.1 Opening and closing of the device. 2. Install the Vertica Modules according to sec- tion 2.3.3 Assembly and disassembly of Vertica...

  • Page 34: Maintenance

    Vertica - assembly manual 3 - 2021 7. Maintenance The device is designed to operate in temperatures from −25 C to 55 C. The manufacturer does not guarantee the proper functioning of the charging station in temper- atures outside the specified range. Chargers that are damaged because of exposure to temperatures below −25 C or above 55 C are not covered under the war-...

  • Page 35: Technical Data

    Vertica - assembly manual 3 - 2021 8. Technical data 8.1. Słup Vertica Electrical data Routing of the power cord Sub-surface Recommended minimum cross-section Power cord cross-section • 5 x 6,0 mm (32 A nominal current) Supply voltage (Europe) 3 x230 V/400 V...

  • Page 36: Vertica Module With A Socket

    Vertica - assembly manual 3 - 2021 8.2. Vertica Module with a socket Electrical data Supply voltage (Europe) 3 x230 V/400 V Voltage frequency 50 Hz/60 Hz Network type TN, TT (IT per request) Overvoltage category III according to EN 60664–1 Rated short-circuit current Effective value <...

  • Page 37: Moduł Vertica Z Kablem

    Vertica - assembly manual 3 - 2021 8.3. Moduł Vertica z kablem Electrical data Supply voltage (Europe) 3 x230 V/400 V Voltage frequency 50 Hz/60 Hz Network type TN, TT (IT per request) Overvoltage category III according to EN 60664–1 Rated short-circuit current Effective value <...

  • Page 38: Technical Description

    Vertica - assembly manual 3 - 2021 9. Technical description 9.1. Form with boxes to fill in Charging Station/General Access Charging Station Charging point, an element of public road transport infrastructure Type Vertica Pole Model Number ................Module Model Number ................
  • Page 40 © 2021 ENELION Pana Tadeusza 50, 80-123 Gda ´ nsk, Polska...
