Enelion Stilo Getting Started

Stilo
Getting Started
All instructions can be found at
www.enelion.com/manuals
Scope of delivery
Station with a fied charging cord (1 pc), RFID card and badge
(2 pcs), screw bit (1 pc), distance sleeves (4 pcs), mounting pins
with screws (4 pcs), fork terminals (5 pcs)
Specifcaaions for ahe elecarical connecaion
➢ The electrical connection to the charger should be
protected by a B32 circuit breaker and a residual current
device with a minimum A characteristic and a 30 mA of
a triggering current.
➢ Ensure, that wires to power grid have proper diameter.
A cable with a cross-section of 6 mm
➢ The installation, commissioning and maintenance of the
charging station may only be performed by properly
trained, qualifed and authorized electricians, who are
fully responsible for the compliance with eiisting
standards and installation regulations.
➢ Make sure that no power is connected during the whole
mounting procedure. Do not restore power to the outlet
until installation is complete. Failure to follow these
instructions could result in shock or electrocution.
Insaallaaion
1) Mark the four holes using the supplied drilling template
and a spirit level. Only a vertical installation of the
charging station is permitted. Make sure that the chosen
installation location will not confict with your eiisting
infrastructure – check if there is enough space to slide
terminal back, after installation.

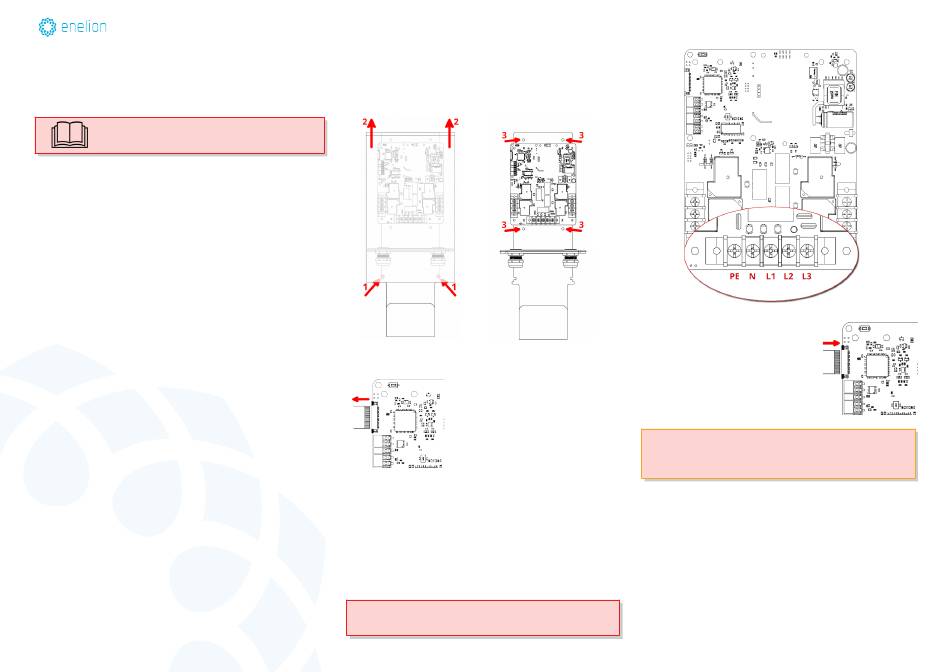

2) Unscrew the locking screws in the bottom, inner part of
the aluminium profle using the bit provided with the
charger. The locations of the screws are marked with the
numbers 1 on the fgure below. Remove the housing from
the charger by sliding it upwards – the direction indicated
by arrows with numbers 2. Move the housing until the
mounting holes in the back plate (arrows with number 3)
are eiposed.
2 is used as standard.
If the installation is carried out without the other person,
disconnect the housing from the main board. To do this,
3) Screw the back plate to the wall using the distance
sleeves provided with the charger.
4) After attaching the back plate, an electrical connection
can be made. The power supply cable should be inserted
into the device through the left gland. At the ends of the
wires, tighten the attached fork terminals with a crimping
tool for insulated terminals. Wires should be connected to
the black terminal at the bottom of the PCB.
Incorrect connection of the power supply may lead to
disconnect the ribbon cable inserted
in the upper left corner of the green
PCB board. It should be released by
pulling the black drawer towards the
ribbon. Then you can slide the
housing completely of the back
plate.
irreparable damage to the device.
5) After completing the electrical
connection, the housing can be
placed on the back plate. If the white
ribbon cable has been disconnected,
reconnect it. The cable is placed in
the connector with the contacts
facing up.
When lowering the housing, make sure
that the edge of the housing does not hit the tape
protruding from the connector.
6) After sliding the housing to the end, it must be secured by
screwing the screws with the bit (attached to the charger)
to the places from which they were removed.
7) The last step is to turn on the voltage and make sure that
the charger has started – it will signal the sequence of
colours (transition from white to blue) on the LED bar in
the upper part of the device.
