Debug management

4.1

Introduction

The host/target interface is the hardware equipment that connects the host to the application board. This interface
is made of three components: a hardware debug tool, an SWD connector and a cable connecting the host to the
debug tool.
Figure 9 shows the connection of the host to the discovery board (STM32C0316-DK), which embeds the debug
tools (ST-LINK). Consequently, it can be directly connected to the PC through a USB cable.
4.2

SWD (serial wire debug) port

The STM32C0 series core integrates the serial wire debug port (SW-DP), an Arm
port with a 2-pin (clock + data) interface to the debug access port.
4.3

Pinout and debug port pins

The microcontrollers of the STM32C0 series are offered in packages with varying numbers of pins.
4.3.1

Serial wire debug (SWD) pin assignment

The same SWD pin assignment is available on all STM32C0 Series packages.
SWD pin name
SWDIO
SWCLK
After reset (SYSRESETn or PORESETn), the pins used for the SWD are assigned as dedicated pins,
immediately usable by the debugger host.
The MCU offers the possibility to disable the SWD, therefore releasing the associated pins for general-purpose
I/O (GPIO) usage. For more details on how to disable SWD port, refer to the RM0490 section on I/O pin alternate
function multiplexer and mapping.
AN5673 - Rev 2

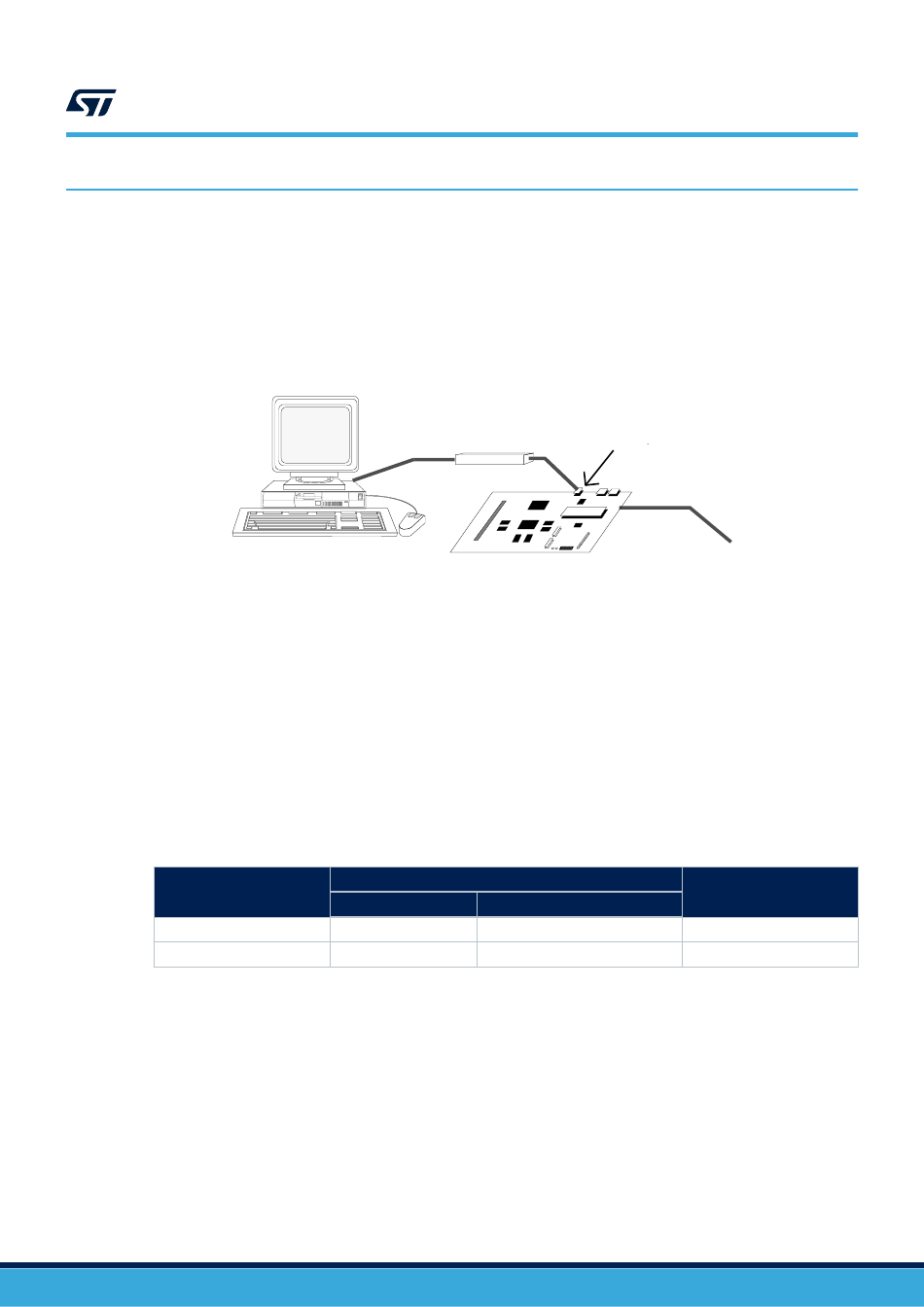

Figure 9. Host-to-board connection
