Quick Guide
Display & Control
Setting RPM / RCF, Time, ACC / DEC
Touch RPM / RCF,
Time, ACC / DEC
T04

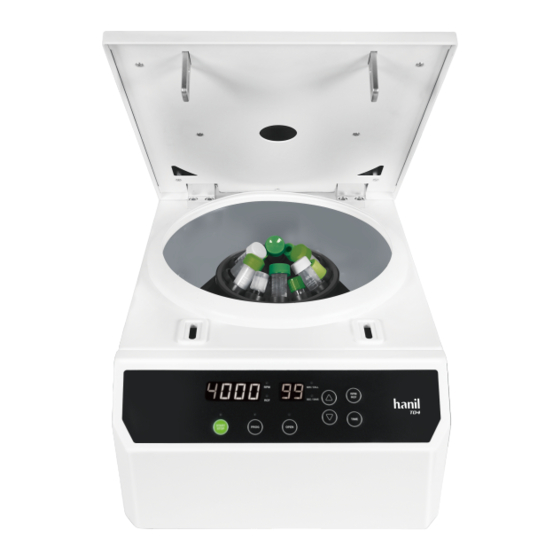

Cat. No. : T04
Display
Display window
Status of Time (MIN / SEC)
Status of Speed(RPM / RCF)
Program (Call / Save)
99
4000
Start/Stop
Lid Open
Program SAVE/CALL
Touch once : CALL/
Touch twice : SAVE(Up to 30)
Set the desired values by
touching the Up, Down button
Serial No.
Setting Speed
Touch once : RPM / Touch twice : RCF
T04
Setting Time
Touch once : CALL/
Touch twice : SAVE(Up to 30)
Program SAVE / CALL
Touch the Up, Down button to set the desired program number
Touch once : CALL / Touch twice : SAVE(Up to 30)
Installation Date.
Max. RPM
4,000 rpm
Max. RCF
2,075 xg
< 100 min or
Timer
continuous
Advertisement
Related Manuals for Hanil T04
Summary of Contents for Hanil T04
- Page 1 Quick Guide Cat. No. : T04 Display & Control Max. RPM 4,000 rpm Max. RCF 2,075 xg Display Display window Setting Speed < 100 min or Timer continuous Status of Time (MIN / SEC) Touch once : RPM / Touch twice : RCF...
- Page 2 Quick Guide Cat. No. : T04 Cautions For Use Maintenance Before Operation 30 cm 30 cm 30 cm Check the Accessories for Abnormalities Check the Rotor Locking Emergency Lid Open Keep a Safety Clearance Check the rotor, buckets and tubes are Check the rotor is firmly tightened onto free of scratch and crack before operation.
