  • Page 1 Operating Manual Smart 15 Plus Micro Centrifuge Copyright ⓒ Hanil Scientific INC. All right reserved.

  • Page 2: Table Of Contents

    CONTENTS 1. General Considerations--------------------------------------------------- 2 1.1 Safety -2 1.2 Transport & Storage -3 1.3 Safety label -3 1.4 Electric safety information -3 2. Product description------------------------------------------------------- 4 2.1 Structure -4 2.2 Delivery package -4 2.3 Specificaions -5 3. Installation ------------------------------------------------------------------ 6 3.1 Packing Inspection -6 3.2 Installation -6 3.2.1 Selecting the location -6...

  • Page 3: General Considerations

    2. Check the voltage to be used, before connecting the centrifuge to the power source. 3. Only use rotors, parts, and accessories provided by Hanil Science INC. Hanil Scientific INC. is not responsible for damages of the device and accidents caused by using parts and accessories not recommended.

  • Page 4: Electric Safety Information -3

    1. General Considerations 1.2 Transport & Storage Storage Transport • The device and the accessories • Only lift and transport the device with may only be stored In dry rooms. Sufficient number of helpers. Ambient temperature 5℃ ~ 35℃ Ambient temperature -10℃ ~ 40℃ Maximum relative humidity 30% ~ 85% Relative humidity 10% ~ 90% Air pressure 500 ~ 1060 hpa...

  • Page 5: Product Description

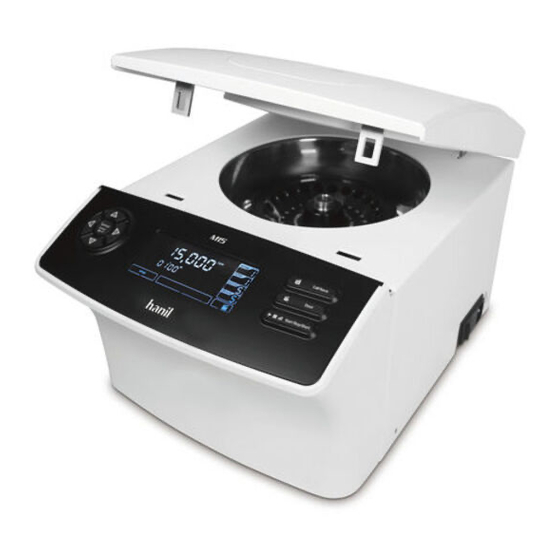

    2. Product description 2.1 Structure ① Lid: Lid protects the inside of the chamber. ② Lid lock ③ RPM measuring window Visual inspection for rotor stop or for a speed check using a stroboscope. ④ Chamber Where the rotor is loaded ⑤...

  • Page 6: Installation

    2. Installation 2.3 Specifications Max. RPM 15,000 rpm Max. RCF 21,055 xg Max. Capacity 24 x 1.5/2.0ml Time 99min 59sec ACC ramps 6 steps DEC ramps 6 steps Power supply AC 220V, 50Hz/60Hz Dimension (W x D x H, mm) 293 x 380 x 242 mm Weight (kg) 15 (Without rotor)

  • Page 7: Packing Inspection -6

    3.1 Packing Inspection • Check packing conditions carefully, before unpacking. • Contact Hanil Scientific INC. immediately if damages found • Check the delivery for completeness. • You can get contact details on packing boxes and the back of the manual.

  • Page 8: Connect Power Connection -7

    3. Installation 3.2 Installation 3.2.2 Connect power connection · • Connect the device to voltage sources which correspond to the electrical requirements on the label attached to the device. • Use sockets with a protective earth conductor and provided power cord. 1.

  • Page 9: Operation

    4. Operation 4.1 Operation Panel 번호 버튼 설명 기능 ① Set-up information, operating condition is displayed. Display ② Set the speed or runtime. ③ Set the speed or runtime. Down ④ Left ⑤ Moves the cursor left or right. Right ⑥...

  • Page 10: Opening And Closing The Lid -9

    Put the lid on and press the edge of the lid. 4.3 Loading and removal of the rotor · • Only use rotors, parts, and accessories provided by Hanil Science INC. · • Do not use scatched or cracked rotor in use.

  • Page 11: Loading Tubes -10

    4. Operation 4.5 Loading tubes • Only use tubes provided or approved by Hanil Science INC. • Always use the same type of tube. • Tubes should be loaded symmetrically. • Do not exceed the maximum rated speed of the tube.

  • Page 12: Setting Rpm/Rcf -11

    4. Operation 4.6 Setting RPM/RCF ① Press the Setup/Enter( )key to activate the RPM display ② Press Left ( ) or Right ( ) key to move the cursor to rpm or rcf mode ③ Press Up ( ) or Down ( ) key to input the setting value.

  • Page 13: Pulse Funcion -12

    4. Operation 4.11 Pulse Funcion • The pulse centrifugation runs as long as the Start/Stop( ) key is pressed. ▶ Press and hold Start/Stop( ) key to pulse centrifugation. ▶ If you release the Start/Stop( ) key, it stops when set RPM is reached . 4.12 Saving / Recall programs Saving a program 1.

  • Page 14: Maintenance

    5. Maintenance 5.1 Care instructions • The following procedures should be performed regulary. ① Regularly inspect the rotor chamber for check the motor shaft is nomal. ② Rotate the shaft with your hand to make sure it turns smoothly ③ Use the stopwatch to check that the time setting is correct 5.1 Cleaning ·...

  • Page 15: Troubleshooting

    6. Troubleshooting 6.1 General errors Problem Recommended Action Check the power cord connection. Power failure Check the power fuse of the device. Device cannot be started Check the lid is closed completely. Lid cannot be opened Press the ‘Lid open button’. Remove the dirt at the door latch and close the lid.

  • Page 16: Error Messages -15

    • Error of controlling system. • Switch power off and re-start. System • Overload of motor, damage of IPM • contact Hanil A/S center. error module. Door • Door not open in the stop status. • Check door-in switch.

  • Page 17: Emergency Release -16

    6. Troubleshooting 6.3 Emergency release In the event of a power failure or the centrifuge lid cannot be opened, active the emergency release. ① Switch off the power switch. ② Wait for the rotor to stop completely. ③ Find the “emergency release hole” at the left side of the decvice. ④...
  • Page 18 7. Rotors and tubes 7.1 Rotors for Smart 15 Plus 용량 Rotor Rotor ID MAX. RPM MAX. RCF MAX. R(mm) 55.5 A0.2M-32 32 x 0.2ml 12,500 9,695 71.2 18 x 1.5/2.0ml 15,000 17,910 A2.0M-18 Angle Rotors A2.0M-24 83.7 15,000 21,055 24 x 1.5/2.0ml...

  • Page 19: Rotor And Accessories

    7. Rotors and accessories 7.2 Rotors and accessories for Smart 15 Plus www.ihanil.com │ 18...
  • Page 20 7. Rotors and tubes 7.2 Rotors and accessories for Smart 15 Plus A2.0M - 18 Angle Rotor ∠45° Type Max. RPM 15,000 rpm Max. RCF 17,910 x g Radius 71.2 mm Dim. Ø /H Ø 147 x 38.5 mm Tube Capacity (ml) Dimensions Ø...
  • Page 21 7. Rotors and tubes 7.2 Rotors and accessories for Smart 15 Plus A2.0M - 24 Angle Rotor ∠45° Type Max. RPM 15,000 rpm Max. RCF 21,055 x g Radius 83.7mm Dim. Ø /H Ø 172 x 38.5mm Tube Capacity (ml) Dimensions Ø...
  • Page 22 MEMO...
  • Page 23 Hanil Scientific Inc. 16 Arayukro, Gimpo 10136, Rep. of KOREA T. 82-2-3452-8965 info@ihanil.com www.ihanil.com...
