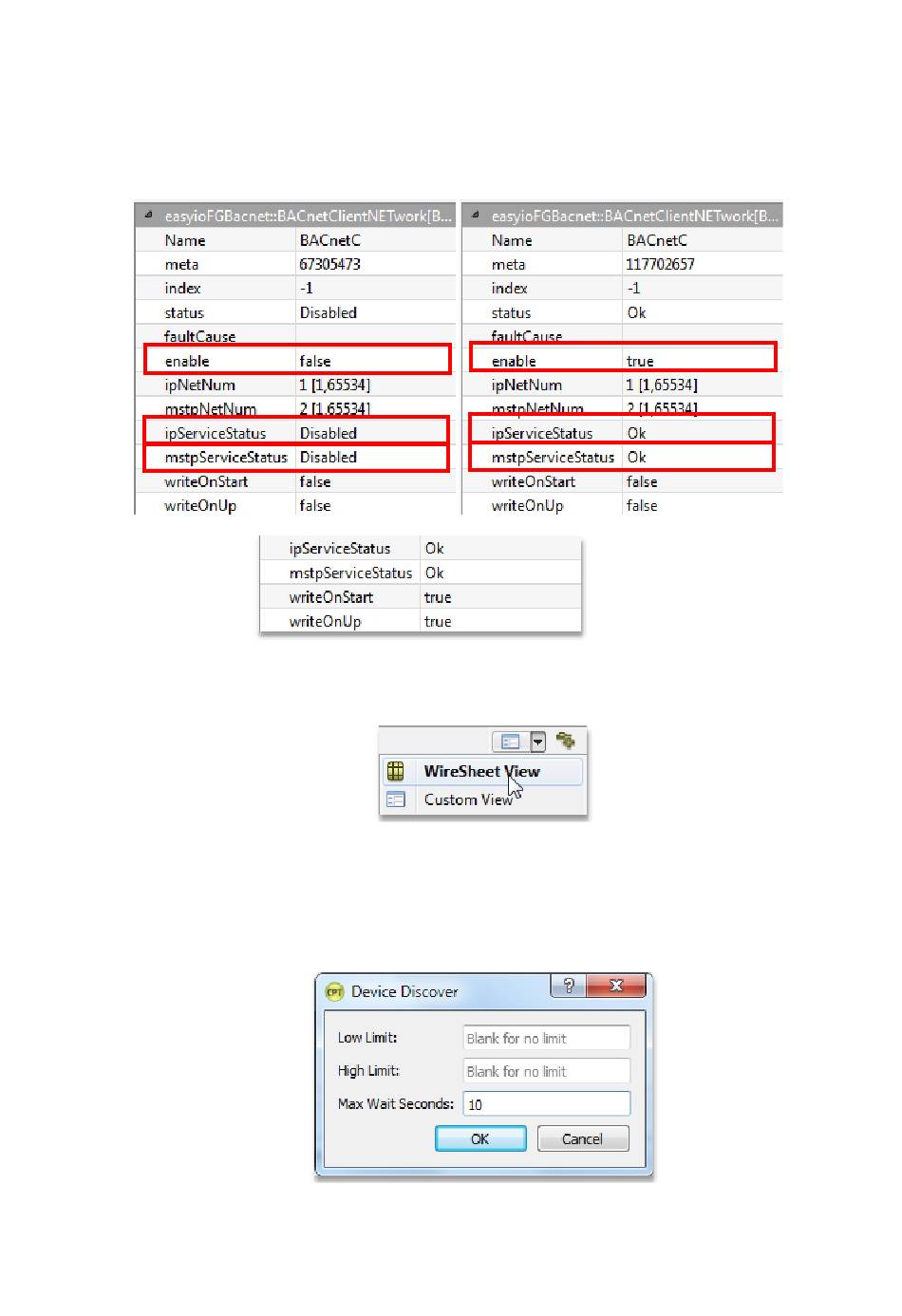

8. To view the property on the property sidebar, click the client network object and enable the client
network. After you enable the network, the IP service and MSTP service displays OK. You can view the
status in the BACnet service object configurations. Alternatively, you can enable writeOnStart and
writeOnUp to permit the client to rewrite a value when certain conditions occur. For efficient integration,
set the conditions to true.
9. Double-click the BACnet client object, which displays in the CPT custom BACnet device discovery view. To
change the view to the standard wiresheet view, click the Menu icon and select WireSheet View.
10. In the custom view, click Discover to proceed with the BACnet device discovery and click OK. Alternatively,
you can enter the device instance information to limit the device discovery to a specific BACnet instance.
CPT Tools begins a Who-Is and I-Am process. If the device discovery is successful, the custom view displays
a list of devices. If there is a large network, a device might not appear after the discovery process. If this
occurs, you must increase the maximum wait seconds.
