BACnet trend

The EasyIO FS series supports the BACnet trend. There are a total of 32 BACnet trends available. You can configure
the trends as Boolean trend, Analog trend, or Multistate trend. Each trend allows up to 1,000 records. The trend
performs a first in first out process, when the stopIsFull policy is set to false.

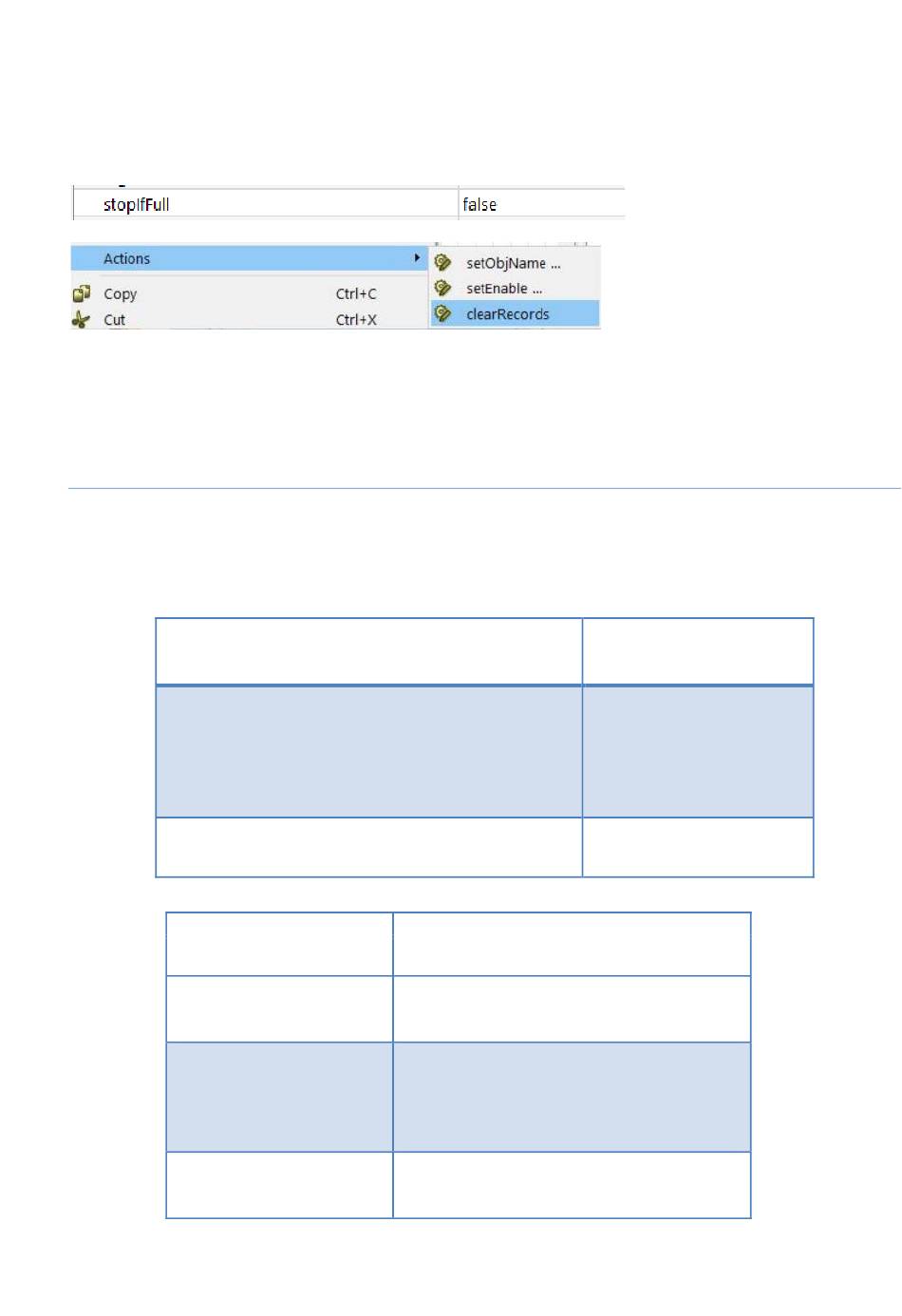

To clear the records, right-click the BACnetTrend object, click Actions, and click clearRecords. Use the manual
process to link a valid value to the BACnet Trend objects. The BACnet Trend objects do not trend any valid value by
themselves. You can trend a valid temp value as a BACnet object.

BACnet client configuration limitations

Device and points limitation

In V3.0b54 firmware or newer, the FS series supports the Johnson Controls SA Bus series thermostat. These models
are limited to NS8000 and NSA7000. You can use MSTP devices and SA Bus devices on the same bus. You can
connect a maximum of five SA bus devices to each FS RS-485 bus.
Maximum Recommendation Matrix
(A combination of IP device and MSTP Device + SA Bus
devices)
Device Count
Points Count per Device
Objects Types Supported
Analog Input, AI
Analog Output, AO
Analog Value , AV
Object Property Supported
Object Identifier
Object Name
Present Value
Object Identifier
Object Name
Present Value
Priority Array
Relinquish Default
Object Identifier
Object Name
Present Value
FS Series
63
(For example, 32 IP devices
and 31 MSTP devices, where
you can only have a
maximum of five SA Bus
devices)
32
