InstAllAtIon AnD MAIntenAnce InstructIons
M300MJ-4-20
4-20mA Analog Input Module
specIfIcAtIons
SLC
Normal Operating Voltage:
Maximum Current Draw:
Average Operating Current:
External Supply
Normal Operating Voltage:
Standby Current:
Maximum Current:
Initiating Device
Maximum Current:
Temperature Range:
Humidity:
Dimensions:
Accessories:
Before InstAllIng
This information is included as a quick reference installation guide. Refer to
the control panel installation manual for detailed system information. If the
modules will be installed in an existing operational system, inform the opera-
tor and local authority that the system will be temporarily out of service. Dis-
connect power to the control panel before installing the modules.
NOTICE: This manual should be left with the owner/user of this equipment.
generAl DescrIptIon
The M300MJ-4-20 4-20mA Analog Input Module is intended for use in in-
telligent, two-wire systems, where the individual address of each module is
selected using the built-in rotary switches. This module allows intelligent pan-
els to interface and monitor two-wire or three-wire sensors, that produce a
4-20mA signal output. It transmits the status (normal, open, or alarm) of one
sensor back to the control panel. The M300MJ-4-20 has a panel controlled
LED indicator. Only one sensor can be connected to the M300MJ-4-20.
coMpAtIBIlIty requIreMents
To ensure proper operation, this module shall be connected to a compati-
ble Johnson Controls system control panel only (list available from Johnson
Controls). In addition, please refer to Johnson Controls Device Compatibility
document for the list of compatible devices.

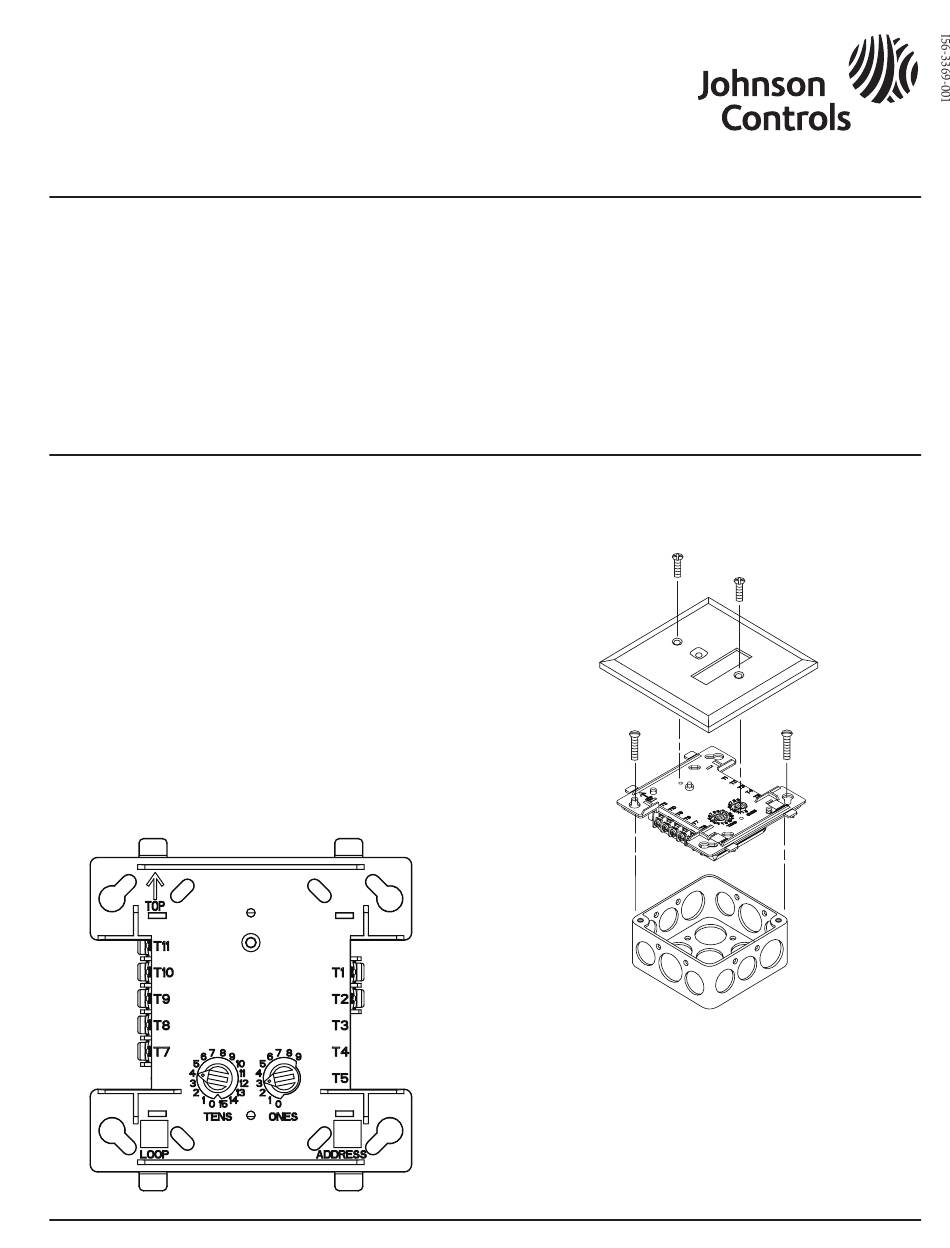

fIgure 1. controls AnD InDIcAtors:
JC-460-007
15 to 32 VDC
9.3 mA (LED on)
1 mA (LED flashing)
24 VDC Nominal
10 mA
510 mA
500 mA
–10°C to 60°C
10% to 95% Non-condensing
1 1
4 / ˝ H × 4˝ W × 1 / ˝ D (Mounts to a 4˝ square by 2
2 4
SMB500 Electrical Box
C0218-05
1
/ ˝ deep box.)
8
MountIng
The M300MJ-4-20 mounts directly to 4-inch square electrical boxes (see Fig-
ure 2). The box must have a minimum depth of 2
electrical boxes (SMB500) are available from Johnson Controls.
fIgure 2. MoDule MountIng:
WIrIng
NOTE: All wiring must conform to applicable local codes, ordinances, and
regulations. This module is intended for powerlimited wiring only.
1. Install module wiring in accordance with the job drawings and appropri-
ate wiring diagrams.
2. Set the address on the module per job drawings.
3. Secure module to electrical box (supplied by installer), Figure 2.
1
