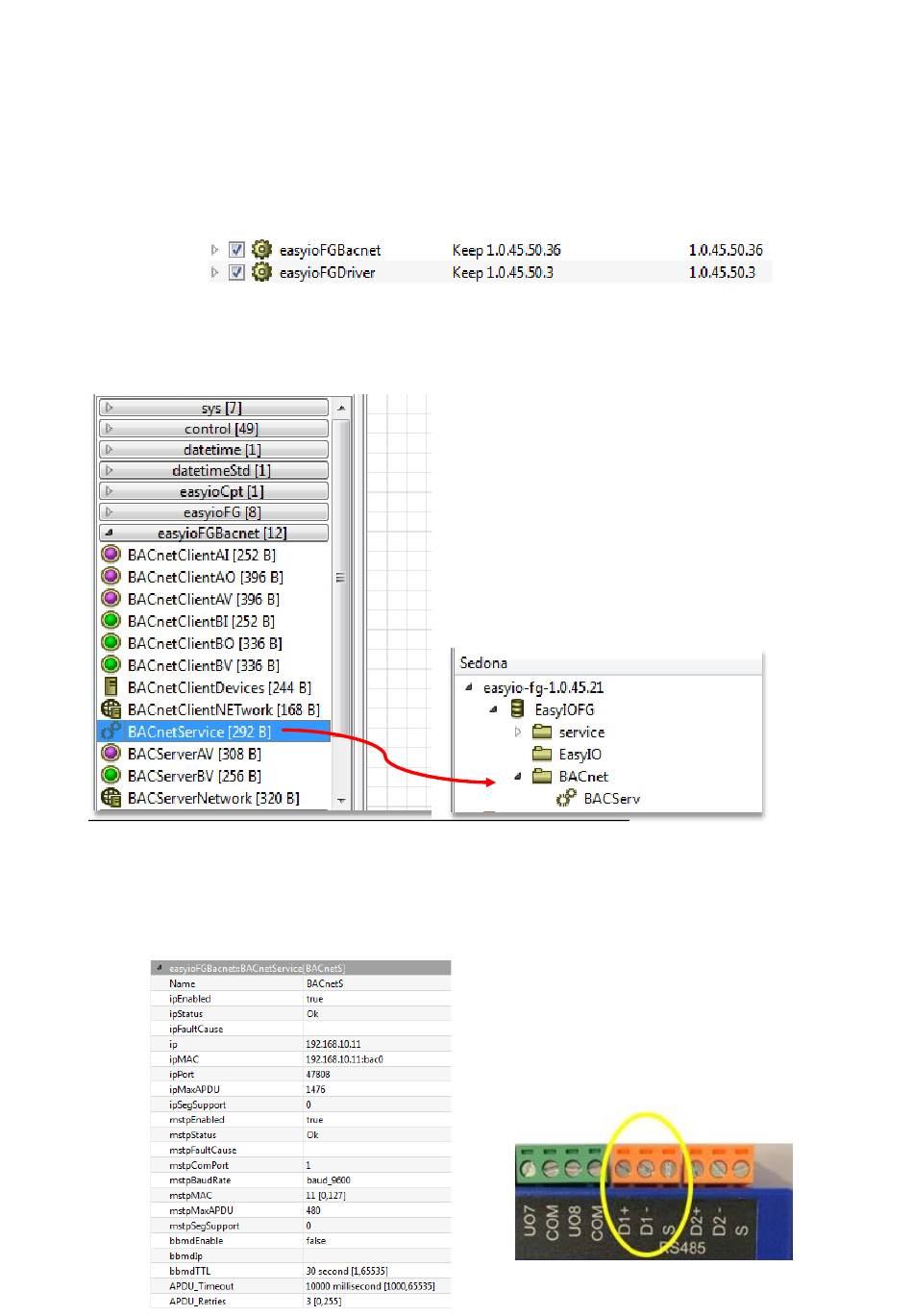

Johnson Controls EasyIO FS Series User Manual page 14

IP address : 192.168.10.12
•
• Username : admin
Password :<no password>
•
2. To add the kits to the controller, navigate to the kit management and install easyioFGBACnet and
easyioFGDriver on your controller.
3. Select easyioFGBACnet from the kit library, drag the BACService object into the EasyIO folder on your app.
Alternatively, you can create a new folder for the Service Object. In the following example, the object is in
a new folder with a BACnet label.
4. To view the property on the property sidebar, click the service object. In the above example, there is the
configuration of the BACnet communication parameters, such as the MSTP MAC address.
5. Select the BACnet communication stack that you want to enable. By default, both the IP stack and MSTP
stack are disabled.
