Note: For the MSTP connection, Port 1 is supported. Port 2 does not support BACnet MSTP. EasyIO FS

series is not a BBMD device or BACnet router. The FS BACnet service can register itself to a BBMD device

to receive broadcast messages through the bbmdEnable, bbmdIp, and bbmdTTL properties. If BBMD is not

preset or required in the network, these properties must be blank. If the communications stack is

configured correctly, the status displays OK.

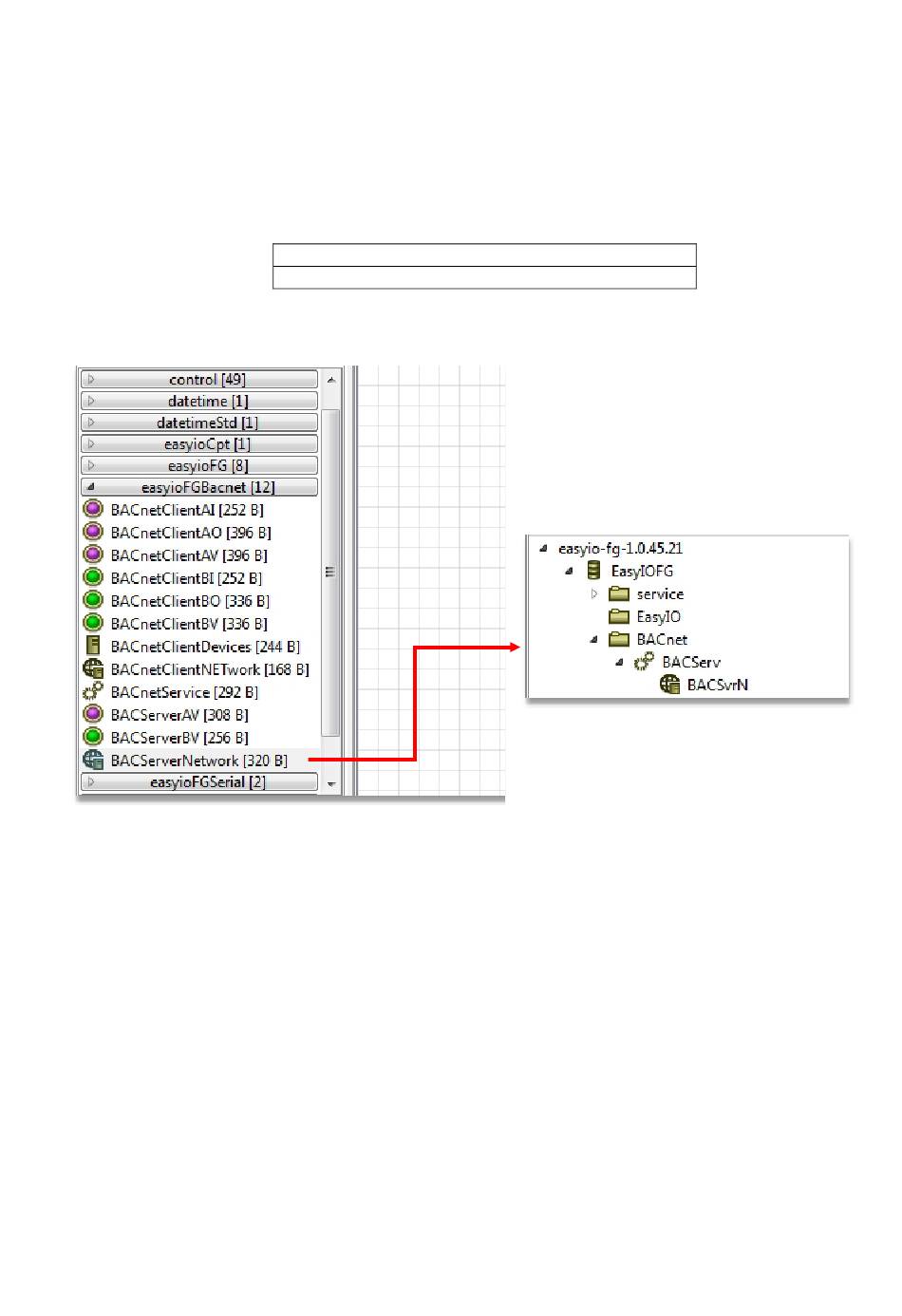

6. From the easyioFGBACnet object, drag BACnetServerNetwork into the BACnet service object on your app.

Note: The BACnet server and BACnet client object can coexist under the BACnet service object. There can

only be one BACnet service object in a controller. You cannot duplicate the BACnet service object.

7. To view the property on the property sidebar, click the Server Network object and enable the server

network. If the IP service and MSTP service are enabled correctly for the BACnet Service object, the status

displays OK.

FS Series Baud Rate Supported

9.6k , 19.2K, 38.4K, 76.8K
