Trend logs
(Support boolean,
float and integer)

BACnet server configuration

You can deploy the architecture of the driver, as per the below procedure. You can drop the network object
anywhere in the Sedona app tree. It is best practice to create a separate folder for each network.
Bacnet Service
Bacnet Server Network (IP and MSTP)
Points (BACnet server objects)
The BACnet driver kit, easyioFGBACnet, is dependent on the installation of the easyioFGDriver. To install both kits
to enable configuration of the BACnet network in an FS series device, complete the following steps:
1. Connect to the controller with Sedona Workbench or CPT Tools with the following default logon
credentials:
• IP address: 192.168.10.12
• Username: admin
Password: <no password>
•

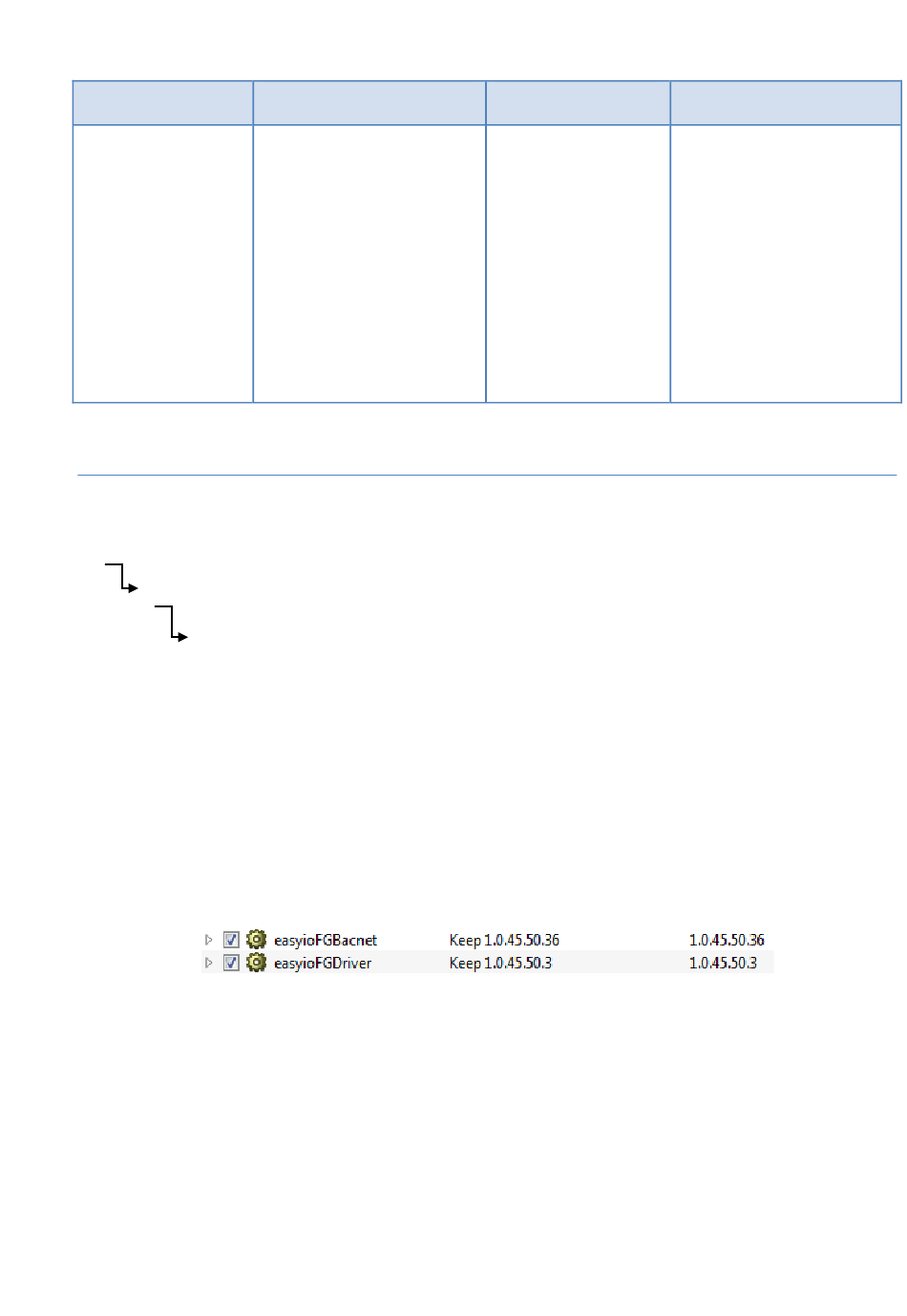

2. To add the kits to the controller, navigate to the kit management and install easyioFGBACnet and
easyioFGDriver on your controller.
3. Select easyioFGBACnet from the kit library, drag the BACService object into the EasyIO folder on your app.
Alternatively, you can create a new folder for the Service Object. In the following example, the object is in
a new folder with a BACnet label.
Object Name
Date List
Object Identifier
Object Name
Object Type
Enable
Stop When Full
Buffer Size
Log Buffer
Record Count
Total Record Count
Event State
Logging Type
Status Flag
Log Interval
Present Value
Description
Trigger
(Calendar 0 ~ Calendar 15)
32
(Trend 0 ~ Trend 31)
