Chapter 2 Appearance - HikRobot SC2000E Series Quick Start Manual

Note
Appearance here is for reference only. Refer to the device's specification for detailed dimension
information.
No. Name
1 Focus Knob
2 Screw Hole
3 Trigger Button
4 SR Cable
5 LNK Indicator
SC2000E Series Vision Sensor Quick Start Guide

Chapter 2 Appearance

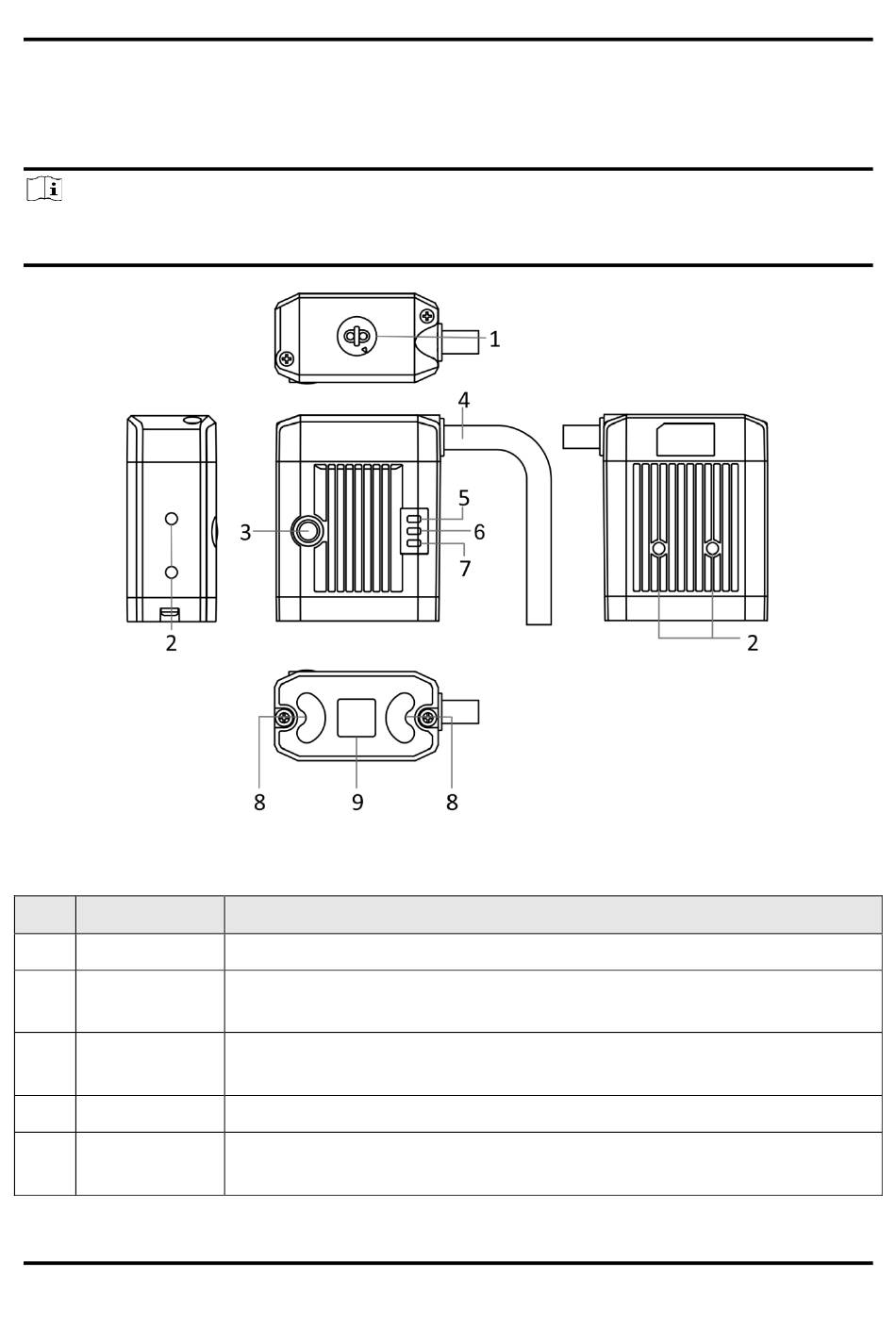

Figure 2-1 Appearance
Table 2-1 Component Description
It is used to adjust focal length manually.
It is used to fix the device to the installation position. You should use M3
screw.
When the device is in trigger mode, press the button and the device triggers
once.
SR cable connector provides power, digital I/O, Ethernet, and serial port.
It is a network status indicator. The indicator is flashing green when the
network transmission is normal. Otherwise, it is unlit.
Description
2
