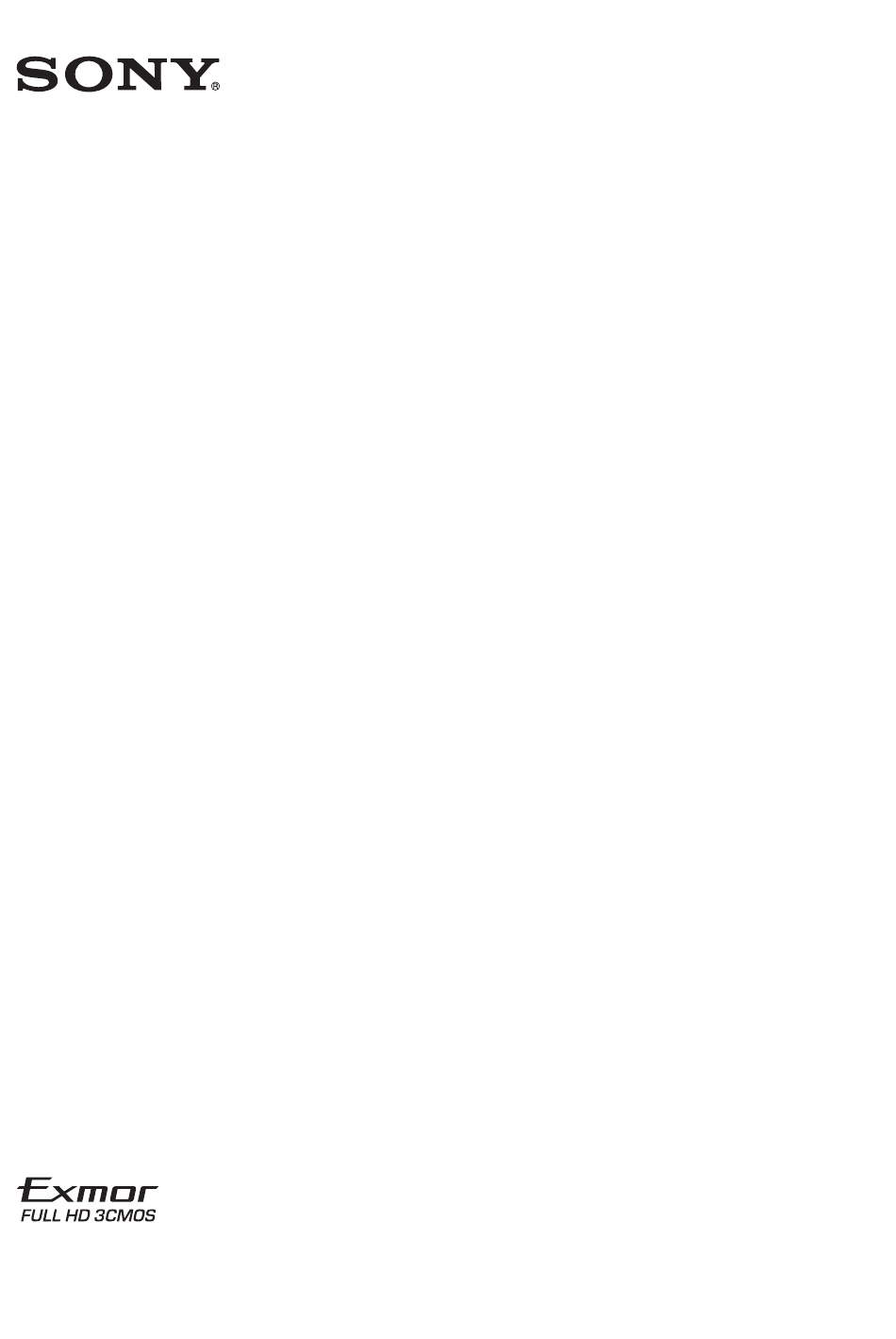

HD COLOR CAMERA
HXC-FB75H
HXC-FB75KC
FIBER CONNECTOR KIT
HKC-LC01
SERVICE MANUAL
1st Edition

Advertisement

Table of Contents
loading

Related Manuals for Sony HXC-FB75H

Summary of Contents for Sony HXC-FB75H

  • Page 1 HD COLOR CAMERA HXC-FB75H HXC-FB75KC FIBER CONNECTOR KIT HKC-LC01 SERVICE MANUAL 1st Edition...
  • Page 2 CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT This HD Color Camera is classified as a CLASS 1 LASER PRODUCT. HXC-FB75H/HXC-FB75KC...
  • Page 3 Batterien nur durch den vom Hersteller empfohlenen Kasser batteriet i henhold til gjeldende avfallsregler. oder einen gleichwertigen Typ ersetzen. Wenn Sie die Batterie entsorgen, müssen Sie die Gesetze der jeweiligen Region und des jeweiligen Landes befolgen. HXC-FB75H/HXC-FB75KC...

  • Page 5: Table Of Contents

    Device Check........................3-1 HXC-FB75H/HXC-FB75KC...
  • Page 6 Replacing NEUTRIK’s Optical Connector with LEMO’s Optical Connector..........5-1 HXC-FB75H/HXC-FB75KC...
  • Page 7 Forced Version Update......................7-5 HXC-FB75H/HXC-FB75KC...
  • Page 8 CN-3857 Board......................10-6 HXC-FB75H/HXC-FB75KC...
  • Page 9 Frame Wiring......................... .12-5 Revision History HXC-FB75H/HXC-FB75KC...

  • Page 11: Purpose Of This Manual

    Related manuals The following manuals are available for this model. If any of these manuals is required, please contact your local Sony Sales Office/Service Center. • Operating Instructions CD-ROM (supplied with the unit) This manual contains information required to operate and use the unit.

  • Page 13: Service Overview

    Input and Output Signals of the Connectors Input Connectors AUDIO 1/2 IN XLR 3-pin, Female SDI IN HD-SDI: BNC type, SMPTE ST292-1, 0.8 V p-p, 75 Ω, 1.485 Gbps/ 1.4835 Gbps BTA-S004A compliant - External View - (0 dBu = 0.775 V rms) HXC-FB75H/HXC-FB75KC...
  • Page 14 RET IN (SD VIDEO) — No connection — No connection 10. INTERCOM EXT DC (H) +10.5 to +17.0 V DC XLR 5-pin, Female Output Connectors SDI OUT HD-SDI/SD-SDI selectable - External View - (0 dBu = 0.775 V rms) HXC-FB75H/HXC-FB75KC...
  • Page 15 6 7 8 OUT: Open Collector 10 11 12 (max. 10 mA) 15 16 17 IN: Contact 18 19 20 — — - External View - Assignable2 IN/OUT Digital IO OUT: Open Collector (max. 10 mA) IN: Contact Continued Unbalance: GND HXC-FB75H/HXC-FB75KC...
  • Page 16 EX 0.8 ON 30 kΩ - External View - ZOOM PO- WIDE: 2 V, TELE: 7V SITION Signal Specifications FOCUS ∞: 7 V, Min: 2V OPTICAL Optical output POSI (LENS RX) OPTICAL Optical input FOCUS — POSI (LENS TX) Continued HXC-FB75H/HXC-FB75KC...

  • Page 17: Wiring Diagrams For Cables

    — 8P CONNECTOR (MALE) — RX IN C1 — GND for RX IN H (WIRING SIDE) RX IN C2 — GND for RX IN H TX OUT H HD-SDI signal output TX OUT C3 — GND for TX OUT H Continued HXC-FB75H/HXC-FB75KC...

  • Page 18: Connectors And Cables

    HIROSE HR10A-7P-4P equivalent Continued If using a cable of length different from a standard product, contact your local Sony Sales Office/Service Center. The pin 8 of CCA-5 cable is GND (ground). The pin 8 of REMOTE cable is not GND (ground).

  • Page 19: Functions Of Onboard Switches And Led Indicators

    B4 (side A) PLL-NG Lights when the PLL is abnormal. Note Do not touch the unused switches. Ref. No. Address Name Description Factory Set- ting S600 A3 (side B) — Not used — Not used — Not used — Not used HXC-FB75H/HXC-FB75KC...
  • Page 20 Ref. No. Address Name Description Factory Set- ting S301 C3 (side A) JTAG EN — Not used — S701 C2 (side A) MODE Display and Hide the TOP MENU screen OFF: Normal operation ON: FRAM clear Not used Not used HXC-FB75H/HXC-FB75KC...

  • Page 21: Ps-904A Board

    1-2-3. PS-904A Board D001 PS-904A BOARD (A side) Ref. No. Address Name Color Description Normal State D001 B1 (side A) — Green Lights when the power (+48 V) is supplied to the CCU connector. HXC-FB75H/HXC-FB75KC...

  • Page 22: Intercom Settings

    In the case of dual-type headphone to listen the same sound with both ears or single-type headphone Set INTERCOM RECEIVE SELECT on the INTERCOM page of the OPERATION menu to “MIX”. The same sound is output from right and left. 1-10 HXC-FB75H/HXC-FB75KC...
  • Page 23 To adjust the volume of your voice Set volume in SIDE TONE on the INTERCOM page of the OPERATION menu. INTERCOM is appeared when PANEL TYPE is set to “UCJ”, ENG and PROD are appeared when PANEL TYPE is set to “CE”. 1-11 HXC-FB75H/HXC-FB75KC...

  • Page 24: Flexible Flat Cable And Coaxial Cable

    Type of Connectors Board Ref. No. Connector for Flexible Flat Cable Connector for Fine-Wire Coaxial Cable AU-374 CN005 Type A — CN-3856 CN002 — Type B DPR-373 CN002 Type A — CN200 — Type A CN201 — Type A Continued 1-12 HXC-FB75H/HXC-FB75KC...

  • Page 25: Disconnecting And Connecting Flexible Flat Cable

    Close the latch of the connector in the direction of arrow B to lock the flexible card wire. 1-4-3. Disconnecting/Connecting Fine-Wire Coaxial Cable Note • Be very careful when handling the fine-wire coaxial cable so that fine wires are not disconnected. 1-13 HXC-FB75H/HXC-FB75KC...
  • Page 26 Hold both sides of the fine-wire coaxial cable connector, and pull the connector in the arrow direction to disconnect Connecting Both sides of connector Fine-wire coaxial cable Insert the connector of fine-wire coaxial cable in the arrow direction to connect it. Note Insert firmly the connector of fine-wire coaxial cable in the interior. 1-14 HXC-FB75H/HXC-FB75KC...
  • Page 27 Lift the tool straight in the arrow direction with the hook hooked to disconnect the connector of the fine-wire coaxial cable. Connecting Fine-wire coaxial cable Connector Insert firmly the connector of the fine-wire coaxial cable into the interior. 1-15 HXC-FB75H/HXC-FB75KC...

  • Page 28: Disconnecting/Connecting Coaxial Cable

    Pull the plug straight in the arrow direction to disconnect the coaxial cable. Connecting Hold the plug to connect. Connecting connector Hold the plug of the coaxial cable. Push the plug perpendicularly to the connector while slightly turning the plug clockwise and counterclockwise. 1-16 HXC-FB75H/HXC-FB75KC...

  • Page 29: Circuit Protection Parts

    Address Part No. Holding Current AU-374 TH001 B1 (side A) 1.10 A/20 °C 1-802-063-21 TH002 B1 (side A) 1.10 A/20 °C 1-802-063-21 TH201 F1 (side A) 1.10 A/20 °C 1-802-063-21 TH202 B1 (side A) 1.10 A/20 °C 1-802-063-21 1-17 HXC-FB75H/HXC-FB75KC...

  • Page 30: Service Tools

    J-6325-400-A Torque driver (3 kg•cm) (0.3 N•m) J-6252-510-A Torque driver (6 kg•cm) (0.6 N•m) J-6252-520-A Torque driver (10 kg•cm) (1.0 N•m) 7-600-002-52 ThreeBond (TB-1401B) For preventing screws from being loosened Commercially available Loctite (408) Instant adhesives 1, 2 1-18 HXC-FB75H/HXC-FB75KC...

  • Page 31: Lead-Free Solder

    • The ordinary soldering iron can be used but the iron tip has to be applied to the solder joint for a slightly longer time. The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful. 1-19 HXC-FB75H/HXC-FB75KC...

  • Page 33: Periodic Maintenance And Inspection

    If the terminal of connector is deformed or bends due to vibrations or shock, or if the surface of the terminal corrodes due to long-term outside use or other similar use, the unit may malfunction. Replace the battery connector immediately if the terminal is deformed or bends, or if the surface color changes. (Refer “4-10. Battery Connector Assembly”.) HXC-FB75H/HXC-FB75KC...

  • Page 34: Recommended Replacement Parts

    3-097-054-13 DC fan (40 square) Check every five years and replace it if necessary. 1-787-899-11 (When used for eight hours a day.) PS-904A board A-2124-447-A It is recommended that replace it when energizing time has elapsed about 25,000 hours. HXC-FB75H/HXC-FB75KC...

  • Page 35: Cleaning The Air Vents

    Clogging of dust or foreign matters may cause a temperature increase inside the camera, which may result in a failure. Clean the air vents every two or three months. Procedure Remove dust on the five air vent areas with a vacuum cleaner. Air vents Air vents Air vents HXC-FB75H/HXC-FB75KC...

  • Page 36: Replacing Lithium Battery

    Remove the Lithium secondary battery (ML621 (U)) from the four hooks of the battery holder on the SY-451 board, and replace it. SY-451 board Lithium secondary battery Hooks Hooks Note Be sure to use an insulating stick to remove the Lithium secondary battery (ML621 (U)). Install the removed parts by reversing the steps of removal. HXC-FB75H/HXC-FB75KC...
  • Page 37 The date and time in the internal clock to be set. (For setting method, refer to Operating Instructions.) HXC-FB75H/HXC-FB75KC...

  • Page 38: Cleaning Of Connector/Cable

    Cleaning of male connector While pushing the shell, clean the tip of the white optical contacts using the optical connector cleaner. The sealing shutter is released while the shell is being pushed. Optical contacts (white) Shell Male connector Optical connector cleaner HXC-FB75H/HXC-FB75KC...
  • Page 39 Cleaning of male connector While pushing the shell, clean the tip of the white optical contacts with a cotton swab moistened with alcohol. The sealing shutter is released while the shell is being pushed. Optical contacts (white) Shell Male connector HXC-FB75H/HXC-FB75KC...

  • Page 40: Cleaning Connectors/Cables Of Lemo

    Optical contacts (white) Cleaning of Female Connector Insert the optical connector cleaner straight. Ensure that it is held straight when inserting. Apply sufficient pressure to ensure that the optical contact is a little depressed. (approximately 600 g to 700 g) HXC-FB75H/HXC-FB75KC...
  • Page 41 Tool and Fixtures • Alignment sleeve remover HC-001 (for female connector) Sony Part No. : J-6480-010-A or DCC.91.312.5LA manufactured by LEMO, or equivalent Note Insert the shorter nose end when removing/installing the alignment sleeve. Grasp not the shock absorber portion of the remover but the handle in use.
  • Page 42 The alignment sleeve can be removed/reinstalled with the sleeve itself attached to the tip of the remover. Great care should be taken so as not to lose or damage the alignment sleeve. Alignment sleeve: Sony Part No. : 9-980-074-01 Alignment sleeve Clean the tip of the white optical contacts with a cotton swab moistened with alcohol.

  • Page 43: Diagnostics

    Set the cursor at [TOP] and press the the menu control knob. The TOP MENU screen showing the entire configuration of menu items appears. Set the cursor to [DIAGNOSIS] and press the the menu control knob. Set the cursor to [BOARD STATUS] and press the the menu control knob. HXC-FB75H/HXC-FB75KC...

  • Page 44: Function Limit

    ○ AUTO KNEE ○ ○ ○ ○ ○ ○ ○ FLARE ○ ○ ○ ○ ○ ○ ○ D.EXT ○ ○ ○ ○ ○ ○ ○ TLCS (AUTO SHUTTER) The function that is set in ON later is preceded. HXC-FB75H/HXC-FB75KC...

  • Page 45: Replacement Of Main Parts

    Tightening torque M2 : 0.30 ±0.03 N·m M2.6 : 0.53 ±0.07 N·m M3: 0.80 ±0.12 N·m When using the torque driver with the notation of cN·m, interpret it as follows. Example: 0.8 N·m = 80 cN·m HXC-FB75H/HXC-FB75KC...

  • Page 46: Location Of Printed Wiring Boards

    4-2. Location of Printed Wiring Boards DPR-373 PS-904A SY-451 IF-1306 SW-1695 AT-189M AU-374 LE-409 CN-3857 CN-3856 SW-1696 CN-3858 CCM-76 CN-3860 CN-3855 CN-3852 CN-3861 CN-3859 CN-3853 SW-1694 SW-1693 CN-3854 HXC-FB75H/HXC-FB75KC...
  • Page 47 BI-254 SE-1179 BI-256 BI-254 HXC-FB75H/HXC-FB75KC...

  • Page 48: Actions To Be Taken During Board Replacement And After Board Replacement Or After Board Repair

    When any of the following boards or ICs is replaced, deal with action to be taken in replacing parts. Note The part number listed in “Spare Parts” is for IC which is not programmed. If replacement is needed, contact your local Sony Sales Office/Service Center. Board Ref. No.

  • Page 49: Alignment And Setting Required When Replacing Sy-451 Board

    If attach the AT-189 board other than the AT-189M board used in this unit, the unit does not work properly. Procedure Replace the AT-189M board. (Refer to “4-4-2. AT-189M Board”.) Upgrade the software. (Refer to “7-1. Upgrading Software Programs”.) HXC-FB75H/HXC-FB75KC...
  • Page 50 Set the model name and serial number again on SERIAL NO. page of the SERVICE menu, and execute the STORE FILE. (Refer to 9-2-1.“SERIAL NO.”.) HXC-FB75H/HXC-FB75KC...

  • Page 51: Inside Panel Assembly And Boards In The Inside Panel Assembly

    Remove the two panel supports from the main chassis, and remove the inside panel assembly. Panel support Main chassis Flexible flat cables SY-451 board Inside panel assembly CN002 CN001 Install the removed parts by reversing the steps of removal. HXC-FB75H/HXC-FB75KC...

  • Page 52: At-189M Board

    SY-451 board Install the removed parts by reversing the steps of removal. 4-4-3. SY-451 Board Preparation Remove the inside panel assembly. (Refer to “4-4-1. Inside Panel Assembly”) Procedure Disconnect the harness from the connector (CN003) on the SY-451 board. HXC-FB75H/HXC-FB75KC...

  • Page 53: Sw-1696 Board

    Remove the inside panel assembly. (Refer to “4-4-1. Inside Panel Assembly”) Procedure Disconnect the harness from the connector (CN001) on the SW-1696 board. Harness CN001 SW-1696 board Remove the RE knob and VR knob. Remove the three screws, and remove the SW-1696 board. HXC-FB75H/HXC-FB75KC...
  • Page 54 Remove the two cushions (drop protection) from the SW-1696 board. SW-1696 board Cushions (drop protection) PSW2 x 5 VR knob RE knob Install the removed parts by reversing the steps of removal. 4-10 HXC-FB75H/HXC-FB75KC...

  • Page 55: Front Assembly

    • Align the three bosses with the two holes and the groove of the front partition bracket. (Refer to the figure above.) • Pass the five harnesses into the two notches A and B of the separator cushion (F). (Refer to the figure below.) Harnesses Notch A Notch A Separator cushion (F) Notch B Notch B Harnesses 4-11 HXC-FB75H/HXC-FB75KC...
  • Page 56 (2) Disconnect the two optical cables from the two connectors of optical module. Note When connecting the optical cable, pay attention as follows. • Connect after cleaning the tip of optical connector. • Confirm the marks (1, 2) of connectors, and connect correct connectors. Optical module Optical cables Clampers 4-12 HXC-FB75H/HXC-FB75KC...
  • Page 57 • Connect them in the following sequence: Blue, Yellow, Red. Disconnect the three harnesses from the three connectors (CN001, CN002, CN003) on the AU-374 board. Harnesses AU-374 board CN003 CN002 CN001 Note When connecting the three harnesses, set the harnesses to unspecified connectors. 4-13 HXC-FB75H/HXC-FB75KC...

  • Page 58: Cmos Block Assembly

    Hexagonal wrench (Width across : 1.5 mm), hexagonal wrench (Width across : 2.5 mm), are necessary as tools. Preparation Remove the inside panel assembly. (Refer to “4-4-1. Inside Panel Assembly”) Remove the front panel assembly. (Refer to “4-5-1. Front Panel Assembly”) 4-14 HXC-FB75H/HXC-FB75KC...
  • Page 59 Remove the set screw, and remove the filter knob. (Tightening torque:0.53 ±0.07 N·m) Set screw Filter knob Note When installing the filter knob, set the filter knob and the filter ID plate as shown in the figure. Filter ID plate “2” Filter knob 4-15 HXC-FB75H/HXC-FB75KC...
  • Page 60 Attach tape AS with a swell at the portion where tape AS contacts the fine-wire coaxial cable (blue) to prevent this cable from being pulled from the BI board side. Install the removed parts by reversing the steps of removal. 4-16 HXC-FB75H/HXC-FB75KC...

  • Page 61: Se-1179 Board

    • Install the filter ID plate in the direction where the “○” mark is visible, and match the position as shown in the figure. Filter ID plate “2” Filter knob Install the removed parts by reversing the steps of removal. 4-17 HXC-FB75H/HXC-FB75KC...

  • Page 62: Dpr Assembly

    • Align the three bosses with the two holes and the groove of the front partition bracket. • Pass the five harnesses into the two notches A and B of the separator cushion (F) as shown below. Harnesses Notch A Notch A Separator cushion (F) Notch B Notch B Harnesses 4-18 HXC-FB75H/HXC-FB75KC...
  • Page 63 (2) Disconnect the two optical cables from the two connectors of optical module. Note When connecting the optical cables, pay attention as follows. • Connect after cleaning the tip of optical connector. • Confirm the marks (1, 2) of connectors, and connect correct connectors. Optical module Optical cables Clampers 4-19 HXC-FB75H/HXC-FB75KC...
  • Page 64 Fine-wire coaxial cable (Red) CN102 CN302 Clamper Harnesses Note When connecting the fine-wire coaxial cables, pay attention as follows. • Set the fine-wire coaxial cables with attention color of cables. • Connect them in the following sequence: Blue, Yellow, Red. 4-20 HXC-FB75H/HXC-FB75KC...
  • Page 65 Coaxial cable J101 (Blue) J102 Coaxial cable CN002 (Red) CN001 CN201 CN005 Flexible flat cables AU-374 board Harness DPR-373 board Harness Note When connecting the coaxial cables, set the fine-wire coaxial cables with attention color of cables . 4-21 HXC-FB75H/HXC-FB75KC...
  • Page 66 Remove the four screws, and remove the DPR assembly. Bosses DPR assembly Hole Hole PSW3 x 8 Note When installing the DPR assembly, align the two bosses with the two holes of the DPR assembly. Install the removed parts by reversing the steps of removal. 4-22 HXC-FB75H/HXC-FB75KC...

  • Page 67: Dpr-373 Board, If-1306 Board

    “4-6. DPR Assembly”) Procedure Remove the IF-1306 board. (1) Remove the two clampers. (2) Remove the four screws, and disconnect the IF-1306 board from the connector (CN003) on the DPR-373 board. Clamper PSW2x5 IF-1306 board CN101 CN003 DPR-373 board 4-23 HXC-FB75H/HXC-FB75KC...
  • Page 68 T1.5(30 x 30) Boss Note When attaching the DPR heat sink bracket, align the boss with the hole and then tighten screw [a] first and tighten other screws. Install the removed parts by reversing the steps of removal. 4-24 HXC-FB75H/HXC-FB75KC...

  • Page 69: Ps-904A Board

    Remove the DPR assembly. (Refer to “4-6. DPR Assembly”) Procedure Disconnect the nine harnesses from the nine connectors (CN001 to CN009) on the PS-904A board. Harness Harness CN005 PS-904A board CN001 CN003 CN002 Harnesses CN004 CN009 CN006 CN007 CN008 Harnesses Harness 4-25 HXC-FB75H/HXC-FB75KC...
  • Page 70 Projection PSW3 x 8 PS-904A board PS shield sheet PSW3 x 8 Note When installing the PS-904A board, align the boss with the hole of the PS-904A board. Install the removed parts by reversing the steps of removal. 4-26 HXC-FB75H/HXC-FB75KC...

  • Page 71: Dc Fan (40 Square)

    Fan cushion CN020 Fan bracket PSW3 x 8 AU-374 board Note When installing the DC fan (40 square), pay attention the position of the label and the harness. Install the removed parts by reversing the steps of removal. 4-27 HXC-FB75H/HXC-FB75KC...

  • Page 72: Battery Connector Assembly

    Assembly”) Procedure Remove the bottom cover. (1) Slide the shoulder pad assembly in the direction of arrow. (2) Remove the four screws, and remove the bottom cover. B3 x 8 Shoulder pad assembly Bottom cover B3 x 8 4-28 HXC-FB75H/HXC-FB75KC...
  • Page 73 Harness Lug terminal Clamper PSW3x8 CN011 AU-374 board Harness Remove the four screws, and remove the battery connector assembly. Harnesses Lug terminal Battery connector assembly P2.6 x 5 Install the removed parts by reversing the steps of removal. 4-29 HXC-FB75H/HXC-FB75KC...

  • Page 74: Sw-1694 Board

    Disconnect the harness from the connector (CN001) on the SW-1694 board. Remove the screw, and remove the SW-1694 board. Harness CN001 PSW2x5 Drop protection cap SW-1694 board Cushion (blind) Install the removed parts by reversing the steps of removal. 4-30 HXC-FB75H/HXC-FB75KC...

  • Page 75: Cn-3853 Board

    Disconnect the harness from the connector (CN002) on the CN-3853 board, and then remove the CN-3853 board. Remove the lens CN cushion. CN002 Lens CN cushion Harness PSW2 x 5 CN-3853 board Install the removed parts by reversing the steps of removal. 4-31 HXC-FB75H/HXC-FB75KC...

  • Page 76: Sw-1693 Board

    (2) Remove the Toggle switch cushion (C) and SW cap from the SW-1693 board. SW cap Toggle switch cushion (C) SW-1693 board Front SW cushion VR (AUDIO) knob RE knob Install the removed parts by reversing the steps of removal. 4-32 HXC-FB75H/HXC-FB75KC...

  • Page 77: Cn-3854 Board

    (2) Disconnect the three harnesses from the three connectors (CN001 to CN003) on the CN-3854 board. Harness Harness PSW2 x 5 CN001 CN003 Harness CN-3854 board CN002 Front SW PC board bracket Install the removed parts by reversing the steps of removal. 4-33 HXC-FB75H/HXC-FB75KC...

  • Page 78: Cn-3852 Board

    Remove the two screws, and pull out the CN-3852 board. Disconnect the harness from the connector (CN002) on the CN-3852 board. BVTP2.6 x 10 BVTP2.6 x 10 Harness CN002 CN-3852 board Install the removed parts by reversing the steps of removal. 4-34 HXC-FB75H/HXC-FB75KC...

  • Page 79: Board

    (2) Disconnect the harness from the connector (CN001) on the LE-409 board. (3) Remove the toggle switch cushion (C) from the LE-409 board. LE-409 board Toggle switch cushion (C) CN001 Harness Separator cushion (F) Install the removed parts by reversing the steps of removal. 4-35 HXC-FB75H/HXC-FB75KC...
  • Page 80 (2) Remove the four screws (K3 x 8), and remove the shoe. (3) Remove the four screws (3 x 8), and remove the handle block. Stopper screw K 3 x 8 Plate spring 3 x 8 Shoe Handle Block 3 x 8 4-36 HXC-FB75H/HXC-FB75KC...
  • Page 81 (2) Remove the three screws, and remove the CCM-76 board. CN001 PSW2 x 5 Hole CCM-76 board Harness Boss Note When installing the CCM-76 board, align the boss with the hole of the CCM-76 board. Install the removed parts by reversing the steps of removal. 4-37 HXC-FB75H/HXC-FB75KC...

  • Page 82: Cn-3855 Board

    Peel off the tape AS, and disconnect the two harnesses from the two connectors (CN002, CN003) on the CN-3855 board. CN-3855 board CN002 Harnesses P2.6 x 5 CN003 Tape AS Note When installing the CN-3855 board, and secure the harnesses with tape AS. Harnesses Tape AS Install the removed parts by reversing the steps of removal. 4-38 HXC-FB75H/HXC-FB75KC...

  • Page 83: Sw-1695 Board

    Assembly”) Procedure Disconnect the harness from the connector (CN001) on the SW-1695 board. Remove the screw, and remove the SW-1695 board. CN001 Harness PSW2 x 5 SW-1695 board Install the removed parts by reversing the steps of removal. 4-39 HXC-FB75H/HXC-FB75KC...

  • Page 84: Optical Connector Assembly

    Optical Connector Assembly Preparation Remove the inside panel assembly. (Refer to “4-4-1. Inside Panel Assembly”) Remove the DPR assembly. (Refer to “4-6. DPR Assembly”) Procedure Disconnect the harness from the connector (CN001) on the PS-904A board. CN001 Harness PS-904A board 4-40 HXC-FB75H/HXC-FB75KC...
  • Page 85 Remove the three screws, and remove the optical connector block. Optical connector block 3 x 8 4-41 HXC-FB75H/HXC-FB75KC...
  • Page 86 • Connect after cleaning the tip of optical connector. • Confirm the marks (1, 2) of connectors, and connect correct connectors. Note When installing the two screws, apply locking compound to them. Install the removed parts by reversing the steps of removal. 4-42 HXC-FB75H/HXC-FB75KC...

  • Page 87: Au-374 Board

    CN012 CN006 CN007 CN013 CN009 CN017 CN010 CN020 AU-374 board Clamper Open the D-SUB cap, and remove the two attached screws. Locking compound D-SUB cap Attached screws Note When installing the two screws, apply locking compound to them. 4-43 HXC-FB75H/HXC-FB75KC...
  • Page 88 (1) Remove the AU-374 board from the main unit. Note When installing the AU-374 board to the main unit, insert it into the groove as shown below. (2) Remove the clamper. Groove Clamper AU-374 board Install the removed parts by reversing the steps of removal. 4-44 HXC-FB75H/HXC-FB75KC...

  • Page 89: Cn-3861 Board

    Procedure Disconnect the harness from the connector (CN004) on the CN-3861 board. Remove the two screws, and remove the CN-3861 board. Harness CN004 2.6 x 5 CN-3861 board Install the removed parts by reversing the steps of removal. 4-45 HXC-FB75H/HXC-FB75KC...

  • Page 90: Cn-3859 Board

    Disconnect the harness from the connector (CN014) on the AU-374 board. Bottom view Harness CN014 AU-374 board (To CN-3859 board) Remove the screw (BVTP3 x 12) and two screws (BTP2.6 x 10) , and pull out the CN-3859 board. 4-46 HXC-FB75H/HXC-FB75KC...
  • Page 91 CN-3859 board Remove the drop protection cushion, slide switch knob, and slide switch spacer from the CN-3859 board. Slide switch spacer Slide switch knob Drop protection cushion CN-3859 board Install the removed parts by reversing the steps of removal. 4-47 HXC-FB75H/HXC-FB75KC...

  • Page 92: Cn-3860 Board

    Remove the screw, and remove the CN-3860 board. Disconnect the harness from the connector (CN001) on the CN-3860 board. CN-3860 board CN001 Rear connector panel Harness PSW2 x 5 2.6 x 5 2.6 x 5 Install the removed parts by reversing the steps of removal. 4-48 HXC-FB75H/HXC-FB75KC...

  • Page 93: Cn-3858 Board

    Procedure Remove the two screws, and remove the CN-3858 board. Disconnect the harness from the connector (CN001) on the CN-3858 board. Harness 2.6 x 5 CN001 CN-3858 board Install the removed parts by reversing the steps of removal. 4-49 HXC-FB75H/HXC-FB75KC...

  • Page 94: Cn-3857 Board

    (1) Disconnect the two coaxial cables from the two connectors (J101, J102) on the DPR-336 board. (2) Release the two coaxial cables from the clamper. Coaxial cable (Blue) J101 Coaxial cable (Red) J102 Clamper DPR-336 board Note When connecting the coaxial cables, set the coaxial cables with attention color of cables. 4-50 HXC-FB75H/HXC-FB75KC...
  • Page 95 Disconnect the two coaxial cables from the two connectors (CN3, CN4) on the CN-3857 board. Coaxial cable (Blue) Coaxial cable (Red) CN-3857 board Note When connecting the coaxial cables, set the coaxial cables with attention color of cables. Install the removed parts by reversing the steps of removal. 4-51 HXC-FB75H/HXC-FB75KC...

  • Page 97: Installation

    Remove the DPR assembly. (Refer to “4-6. DPR Assembly”) Remove the optical connector assembly. (Refer to “4-20. Optical Connector Assembly” Procedure Cut the 2P connector (brown/black) at the foot of the optical connector with nippers. 2P connector (Brown, Black) Optical connector (LEMO) HXC-FB75H/HXC-FB75KC...
  • Page 98 • Check that the O-ring is fit into the groove of the optical connector (LEMO). Optical connector (LEMO) Connector bracket L (accessory) O ling Red mark Optical connector (LEMO) B3 x 8 (Black) Attach the optical connector block (LEMO) to the outside panel assembly with the three screws (B3 x 8 (black)). HXC-FB75H/HXC-FB75KC...
  • Page 99 B3 x 8 (Black) Connect the harness to the connector (CN001) on the PS-904A board. Push the ground line against the left side of the boss and fasten it with a screw. Harness CN001 PS-904A board Ground line Boss 3 x 8 HXC-FB75H/HXC-FB75KC...
  • Page 100 • Pass the optical cables at the DPR board side of the IF-1306 board. • Do not bend the optical cables strongly. Clamper Optical module Optical cables IF-1306 board Install the inside panel assembly. (Refer to “4-4-1. Inside Panel Assembly”) HXC-FB75H/HXC-FB75KC...

  • Page 101: Electrical Alignment

    Equipment Required Name Equipment HD waveform monitor Leader Electronics LV5150DA, Leader Electronics LV5152DA (multi format) or equivalent HD color monitor Sony BVM-D20F1A/E/U, BVM-D14H5A/E/U or equivalent Oscilloscope Tektronix TDS460A or equivalent Frequency counter Advantest TR5821AK or equivalent Master setup unit Sony MSU-1000/1500...

  • Page 102: Handling The Grayscale Chart

    • When the chart is not used for a long period and is stored, open the case and dry the chart for about an hour once or twice a month. Setting Illumination Measuring equipment : Illuminance meter (Calibrated) Procedure Turn on the light source. HXC-FB75H/HXC-FB75KC...
  • Page 103 Illuminance meter Light source Transparent grayscale chart (16:9) Recommended chart • Product name: Grayscale chart (16:9 transparent type) • Sony Part No.: J-6394-080-A Handling precautions Use calibrated pattern box. Setting Illumination Measuring equipment : Illuminance meter (KONICA MINOLTA LS-110 or equivalent , Calibrated) Preparation Place the pattern box where the chart is not exposed to light.

  • Page 104: Setup Menu

    [TOP] appears at the upper right of the screen of viewfinder and the screen of the monitor connected to TEST OUT connector or SDI OUT connector (by setting CHARACTER to ON). Set the cursor at [TOP] and press the the menu control knob. The TOP MENU screen showing the entire configuration of menu items appears. HXC-FB75H/HXC-FB75KC...
  • Page 105 To enter: Press the the menu control knob. To suspend: Set the DISPLAY/MENU switch to OFF. To restart the setting operation, turn the DISPLAY/MENU switch to the MENU side again. Exiting menu Set the DISPLAY/MENU switch to OFF. HXC-FB75H/HXC-FB75KC...

  • Page 106: Connection Of Equipment

    • Camera/CCU circuit ON/OFF block - KNEE OFF button → OFF (lit) - DETAIL OFF button → OFF(lit) - MATRIX OFF button → OFF (lit) - AUTO KNEE button → OFF (lit) - SKIN DETAIL button → OFF (lit) HXC-FB75H/HXC-FB75KC...

  • Page 107: Setup Menu Correspondence List

    The camera setup menu items corresponding to the adjustment items of MSU are described. Refer to the following tables when using the camera setup menu for electrical adjustments without using MSU. PAINT Menu • MSU: [PAINT] button → ON (lit) • Camera setup menu: Select the [PAINT] men. HXC-FB75H/HXC-FB75KC...
  • Page 108 FILE REFERENCE STORE FILE Lens Lens Store LENS FILE STORE FILE OHB Store SERVICE OHB FILE STORE FILE MAINTENANCE Menu • MSU: [MAINTENANCE] button → ON (lit) • Camera setup menu: Select the [MAINTENANCE] menu. Select the [PAINT] men. HXC-FB75H/HXC-FB75KC...
  • Page 109 H PARA H PARA [R/G/B] V SAW V SAW [R/G/B] V PARA V PARA [R/G/B] Lens Auto Iris Settings Level AUTO IRIS IRIS LEVEL APL Ratio APL RATIO V Mod Saw R/G/B PAINT VIDEO LEV- V MOD [R/G/B/M] Master HXC-FB75H/HXC-FB75KC...

  • Page 110: Automatic Adjustment

    START/BREAK button lights (ON), automatic adjustment is executed. After the adjustment is completed, the message “Completed” is displayed. When performing automatic level setup using the camera setup menu, set as follows. MENU: MAINTENANCE PAGE: AUTO SETUP ITEM: AUTO LEVEL 6-10 HXC-FB75H/HXC-FB75KC...

  • Page 111: Camera System Adjustment

    MENU: SERVICE PAGE: BLACK SHADING ITEM: MONITOR SEL → R Adjust this using the waveform monitor so that the pedestal level of R channel becomes equal within a range of –3 to +12 dB. ITEM: BLK SET [R] 6-11 HXC-FB75H/HXC-FB75KC...

  • Page 112: Black Shading Adjustment

    MASTER BLACK → 30 (30 dB) Procedure Set the format to “1080/59.94i”. (For the format change procedure, refer to the Operating Instructions.) Set as follows by camera setup menu. MENU: SERVICE PAGE: BLACK SHADING ITEM: MONITOR SEL → R 6-12 HXC-FB75H/HXC-FB75KC...

  • Page 113: Preset White Adjustment

    • 1080/50i • 1080/29.97PsF • 1080/25PsF • 720/59.94P • 720/50P File store MENU: SERVICE PAGE: BLACK SHADING ITEM: STORE FILE 6-3-4. Preset White Adjustment Equipment: Waveform monitor (R, G, B) Test point: SDI OUT connector Subject: Grayscale chart 6-13 HXC-FB75H/HXC-FB75KC...

  • Page 114: White Shading Adjustment

    When the next condition corresponds to even one, white shading is not adjusted correctly. • The brightness of the subject is uneven. • The brightness is not set correctly. • Iris value of lens is not set correctly. • Zoom position is not set correctly. 6-14 HXC-FB75H/HXC-FB75KC...
  • Page 115 ITEM: AUTO WHITE SHADING After the adjustment is completed, the message “AWS: OK” is displayed. Store the file. MENU: SERVICE PAGE: OHB FILE ITEM: STORE FILE After the store operation is completed, the message “OHB STORE OK” is displayed. 6-15 HXC-FB75H/HXC-FB75KC...

  • Page 116: Video System Level Adjustment

    (2) Touch panel operation: (Page 1) → [Detail] → [1/3] Setting: • Level → 99 • Limiter → 0 • Crispening → –25 • Level Dep → 25 Operate the [PAINT] menu of MSU, and set as follows. Touch panel operation: (Page 1) → [Detail] → [2/3] 6-16 HXC-FB75H/HXC-FB75KC...

  • Page 117: Detail Level Adjustment

    (2) Touch panel operation: (Page 1) → [Detail] → [1/3] Adjust the detail level to be added to each step of the grayscale to the desired level. • Adjustment item: [Level] Store the reference file. (Refer to “6-4-13. File Store”.) 6-17 HXC-FB75H/HXC-FB75KC...

  • Page 118: Crispening Adjustment

    Equipment: Waveform monitor (R, G, B) Test point: SDI OUT connector Subject: Grayscale chart Preparation • Setting for the MSU DETAIL OFF button → ON (unlit) • Shoot the grayscale chart so that it is aligned with the under scanned monitor frame. 6-18 HXC-FB75H/HXC-FB75KC...

  • Page 119: Detail Clip Adjustment

    • Setting for the MSU DETAIL OFF button → ON (unlit) KNEE OFF button → OFF (lit) • Shoot the grayscale chart so that it is aligned with the under scanned monitor frame. • Lens iris: F4 to F5.6 6-19 HXC-FB75H/HXC-FB75KC...
  • Page 120 Adjust the edge at portion B (white) to the desired clip level. • Adjustment item: [W Limiter] Adjust the edge at portion C (black) to the desired clip level. • Adjustment item: [B Limiter] Store the reference file. (Refer to “6-4-13. File Store”.) 6-20 HXC-FB75H/HXC-FB75KC...

  • Page 121: Auto-Iris Adjustment

    • Specification: A = 700±7 mV Store the reference file. (Refer to “6-4-13. File Store”.) 6-4-7. Pedestal Level Adjustment Equipment: Waveform monitor (R, G, B) Test point: SDI OUT connector Preparation • Setting for the MSU CLOSE button → ON (lit) 6-21 HXC-FB75H/HXC-FB75KC...

  • Page 122: Flare Adjustment

    If the lens aperture is greater than F5.6, adjust the light amount with the shutter. Procedure Operate the control panel of MSU, and set as follows. (1) PAINT button → ON (lit) (2) Touch panel operation: (Page 1) → [Flare] 6-22 HXC-FB75H/HXC-FB75KC...

  • Page 123: Flare Balance Adjustment

    • Lens iris: F4 to F5.6 • A = 600 ±20 mV If the lens aperture is greater than F5.6, adjust the light amount with the shutter. Procedure Open following item by camera setup menu. MENU: PAINT PAGE: VIDEO LEVEL ITEM: FLARE 6-23 HXC-FB75H/HXC-FB75KC...

  • Page 124: Gamma Correction Adjustment

    WHITE button → ON (lit) After the adjustment is completed, the message “AWB: OK” is displayed. Operate the control panel of MSU, and set as follows. (1) PAINT button → ON (lit) (2) Touch panel operation: (Page 1) → [Gamma] 6-24 HXC-FB75H/HXC-FB75KC...

  • Page 125: Knee Point And Knee Slope Adjustments

    To adjust all levels for R, G and B simultaneously, adjust them using [Master]. • Adjustment item : [R], [G], [B], [Master] • Reference value: A = 686 mV Operate the control panel of MSU, and set as follows. Touch panel operation: (Page 1) → [Knee] → [Knee Slope] 6-25 HXC-FB75H/HXC-FB75KC...

  • Page 126: White Clip Level Adjustment

    To adjust all levels for R, G and B simultaneously, adjust them using [Master]. • Adjustment item : [R], [G], [B], [Master] • Reference value: A = 756 mV Store the reference file. (Refer to “6-4-13. File Store”.) 6-26 HXC-FB75H/HXC-FB75KC...

  • Page 127: File Store

    Operate the control panel of MSU, and store file. (1) FILE button → ON (lit) (2) Touch panel operation: [Ref File] → [Ref Store] → [Start] After the reference file entry is completed, a message “Completed” is displayed. 6-27 HXC-FB75H/HXC-FB75KC...

  • Page 128: Output Level Adjustment

    MENU: MAINTENANCE PAGE: OTHERS ITEM: CAM BARS → OFF 6-5-2. TEST SAW Level Adjustment Note After the prism block assembly is replaced, adjust the TEST SAW level. Equipment: Waveform monitor (R, G, B) Test point: SDI OUT connector 6-28 HXC-FB75H/HXC-FB75KC...
  • Page 129 Set ITEM in step 1 (REFERENCE (ALL) [10 SEC CLEAR]) to OFF. Procedure Set the format to “1080/59.94i”. (For the format change procedure, refer to the Operating Instructions.) Operate the control panel of MSU, and set as follows. TEST 1 button → ON (lit) 6-29 HXC-FB75H/HXC-FB75KC...
  • Page 130 PAGE: WHITE SHADING ITEM: STORE FILE Operate the control panel of MSU, and set as follows. TEST 1 button → OFF (unlit) Set the format to “720/59.94P”. Make setting to the value adjusted in step 3 and execute STORE FILE. 6-30 HXC-FB75H/HXC-FB75KC...

  • Page 131: Nd Offset Adjustment

    MASTER GAIN → 12 (12 dB) Note Change GAIN values because the iris open end is not used. Store the file. MENU: SERVICE PAGE: OHB FILE ITEM: STORE FILE After the store operation is completed, the message “OHB STORE OK” is displayed. 6-31 HXC-FB75H/HXC-FB75KC...

  • Page 132: Rpn Compensation

    • When automatic RPN compensation (APR) is performed, reset the revision data at the time of the last time detection. Automatic detection of RPN is performed. • Manual RPN compensation adjustment data is not affected by executing the automatic RPN compensation (APR). • Automatic RPN compensation (APR) may take several minutes. 6-32 HXC-FB75H/HXC-FB75KC...

  • Page 133: Manual Rpn Compensation Adjustment

    CURSOR JUMP CURR RPN WIDTH SLS FLAG NORM RECORD RPN EXEC DELETE RPN EXEC MONITOR SEL : YPbPr Select the channel (R, G, or B) that is to be compensated. ITEM: RPN CH SELECT → R, G, B 6-33 HXC-FB75H/HXC-FB75KC...

  • Page 134: Procedures To Be Taken When The Rpn Compensation Fails

    Appearance of an RPN next to the pixel to be compensated means that adjacent RPNs exit. If an RPN appears in the diagonal direction, the RPN cannot be compensated. In this case, the CMOS image sensors or the prism block assembly must be replaced. For more information, contact your local Sony Sales Office/Service Center. 6-34 HXC-FB75H/HXC-FB75KC...

  • Page 135: Performing Automatic Rpn Detection Effectively

    After confirming that RPN disappears, select (turn the knob) “YES” by rotary encoder and confirm (press the button). A message “COMPLETE” is displayed, the compensation data is recorded. 6-7-4. Performing Automatic RPN Detection Effectively Preparation • Lens iris→ CLOSE • Setting for the MSU BARS button → OFF (unlit) SHUTTER button → OFF (unlit) 6-35 HXC-FB75H/HXC-FB75KC...
  • Page 136 Open the following page by camera setup menu. MENU: SERVICE PAGE: RPN MANAGE <RPN MANAGE> S03 TOP RPN ALL PRESET EXEC AUTO CONCEAL EXEC APR AT ABB Execute the automatic compensation of RPN. ITEM: AUTO CONCEAL → EXEC 6-36 HXC-FB75H/HXC-FB75KC...

  • Page 137: Software Upgrade

    Copy the camera application update data to the USB drive using the following procedure. Note For how to obtain the data file for update (hxcfb75_app.pkg), contact your local Sony Sales Office/Service Center. Create the following directory in the USB drive.
  • Page 138 Copy the OS update data to the USB drive using the following procedure. Note For how to obtain the data file for update (hxcfb75_os.pkg), contact your local Sony Sales Office/Service Center. Create the following directory in the USB drive. \MSSONY\PRO\CAMERA\HXCFB75 Copy the data file for update “hxcfb75_os.pkg”...

  • Page 139: Pld

    This unit uses the PLD (Programmable Logic Device) that supports USB drive to write and rewrite the internal data. If the part listed below needs to be replaced or to be upgraded, contact your local Sony Sales Office/Service Center. Note The part number of PLD (or ROM for PLD) in which data is not written yet, is shown in “Spare Parts”.
  • Page 140 Turn off and on the power of the unit and confirm that the version has been updated on the ROM VERSION page of the DIAGNOSIS menu. HXC-FB75H/HXC-FB75KC...

  • Page 141: Forced Version Update

    Copy the software or PLD data version update data file to the USB drive using the following procedure. Note For how to obtain the data files for update, contact your local Sony Sales Office/Service Center. Create the following directory in the USB drive.

  • Page 143: File System

    This file is stored in the camera. OHB File (Refer to “8-7. OHB File”.) Used for adjustment of the CMOS block maintenance. This file is stored in the camera. HXC-FB75H/HXC-FB75KC...

  • Page 144: Structure Of Paint Related Files

    • OHB matrix Factory-set value 0 (*1): The additional data of each file is sent to each circuit in the unit. (*2): For items that can be stored in the scene file and the reference file, refer to “8-8. File Items”. HXC-FB75H/HXC-FB75KC...

  • Page 145: Operator File

    [OPERATION] → [OPERATOR FILE] → [WRITE (CAM → USB)] Reading Reference: Refer to step 2 of 8-2-1.“Outline Figure of Operation”. Using OPERATION menu of this unit Reads the operator file stored in the USB drive to the camera. [OPERATION] → [OPERATOR FILE] → [READ (USB → CAM)] HXC-FB75H/HXC-FB75KC...

  • Page 146: Preset Operator File

    [FILE] → [OPERATOR FILE] → [STORE PRESET FILE] Initializing Reference: Refer to step 3 of 8-3-1.“Outline Figure of Operation”. Using FILE menu of this unit Introduce preset operator file from the factory settings. [FILE] → [FILE CLEAR] → [PRESET OPERATOR] HXC-FB75H/HXC-FB75KC...

  • Page 147: Scene File

    Reference: Refer to step 2 of 8-4-1.“Outline Figure of Operation”. Using PAINT menu of this unit Select the scene file number to be called. [PAINT] →[SCENE FILE] → [1] to [5] A file currently being called is indicated with its file number highlighted. HXC-FB75H/HXC-FB75KC...
  • Page 148 Reads the scene file stored in the USB drive to the camera. [PAINT] →[SCENE FILE] → [READ (USB → CAM)] Note Scene File data stored in the USB drive cannot be read when the power is just turned on. HXC-FB75H/HXC-FB75KC...

  • Page 149: Reference File

    Store the current status of the reference file. [FILE] → [REFERENCE] → [STORE FILE] Reference file data is stored in the camera and numerical data is indicated as 0. (Except for some data. Refer to “8-8. File Items”.) With RCP Open the File menu. HXC-FB75H/HXC-FB75KC...
  • Page 150 [FILE] → [REFERENCE] → [WRITE (CAM → USB)] Initializing All File Items Reference: Refer to step 5 of 8-5-1.“Outline Figure of Operation”. Using FILE menu of this unit Re-set the reference file to the factory settings (default value: 0). [FILE] → [FILE CLEAR] → [REFERENCE (ALL)] HXC-FB75H/HXC-FB75KC...

  • Page 151: Lens File

    Confirm that the lens number is 17. [FILE] → [LENS FILE] → Confirm lens number 17. Check the automatically set lens name and the F value at the lens open end. [FILE] → [LENS FILE] → [NAME] , [F NO] HXC-FB75H/HXC-FB75KC...
  • Page 152 [OPERATION] → [VF DISPLAY] → [EX] → Set to “ON”. Calling Using OPERATION menu of this unit Loads the lens file stored in the camera. Select the set lens file. [FILE] → [LENS FILE] → Select a lens number. 8-10 HXC-FB75H/HXC-FB75KC...

  • Page 153: Ohb File

    (4) Select 2 with the ND filter knob, adjust in the same procedures as step (2) to (3). (5) Select 3 with the ND filter knob, adjust in the same procedures as step (2) to (3). (6) Select 4 with the ND filter knob, adjust in the same procedures as step (2) to (3). 8-11 HXC-FB75H/HXC-FB75KC...
  • Page 154 (4) Select 2 with the ND filter knob, adjust in the same procedures as step (2) to (3). (5) Select 3 with the ND filter knob, adjust in the same procedures as step (2) to (3). (6) Select 4 with the ND filter knob, adjust in the same procedures as step (2) to (3). 8-12 HXC-FB75H/HXC-FB75KC...
  • Page 155 Press 1 or 2 in the sub menu to change the adjustment screen, and then adjust constants of the OHB matrix. Note Adjust the OHB matrix only when a subtle difference in color reproduction must be corrected. Store the OHB File. [Selection on the touch panel] [OHB File] → [OHB Store] → [Store] 8-13 HXC-FB75H/HXC-FB75KC...

  • Page 156: File Items

    × × × ○ Para-B Black Shading V × × × × ○ Para-R Black Shading V × × × × ○ Para-G Black Shading V × × × × ○ Para-B Continued –3 dB to +12 dB 8-14 HXC-FB75H/HXC-FB75KC...
  • Page 157 × ND Offset White-G ○ ○ × × × White-B ○ ○ OFFSET × ND Offset color temp — — — — — balance — — — — — Master White Gain × × × × × Continued 8-15 HXC-FB75H/HXC-FB75KC...
  • Page 158 Skin 1 Width ○ ○ × × × Skin 1 Sat ○ ○ × × × Matrix Matrix OFF ○ ○ × × × Preset Matrix ○ ○ × × × Preset Matrix ○ ○ × × × Continued 8-16 HXC-FB75H/HXC-FB75KC...
  • Page 159 Step Gamma ○ ○ × × × (0.90 to 0.35) R Gamma ○ ○ × × × G Gamma ○ ○ × × × B Gamma ○ ○ × × × M Gamma ○ ○ × × × Continued 8-17 HXC-FB75H/HXC-FB75KC...
  • Page 160 Standard — — — — — Reference file — — — — — store Reference file — — — — — store to memo- ry stick Reference file — — — — — recall from memory stick Continued 8-18 HXC-FB75H/HXC-FB75KC...
  • Page 161 ○ — !IND — — — ○ — — — — ○ — WHITE — — — ○ — 5600K — — — ○ — GAIN — — — ○ — SHUTT — — — ○ — Continued 8-19 HXC-FB75H/HXC-FB75KC...
  • Page 162 — — — ○ — VF OUT VF OUT — — — ○ — RET MIX VF — — — ○ — MIX DIRECTION — — — ○ — MIX VF MODE — — — ○ — Continued 8-20 HXC-FB75H/HXC-FB75KC...
  • Page 163 — ○ — POWER — — — ○ — UNBAL — — — ○ — SIDE TONE — — — ○ — INTERCOM INTERCOM RECEIVE — — — ○ — SELECT INTERCOM — — — ○ — Continued 8-21 HXC-FB75H/HXC-FB75KC...
  • Page 164 — ○ — — — — ○ — PROD — — — ○ — PGM/SDI1 — — — ○ — SDI2 — — — ○ — AUDIO1 — — — ○ — AUDIO2 — — — ○ — 8-22 HXC-FB75H/HXC-FB75KC...

  • Page 165: Setup Menu

    To restart the setting operation, turn the DISPLAY/MENU switch to the MENU side again. Exiting menu Set the DISPLAY/MENU switch to OFF. 9-1-2. Settable Special Function The following function is made available by setting it by the SERVICE menu. Not that this function is limited. HXC-FB75H/HXC-FB75KC...
  • Page 166 • Setting the number of scene files (Refer to SET UP of “9-2. SERVICE Menu”.) HXC-FB75H/HXC-FB75KC...

  • Page 167: Service Menu

    1008 CURSOR V POS. CURSOR JUMP CURR RPN WIDTH SLS FLAG NORM RECORD RPN EXEC DELETE RPN EXEC MONITOR SEL : YPbPr This menu is used for manual RPN compensation. For details, refer to “6-7-2. Manual RPN Compensation Adjustment”. HXC-FB75H/HXC-FB75KC...
  • Page 168 BLK SET: 00 OFFSET: 00 GAIN: MONITOR SEL : YPbPr STORE FILE: EXEC This menu is used for adjustment of the black shading. For details, refer to the following sections. • “6-3-2. Black Set Adjustment” • “6-3-3. Black Shading Adjustment” HXC-FB75H/HXC-FB75KC...
  • Page 169 OHB MATRIX: OFF MATRIX : OFF This menu is used for adjustment of the OHB matrix. Use this menu only when it is necessary to adjust subtle differences in color reproduction between blocks. For details, refer to “8-7. OHB File”. HXC-FB75H/HXC-FB75KC...
  • Page 170 –3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42, 48 dB (GAIN EXTEND) Slow shatter frame 2F, 3F, 4F, 5F, 6F, 7F, 8F 2F, 3F, 4F, 5F, 6F, 7F, 8F, 16F, 32F, 64F (SLS EXTEND) • This menu is used for setting the chroma filter. HXC-FB75H/HXC-FB75KC...
  • Page 171 AGC (F7/F8/F9) AGC amplifier control voltage (0.20 V to 3.27 V) SNR (F7/F8/F9) S/N measurement value of the OFDM demodulation IC input signal VITB (F7/F8/F9) OFDM signal reception status RF signal detection status (NO/DETECT) Synchronizing signal detection status (NO/DETECT) HXC-FB75H/HXC-FB75KC...

  • Page 173: Circuit Description

    C bus. Production adjustment data specific to the CMOS block is retained in the EEPROM (IC4) and is read by the PLD (IC300) as needed. 10-1-2. SE-1179 Board This board is used to detect the ND filter disk position. 10-1 HXC-FB75H/HXC-FB75KC...

  • Page 174: Signal Processing/Transmission System

    (IC213) through the input amplifier (IC209 and IC210), and is transferred to DPR-373 board. This board contains the interface circuits for viewfinder (by I²C communication), handle tally (by I²C communication) and camera adapter (by 700 protocol communication). 10-2 HXC-FB75H/HXC-FB75KC...

  • Page 175: Control System

    This board has the following functions in addition to the audio circuits. • Signal interface between each board • To supply the power from the PS-904A board to each board. • Driver circuit for controlling DC fan revolution • Driver circuit for TRUNK communication and TRUNK connector 10-3 HXC-FB75H/HXC-FB75KC...
  • Page 176 Input microphone signal of intercom from the rear INTERCOM connector (CN003: CN-3859 board) is transferred through the amplifier (IC402) to SY-451 board. The amplifier can change the gain in accordance with three inputs (-60 dBu, -40 dBu, -20 dB). 10-4 HXC-FB75H/HXC-FB75KC...

  • Page 177: Power System

    Also it generates +3.3 V and +1.8 V for OHB block, then supplies power to CMOS image sensors via AU-374 board. When connected the optoelectric composite cable to CCU connector, the voltage value which reached this unit from CCU is sent to PLD (IC701) on SY-451 board. 10-5 HXC-FB75H/HXC-FB75KC...

  • Page 178: Interface Boards

    • TEST OUT connector (BNC: J001) • PROMPTER/GENLOCK connector (BNC: J002) • REMOTE connector (8-pin round type, female: CN002) 10-5-8. CN-3858 Board This board contains a DC power output connector. • DC OUT connector (4-pin round type, female: CN002) 10-6 HXC-FB75H/HXC-FB75KC...

  • Page 179: Cn-3859 Board

    It controls the FET on the PS-904A board and turns on or off the input power. 10-5-16. SW-1696 Board This board contains switches (RET 1/2/3, INTERCOM MIC, CALL), a potentiometer (INTERCOM LEVEL) and a rotary encoder (ASSIGNABLE) on front panel. 10-7 HXC-FB75H/HXC-FB75KC...

  • Page 181: Spare Parts

    Therefore, specified parts should be used in the case 指定の部品を使ってください。 of replacement. 2. Standardization of Parts 2.  部品の共通化 Some repair parts supplied by Sony differ from those ソニーから供給する補修用部品は，セットに使われ used for the unit. These are because of parts common- ているものと異なることがあります。 ality and improvement.

  • Page 182: Exploded Views

    3-603-679-02 s STAINLESS SCREW +B3X10 3-664-213-02 o SCREW, STOPPER 3-664-218-02 o SHOE 3-664-228-01 o PLATE SPRING 4-299-738-01 s BRACKET, PARTITION FRONT 4-299-746-01 s COVER, VF SHOE 4-299-758-01 s COVER, HANDLE 4-299-767-01 s COVER, REAR 4-593-829-01 s CUSHION(F), SEPARATOR 11-2 HXC-FB75H/HXC-FB75KC...

  • Page 183: Handle Block

    3-679-702-01 o CUSION,STOPPER 3-688-754-11 s SPRING 3-688-755-13 s SHOE, ACCESSORY 3-701-507-01 s SET SCREW, DOUBLE POINT,(M3X5) 3-710-024-02 s PACKING, VF 3-711-765-01 s BOLT (M3), HEXAGON SOCKET 3-872-601-01 s TOGGLE SW CUSHION(C) 3-895-622-01 s RING (DIA. 5), O 4-299-756-11 s HANDLE 11-3 HXC-FB75H/HXC-FB75KC...

  • Page 184: Front Block

    3-870-272-02 s CLAMP, CABLE 3-879-494-02 s FINGER (LM), SHIELD 3-965-077-03 s SCREW, SPECIAL (M2) 4-138-681-01 s COVER, SS SW 4-299-727-01 s FILTER ID PLATE 4-299-733-01 s PANEL, FRONT 4-299-766-01 s GASKET (1.5X3), SHIELD 4-567-334-02 s SHEET, SHADE COVER 11-4 HXC-FB75H/HXC-FB75KC...

  • Page 185: Main Block-1

    1-971-369-11 s HARNESS, SUB (DPR) 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW 3-742-419-01 o CLAMP, HARNESS 4-382-854-01 s SCREW (M3X8), P, SW (+) 4-540-388-01 s SHEET T1.5(30X30),RADIATION 4-595-129-01 s PS SHIELD SHEET 4-641-552-01 o SADDLE, LOCK EDGE 4-669-854-01 s CAGE, TOP 11-5 HXC-FB75H/HXC-FB75KC...

  • Page 186: Main Block-2

    3-079-115-01 s TAPE AS 4-299-728-01 s SHEET,SPACER 4-299-731-01 s COVER, TOP 4-559-446-02 s SCREW, +P2.6X5 NEW TRUSTER 4-566-035-01 s SHEET, RADIATION (47X47X2) 4-593-829-01 s CUSHION(F), SEPARATOR 4-654-273-03 s SCREW, NEW TRUSTER(M2) 4-382-854-01 s SCREW (M3X8), P, SW (+) 4-685-114-01 s SPACER,HANDLE 11-6 HXC-FB75H/HXC-FB75KC...

  • Page 187: Main Block-3

    2-640-315-02 o SCREW (M2X5), SMALL, +P, SW 3-679-679-05 s KNOB,VR(AUDIO) 3-692-111-02 s KNOB,RE 3-869-842-01 s CAP,SW 3-870-137-02 s CAP, DROP PROTECTION 3-872-601-01 s TOGGLE SW CUSHION(C) 4-138-733-02 s CUSHION, FRONT SW 4-299-737-01 s BRACKET, FRONT SW PC BOARD 4-299-759-01 s CUSHION (BLIND) 11-7 HXC-FB75H/HXC-FB75KC...

  • Page 188: Main Block-4

    1-971-363-11 s HARNESS, SUB (FRONT MIC) 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW 3-729-072-02 s SCREW, +K (4X8) 3-854-770-02 s WEDGE(D),MOUNTING 4-138-732-01 s CUSHION, LENS CN 7-682-160-09 s SCREW +P 4X6 7-685-535-19 s SCREW +BTP 2.6X10 TYPE2 N-S 11-8 HXC-FB75H/HXC-FB75KC...

  • Page 189: Main Block-5

    1-971-365-11 s HARNESS, SUB (POWER) 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW 3-097-054-13 s CUSHION, FAN (40X10) 3-853-802-01 s CLAMP,REUSE 3-870-137-02 s CAP, DROP PROTECTION 3-965-077-03 s SCREW, SPECIAL (M2) 4-299-748-01 s CAP, D-SUB 4-382-854-01 s SCREW (M3X8), P, SW (+) 11-9 HXC-FB75H/HXC-FB75KC...

  • Page 190: Rear Block-1

    4-299-753-02 s CAP, REAR CN 4-444-729-02 s CAP, NEUTRIK FIBER 4-593-832-01 s BRACKET (N), CONNECTOR FITTING 4-654-273-03 s SCREW, NEW TRUSTER(M2) 7-627-553-38 s SCREW,PRECISION +P 2X3 7-682-248-04 s SCREW +K 3X8 7-685-648-99 s SCREW +BVTP 3X12 TYPE2 TT(B) 11-10 HXC-FB75H/HXC-FB75KC...

  • Page 191: Rear Block-2

    3-079-115-01 s TAPE AS 3-257-200-01 s CLAMP, CORD 3-364-990-12 s SCREW (M3X8) 3-624-455-01 s TUBE,SHIELD 3-626-781-03 s STOPPER 4-098-033-01 s SADDLE WIRE (C) 4-176-603-02 s FOAM(7X2), SHIELD 4-299-736-01 s COVER, BOTTOM 4-559-446-02 s SCREW, +P2.6X5 NEW TRUSTER 4-593-829-01 s CUSHION(F), SEPARATOR 11-11 HXC-FB75H/HXC-FB75KC...

  • Page 192: Rear Block-3

    4-268-315-02 s FOAM (5X1), SHIELD 1014 4-299-728-01 s SHEET,SPACER 1015 4-382-854-01 s SCREW (M3X8), P, SW (+) 1016 4-559-446-02 s SCREW, +P2.6X5 NEW TRUSTER 1017 4-593-829-01 s CUSHION(F), SEPARATOR 1018 4-654-273-03 s SCREW, NEW TRUSTER(M2) 7-621-772-50 s SCREW +B 2X10 11-12 HXC-FB75H/HXC-FB75KC...

  • Page 193: Rear Block-4

    1116 4-299-729-02 s PANEL, REAR CN 1117 4-299-732-01 s SPACER, SLIDE SW 1118 4-559-446-02 s SCREW, +P2.6X5 NEW TRUSTER 1119 4-593-834-01 s CHASSIS, MAIN 7-685-535-19 s SCREW +BTP 2.6X10 TYPE2 N-S 7-685-648-99 s SCREW +BVTP 3X12 TYPE2 TT(B) 11-13 HXC-FB75H/HXC-FB75KC...

  • Page 194: Inside Block-1

    1-971-367-11 s HARNESS, SUB (AU POWER) 1206 2-640-315-02 o SCREW (M2X5), SMALL, +P, SW 1207 4-299-724-01 s RE KNOB 1208 4-299-745-01 s VR KNOB 1209 4-299-747-01 s SUPPORT, PANEL 1210 4-299-760-01 s CUSHION (DROP PROTECTION) 1211 4-382-854-01 s SCREW (M3X8), P, SW (+) 11-14 HXC-FB75H/HXC-FB75KC...

  • Page 195: Inside Block-2

    1305 4-138-682-01 s SW COVER 1306 4-138-737-01 s CUSHION (SMALL) 1307 4-299-735-01 s PANEL, INSIDE 1308 4-299-742-02 s COVER, SW(LED) 1309 4-299-752-01 s CUSHION, SIDEPANEL 1310 4-593-830-01 s COVER, IN SIDE 7-685-648-99 s SCREW +BVTP 3X12 TYPE2 TT(B) 11-15 HXC-FB75H/HXC-FB75KC...

  • Page 196: Inside Block-3

    Inside Block-3 1402 1401 1401 3-868-600-02 s LABEL,FILTER 1402 4-593-831-01 s SHEET (MULTI) 11-16 HXC-FB75H/HXC-FB75KC...

  • Page 197: Supplied Accessories

    3-179-882-01 o SPACER, MICROPHONE (For HXC- FB75KC) 2pcs 3-603-679-02 s STAINLESS SCREW +B3X10 3-624-426-01 s SCREEN,WIND (For HXC-FB75KC) 3-699-048-01 s CAP, MOUNT 3-764-889-01 o CHART, ADJUSTMENT 4-138-677-01 s BRACKET, BELT 4-138-758-01 s CLAMP BELT, CABLE 4-593-324-01 s CD-ROM PACK 11-17 HXC-FB75H/HXC-FB75KC...

  • Page 198: Optional Fixtures

    11-4. Optional Fixtures Part No. SP Description A-8286-346-A s PAD ASSY, SHOULDER 11-18 HXC-FB75H/HXC-FB75KC...

  • Page 199: Diagrams

    VBS_SLEEP,RESET-EXT IC004 92,77 /ENTER EN_ENT VCO802 IC815 S001 27MHz DIN,DOUT AUDIO 1 IN AU1_LINE,AU_48V 12,13 12,13 IC700 (+48V/MIC/LINE) SMBDAT S002 +5.3V TEMPERATURE SHT_SEL,SHT_OFF SMBCLK 9,10 9,10 27CLK-CHIRON SENSOR SHUTTER EXPANDER -5.5V S003 ABB,AWB WHT/BLK +3.6V S004 7-10 RET2_SW 12-1 HXC-FB75H/HXC-FB75KC...
  • Page 200 SEP. IC205 CS_IN (1/2) TRAP RM_TX EXT_VBS_NOSIG FROM IC307 IC308 SY-451 VBS_DEC_D0-7 PH201 84-91 (1/2) 27CLK-VBS_DEC RM_RXP/N 36,37 VBS-27M-CLK DECODER VBS_SDA-SCL VBS_SLEEP,RESET-EXT 92,77 IC107(1/2),Q101 +5.3V IC107(2/2),Q102 -5.5V IC102 +3.6V +3.2V 7-10 +3.2V IC103 +2.5V +2.5V IC104 +1.8V +1.8V 12-2 HXC-FB75H/HXC-FB75KC...
  • Page 201 DEBUG IC103 IC402,403 24.576MHz IC302,303 5,13,9 JTAG 24MHz IC802 DDR_DQ0-15 +1.1V +1.8V +1.1V-PLL PW-ON-XRST PLL1-1/2 DDR_DQ16-31 RESET IC308 +3.2V CN303 DDR2 DEBUG A0-12 IC100-102,Q100 SERIAL 1,2 BUFFER +3.3V +1.8V +3.7V JTAG_PW (+1.8V) +1.8V +1.1V +3.7V 5-10 5-10 +3.7V 12-3 HXC-FB75H/HXC-FB75KC...
  • Page 202 IC301,302 Q301,302 +3.3V +3.3V AU-374 REG. DETECT DC-DC (1/2) +1.8V +1.8V CONVERTER CN-3861 IC151,Q173-176 CN003 CN005 CN002 CN004 DC-DC UNREG UNREG_OUT UNREG_OUT CONVERTER, DC IN CN-3855 EXT DC IN CURRENT DETECT Q165-171, Q156-164 Q181 CN003 BATTERY DC IN 12-4 HXC-FB75H/HXC-FB75KC...

  • Page 203: Frame Wiring

    INTERCOM LEVEL MENU SEL/ENTER CN-3859 SW-1694 CN014 CN004 CN003 GAIN CN001 CN003 SUB HARNESS(SH14) INTERCOM SUB HARNESS OUTPUT/ (XLR 5-pin) (INSIDE SW-MS) INSIDE SW AUTO KNEE CN002 WHITE BAL AUDIO 2 STATUS/CANCEL AUDIO2 INPUT (XLR 3-pin) DISPLAY/MENU SELECT 12-5 HXC-FB75H/HXC-FB75KC...

  • Page 205: Revision History

    Revision History Date History Contents 2016. 6 1st Edition ― 9-976-977-01 HXC-FB75H/HXC-FB75KC...
