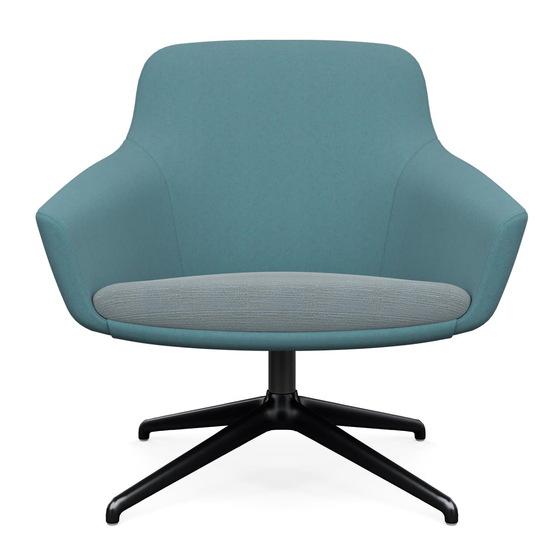

GOBI
ASSEMBLY INSTRUCTIONS
Work mode. Wait mode. Let's-get-it-done mode. Today's open and collaborative spaces
should help you shift spontaneously. And Gobi is the perfect huddle partner. Its sculpted
comfort and modern, easy going design can carry you through the many modes you find
yourself in—so that another day at the office feels like anything but.
C6506 Rev. A
Advertisement
Related Manuals for SitOnit Seating GOBI
Summary of Contents for SitOnit Seating GOBI

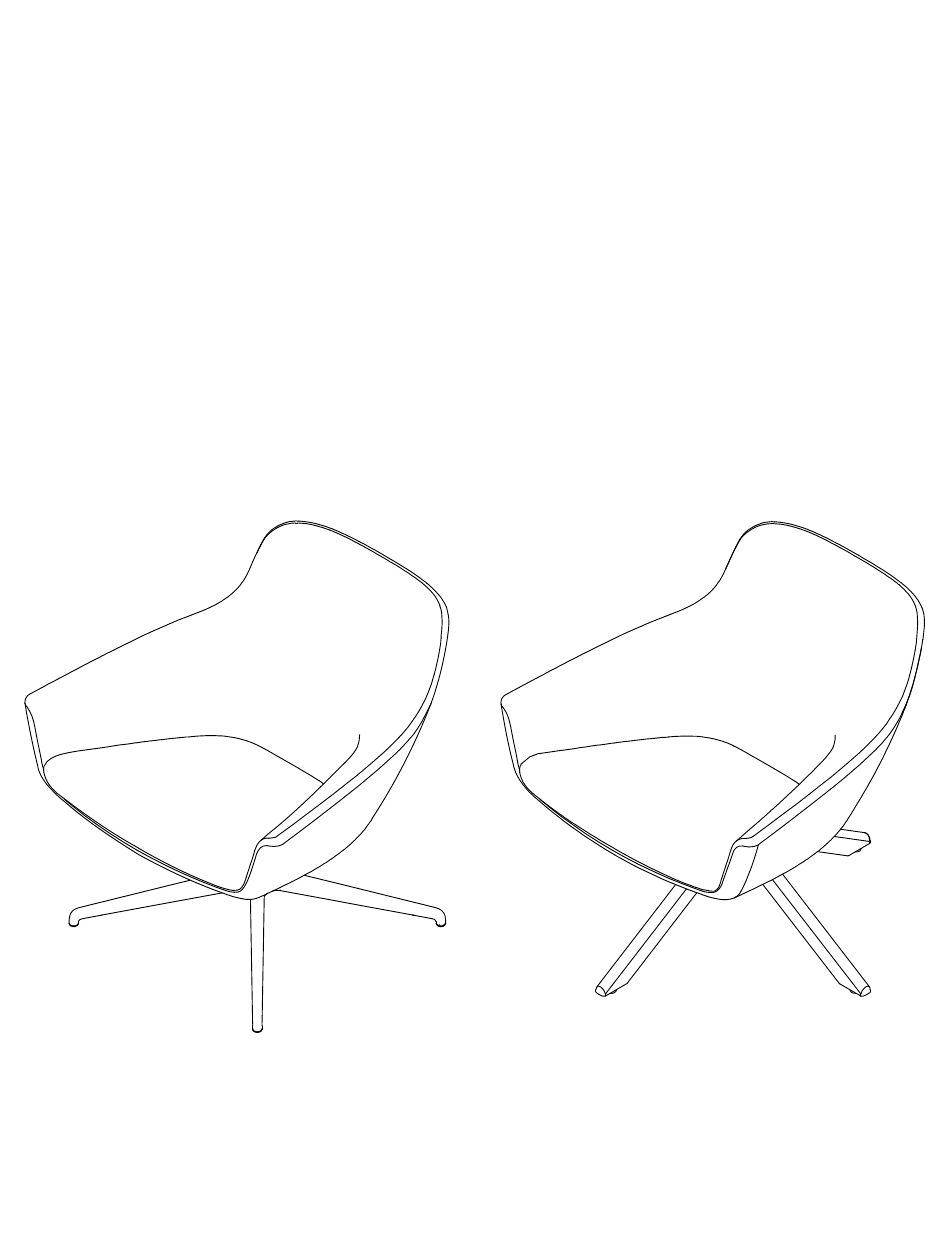

- Page 1 Work mode. Wait mode. Let's-get-it-done mode. Today’s open and collaborative spaces should help you shift spontaneously. And Gobi is the perfect huddle partner. Its sculpted comfort and modern, easy going design can carry you through the many modes you find yourself in—so that another day at the office feels like anything but.
- Page 2 GOBI ASSEMBLY INSTRUCTIONS COMPONENT LIST REQUIRED TOOLS Metal Base Wood Base • Seat Assembly (1) • Seat Assembly (1) • Metal Mechanism (1) • ⁵⁄₁₆" × 1" Screw (2) • Cylinder (1) • ⁵⁄₁₆" × 1 ¼" Screw (2) • Metal Base (1) •...
- Page 3 GOBI ASSEMBLY INSTRUCTIONS METAL BASE OPTION Base Assembly Cylinder Seat Assembly Mechanism SUGGESTED ORIENTATION Base Assembly Mechanism Cylinder Seat Assembly STEPS 1. Slide the cylinder into the center of the base assembly and give it a push to seat it into position. With the seat assembly sitting upside-down on the floor, firmly hold the base assembly, align the top of the cylinder with the mechanism's cylinder mounting hole and push in place until seated.
- Page 4 GOBI ASSEMBLY INSTRUCTIONS WOOD BASE OPTION Base Assembly Base Assembly Spacers Spacers Seat Assembly Seat Assembly ⁵⁄₁₆ " × 1" Screw ⁵⁄₁₆ " × 1 ¼" Screw ⁵⁄₁₆ " Washer Base Assembly Seat Assembly STEPS 1. With the seat assembly sitting upside-down on the floor, place one spacer over each of the front holes on the seat assembly.
