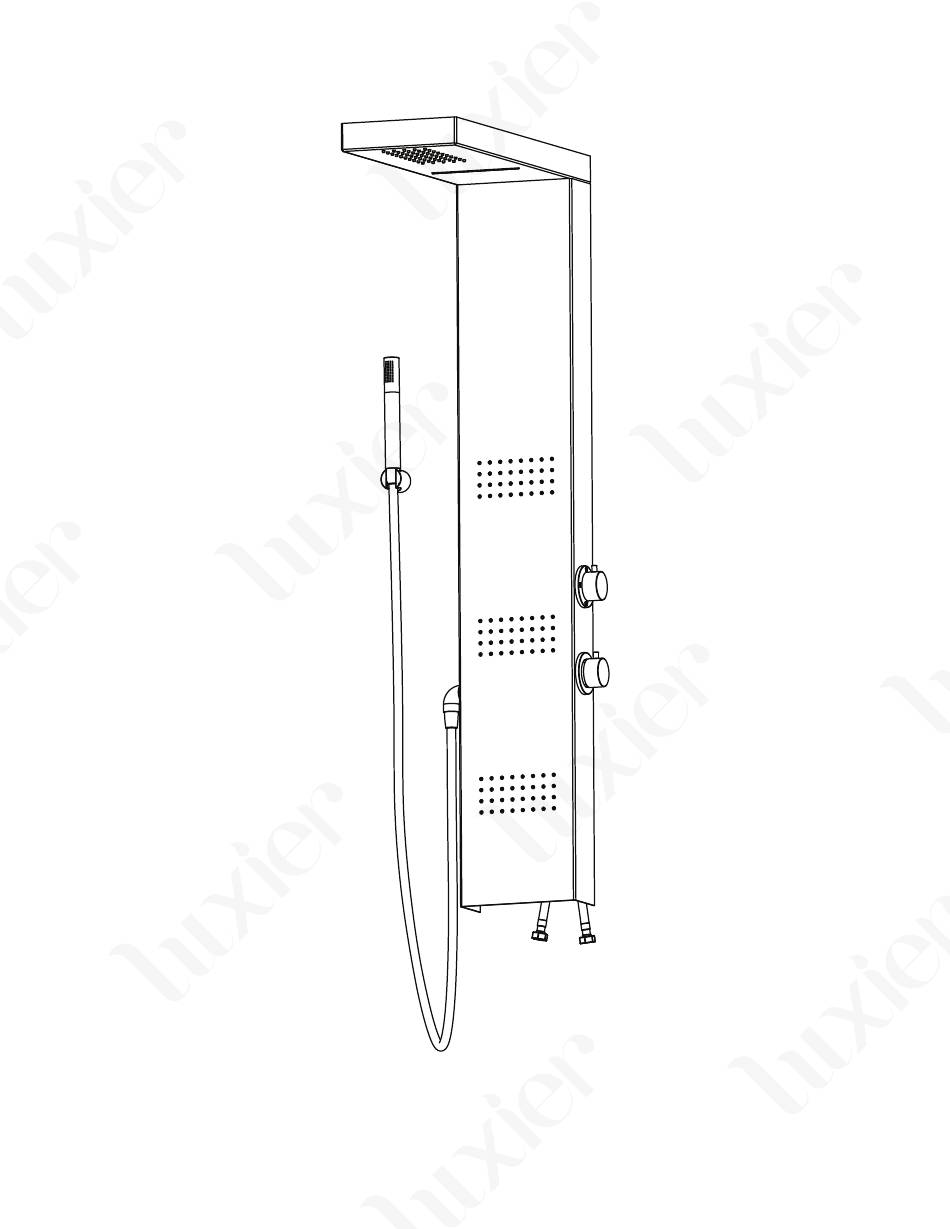

Luxier SP05-SS
Features
- Stunning stylish European inspired design
- Fingerprint resistance finish
- Durable stainless steel frame construction
- Contemporary brass hand shower
- 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower)
- 50 rainfall nozzles
- 96 horizontal spray massage nozzles
Luxier
1
SP05-SS Rev. A3 092016

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP05-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP05-SS

Summary of Contents for Luxier SP05-SS

  • Page 1 - Fingerprint resistance finish - Durable stainless steel frame construction - Contemporary brass hand shower - 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower) - 50 rainfall nozzles - 96 horizontal spray massage nozzles Luxier SP05-SS Rev. A3 092016...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP05-SS Rev. A3 092016...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Luxier SP05-SS Rev. A3 092016...
  • Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI Average Flow Rate: 3.2 gpm at 80 PSI 200mm 508mm 7 7/8” 20” 1,200mm 47.24” 700mm 27.56” 370mm 295mm 14.57” 11.61” 225mm 8.86” 76mm 2.99” *All Measurements are Approximate Luxier SP05-SS Rev. A3 092016...
  • Page 6 08. Locking Nut 09. Water Supply Connector 10. Top Cover Screws 11. Bolts 12. Locking Nuts 13. Screws x 6 14. Mounting Brackets x 2 15. Wall Anchors x 6 16. Main Water Supply Hoses Luxier SP05-SS Rev. A3 092016...

  • Page 7: Installation

    3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 700mm or 27.56”) 700mm 27.56” Luxier SP05-SS Rev. A3 092016...
  • Page 8 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP05-SS Rev. A3 092016...
  • Page 9 (NOTE: Install the rubber washer to prevent leak.) 9. Place the hand shower cradle at desired lo- cation (preferably on the left side of the panel) and follow step 4 when drilling and mounting the cradle. Luxier SP05-SS Rev. A3 092016...

  • Page 10: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP05-SS Rev. A3 092016...
